High Flow Whole House Filtration System

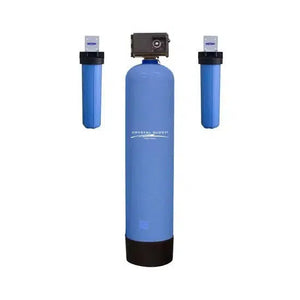

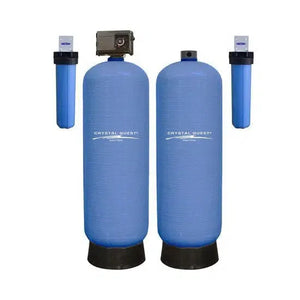

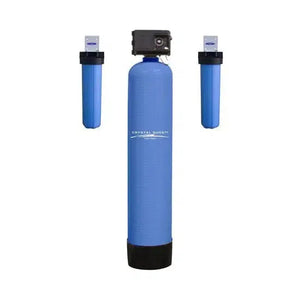

Crystal Quest High Flow Whole House Water Filter - The Ultimate Solution for Large Homes

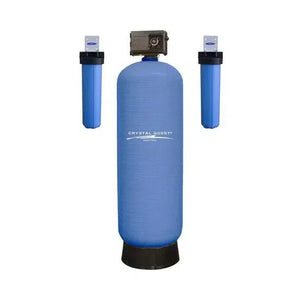

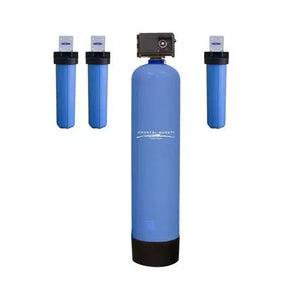

The Crystal Quest High Flow Whole House Water Filter is an advanced solution for larger homes that require higher flow rates. Available in capacities of 15, 20, and 35 GPM, this system ensures clean, healthy water throughout your entire home.

 Designed with eco-friendly practices, it removes a wide range of pollutants, including chlorine, VOCs, and heavy metals, while being BPA-free to ensure a toxin-free environment. The filter offers versatile configurations with options to add water softeners, anti-scale, and oxidation systems for enhanced water quality.

Benefits & Features

Key Benefits:

• High Flow Rates: Perfect for homes with multiple bathrooms, ensuring consistent water pressure and quality.
• Eco-Friendly: Built with sustainable practices, contributing positively to the environment.
• Health-Focused: BPA-free construction ensures a toxin-free water supply.
• Broad Filtration: Removes chlorine, VOCs, heavy metals, and other contaminants.
• Versatile Configurations: Options for adding water softeners, anti-scale, and oxidation systems for superior water quality.
• Ease of Use: Simple installation and low maintenance requirements make it user-friendly.

Features:

• Timer Control Valves: Automates backwash cycles for hassle-free maintenance.
• Heavy-Duty Tanks: Made from composite fiberglass for durability.
• High Flow Distributor: Ensures even distribution of water through the filter.
• Brass Control Valve: Motor-driven and adjustable for optimal performance.
• Flow Controller: Limits backwash flow, saving water and enhancing efficiency.

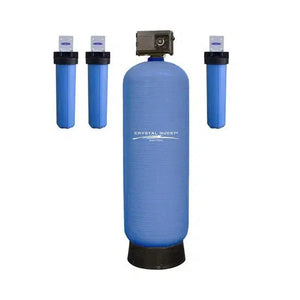

Enhanced SMART Filtration Process

Our SMART Filtration Process ensures superior water quality through a multi-stage system designed to remove a wide range of contaminants and improve water properties.

1. Pre-filtration:

• 20” Sediment Cartridge: Water first flows through a 20-inch sediment cartridge, effectively removing larger particles such as sediment, silt, sand, and dirt.

2. SMART Media Tank:

• Multimedia Blend: The water then enters our SMART Media Tank, which contains a special blend of:
  • Two Types of Coconut-Shell Granulated Activated Carbon (GAC): Standard and Catalytic GAC for enhanced filtration.
  • Eagle Redox Alloys® (9500 & 6500): These alloys work to reduce heavy metals such as lead and mercury.
  • Anion Exchange Resin: This resin further reduces contaminants by exchanging undesirable ions with more beneficial ones.
  • Ceramic and Tourmaline Balls: These elements enhance water quality by maintaining a more alkaline pH.

This blend effectively reduces and removes heavy metals, chlorine, chloramine, pesticides, herbicides, pharmaceutical by-products, and other inorganic substances like petroleum by-products.

3. Post-filtration:

• 20” Solid Carbon Cartridge: In the final stage, water flows through a 20-inch solid carbon cartridge. This step targets and reduces volatile organic compounds (VOCs), any remaining insecticides, pesticides, and industrial solvents, ensuring the water is clean and safe for use.

Key Benefits of the SMART Filtration Process:

• Comprehensive Contaminant Removal: Effectively targets heavy metals, chlorine, chloramine, and various inorganic substances.
• Enhanced Water Quality: Improves taste and maintains a balanced, alkaline pH.
• Multi-Layer Protection: Each filtration stage is designed to tackle specific contaminants, providing multiple layers of protection.



  ---



  Alkalizing (EAGLE) Filtration Process

  Our Alkalizing (EAGLE) Filtration Process is designed to provide superior water quality by removing contaminants and enhancing the water's mineral content and pH level.



  1. Pre-filtration:

  • 20” Sediment Cartridge: Water first flows through a 20-inch sediment cartridge, effectively removing larger particles such as sediment, silt, sand, and dirt.

  2. Post-filtration Carbon Block:

  • 20” Solid Carbon Cartridge: The water then passes through a 20-inch solid carbon cartridge, which removes volatile organic compounds (VOCs), along with any remaining insecticides, pesticides, and industrial solvents.

  3. Ultrafiltration (UF) Membrane:

  • 0.2-Micron UF Membrane: Water flows through a 20-inch ultrafiltration membrane, filtering out even finer particles.
  • Calcium Carbonate Media: The water then travels through a bed of calcium carbonate media, which alkalizes, ionizes, and remineralizes the water, raising its pH level.
  • Ionizer Media: Water is further enhanced as it passes through a blend of natural mineral and infrared balls in our Ionizer media.

  4. Eagle Media Tank:

  • Coconut Shell Granulated Activated Carbon (Arsenic-Free GAC): Finally, water passes through a tank filled with arsenic-free coconut shell granulated activated carbon. This effective adsorbent removes or reduces a wide variety of organic contaminants, bad taste, and odors from drinking water.



  Key Benefits of the Alkalizing (EAGLE) Filtration Process:

  • Comprehensive Contaminant Removal: Targets sediment, VOCs, pesticides, industrial solvents, and various organic contaminants.
  • Enhanced Water Quality: Improves taste and removes bad odors.
  • Alkalization and Remineralization: Alkalizes, ionizes, and remineralizes water, raising the pH level for healthier drinking water.
  • Multi-Layer Protection: Provides multiple filtration stages to ensure the highest quality water.



  This advanced filtration process guarantees that your water is not only clean but also healthier, with added minerals and an improved pH level, making it ideal for all household uses.

Optional Add-Ons:

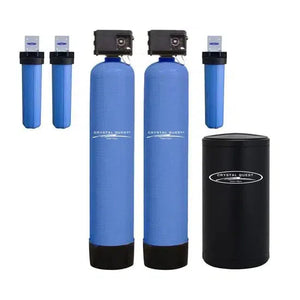

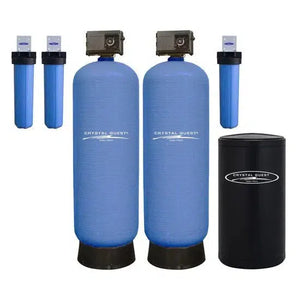

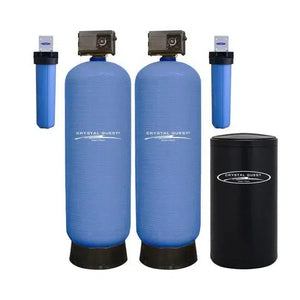

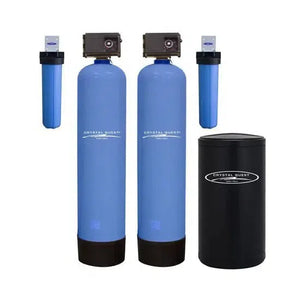

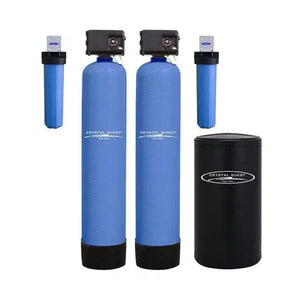

Water Softener (optional)

Water flows through an ion exchange resin and brine water conditioner. Water is softened or conditioned by replacing hard ions like calcium and magnesium with softer sodium or potassium ions. Water softeners must be regenerated** regularly, renewing their ability to remove hardness from water. Time-initiated or solid state softeners regenerate at a fixed time when their softening capacity is predicted to be low. Demand-initiated softeners regenerate automatically when they sense their capacity is low.

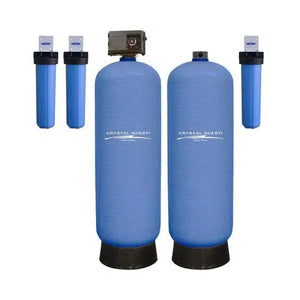

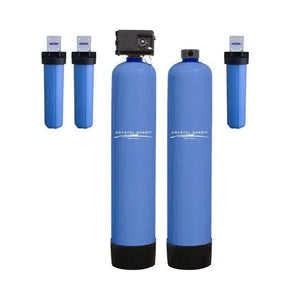

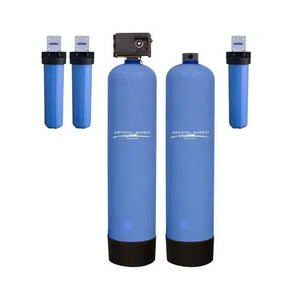

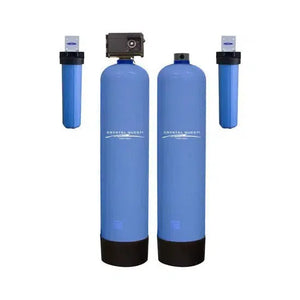

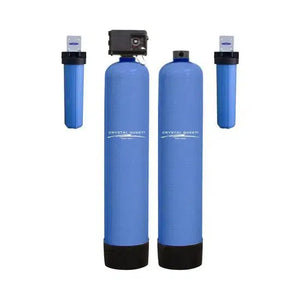

Salt-Free Anti-Scale Water Softener (optional)

Crystal Quest Saltless Water Softener is a new technology which transforms the calcium (hardness) of the water into mechanically stable and heat resistant calcite crystals (nanometer size) which no longer cause lime deposits. The calcium is simply rinsed away.

Calcium (hardness) creates scale in pipes, on appliances and other plumbing surfaces. This leads to higher heating and energy costs and expensive repairs to appliances. Scale can also be a source for bacteria to grow, which can be a health concern in drinking water applications. It also removes the already existing scale from pipes and heat exchanger surfaces (descaling effect) and further protects the system from the future formation of scale (scale protection effect).

When hardness levels appear at 25 gpg (grans per gallon) or higher pre-treatment or additional media may be required.  Please consult a specialist for this condition.

Click here to view Anti-Scale Add-On

Oxidation System (Optional):

The Crystal Quest Water Oxidation Ozone System is as efficient and simple in function as it is in design. Once installed to your Whole House Water Filter, the unit requires no further attention and maintenance. The system is only actively producing ozone during wash cycles and the ozone will naturally dissipate upon completion. Water oxidation is natural a process that does not require the use of harsh chemicals, bleach, and detergents while offering more bacteria-killing power than liquid and powder laundry products.

Click here to view Ozone System Add-On

Specs & Manuals

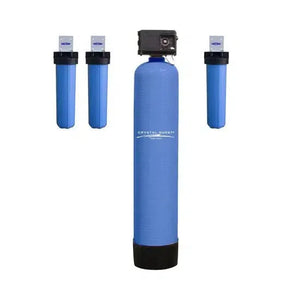

Standalone

Softener

Anti-Scale (Salt-Free Water Conditioner)

Replacement Media

Replacement Cartridges

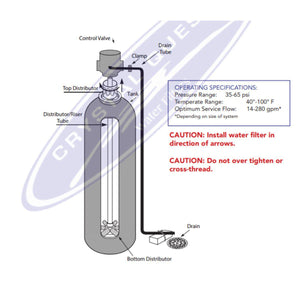

Installation Guide for Crystal Quest High Flow Whole House Water Filter

Step 1: Turn off the main water shutoff valve.

Step 2:Open all plumbing fixtures fed by the filtration system, including all outside faucets, to drain the lines of all water.

Step 3:Cut and remove a section of the main incoming water line near where the system is to be installed. Allow this line to drain thoroughly.

Step 4:If copper piping is used and soldered, perform these procedures away from the valve. This ensures that you are not applying heat or pressure while soldering or tightening the adapters onto the bypass when they are mounted on the valve body itself.

Step 5: Solder a 3” to 5” piece of copper pipe into each of the two pipe adapters away from the valve, and let them cool before threading each one onto the yoke valve.

Step 6:Cut out a section of the main water supply line downstream from the supply shutoff at the position where the water filter is to be installed. Use a pipe cutter to cut the ends of the pipe. Sand the ends to ensure they are square and smooth.

Step 7:Check the plumbing inlet and outlet to ensure the proper flow of water through the unit. Match the plumbing inlet and outlet located on the sides of the valve head.

Step 8: Apply threaded seal tape onto the male adapters for the brass valve when cool and securely tighten them to the valve. This is done before reattaching them to the rear of the valve/meter body assembly.

Step 9:Turn on the water to the unit and check for leaks. Leave all faucets turned off and open a single faucet (such as an outside faucet), letting the water run for 3-5 minutes. This rinses the new resin/media inside the tank, and any particles or color will rinse out through the drain tube.

Frequently Asked Questions (FAQs)

Question: What is the flow rate and how does it benefit large homes?

Answer: The Crystal Quest High Flow Water Filtration System is available in 15, 20, and 35 GPM options, catering specifically to homes with multiple bathrooms and high water demand. This ensures a consistent and robust water flow throughout large households.

Question: What sets the Crystal Quest High Flow System apart in terms of health considerations?

Answer: Our system is free from harmful BPA, offering a toxin-free water environment for you and your family. It prioritizes health and well-being in every room of your home.

Question: Can I customize the Crystal Quest High Flow System to meet specific water quality needs in my large home?

Answer: Absolutely. The system offers versatile configurations, allowing you to add water softeners, anti-scale, and oxidation systems, ensuring that the water in your large home meets the highest quality standards. Not sure what you need? Give us a call (800)-374-2143

Question: What contaminants does the Crystal Quest High Flow Water Filtration System effectively remove?

Answer: The system is designed to effectively remove a broad range of pollutants, including chlorine, VOCs, and heavy metals, ensuring water quality that exceeds expectations in large homes.

Question: Is the installation of the Crystal Quest High Flow System complicated, and how about maintenance?

Answer: Installation is straightforward, and the system is engineered for ease of use. Low maintenance requirements ensure that you can focus on enjoying your water supply without unnecessary hassle. Filters should be replaced every 12-18 months.

Question: What is the purpose of the optional magnet in the Crystal Quest High Flow System?

Answer: The optional magnet provides additional water conditioning, catering to the unique demands of large homes and offering an extra layer of care for your water quality.

Question: Can you explain the SMART Filtration Option and its benefits?

Answer: The SMART Filtration Option features a special blend of coconut-shell GAC, Eagle Redox Alloys®, anion exchange resin, ceramic, and Tourmaline balls. This advanced blend effectively reduces heavy metals, chlorine, chloramine, pesticides, herbicides, pharmaceutical by-products, and maintains a balanced pH.

Question: What does the Alkalizing (EAGLE) Filtration Option offer that makes it suitable for large homes?

Answer: The Alkalizing option provides a comprehensive filtration process, including ultrafiltration (UF) membrane, carbon block, and Eagle Media Tank. It not only removes contaminants but also alkalizes, ionizes, and remineralizes water, ensuring a refreshing and healthful water experience in large homes.

Question: Is the Crystal Quest High Flow System suitable for filtering well water?

Answer: For home situated on a well, it is recommended that customers purchase the EAGLE filtration option to not only remove harmful contaminants, but also remineralize your water to account for healthy minerals commonly found in well water.
