WellMate Pressure Tanks
WellMate Fiberglass Pressure Tanks for Well Water
Pentair WellMate pressure tanks are the fiberglass alternative to steel well tanks: they can't rust, they're roughly half the weight of a comparable steel tank, and they ship pre-charged and ready to plumb in. WellMate tanks are currently available to order by phone or quote — call 800-374-2143 or request a quote for current lead times. Every tank ships free anywhere in the lower 48 with no sales tax outside Minnesota.
Which WellMate tank do I need?
Pressure tank sizing is driven by your pump's flow rate (GPM), not your household size. A common rule is one gallon of drawdown per GPM of pump output at a one-minute minimum run time; pumps over 1 HP or homes with irrigation usually call for an 80- or 120-gallon tank. If you're replacing an existing steel tank, match or exceed its total volume — the WellMate WM-9 (30 gal) and WM-12 (40 gal) are the usual swaps for the 32–36 gallon steel tanks found in most homes. Not sure? Call us and we'll size it from your pump specs.
WellMate models
| Model | Total volume | Typical use |
|---|---|---|
| WellMate WM-4 | 15 gal | Cabins, low-flow pumps |

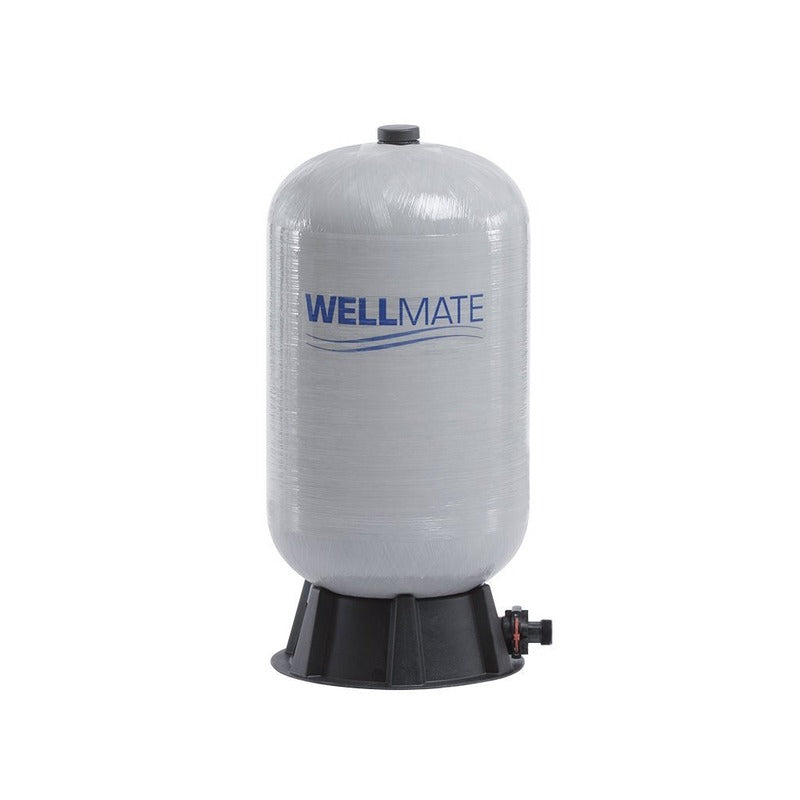

| WellMate WM-6 | 20 gal | Small homes, ½ HP pumps |
| WellMate WM-9 | 30 gal | Most 2–3 bath homes |

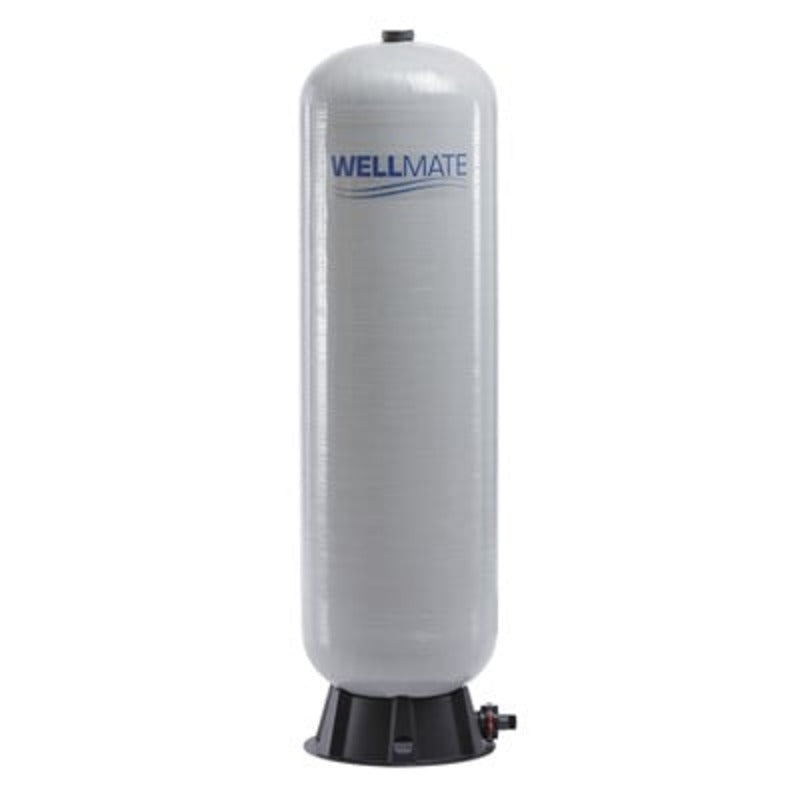

| WellMate WM-12 | 40 gal | 3–4 bath homes, ¾ HP pumps |

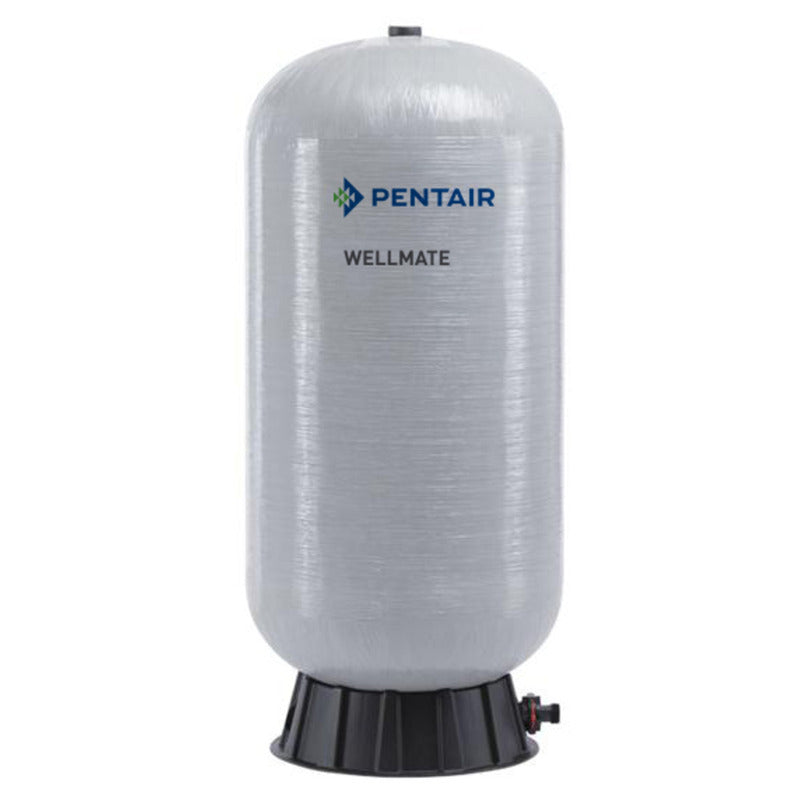

| WellMate WM-14B | 47 gal | Larger homes |

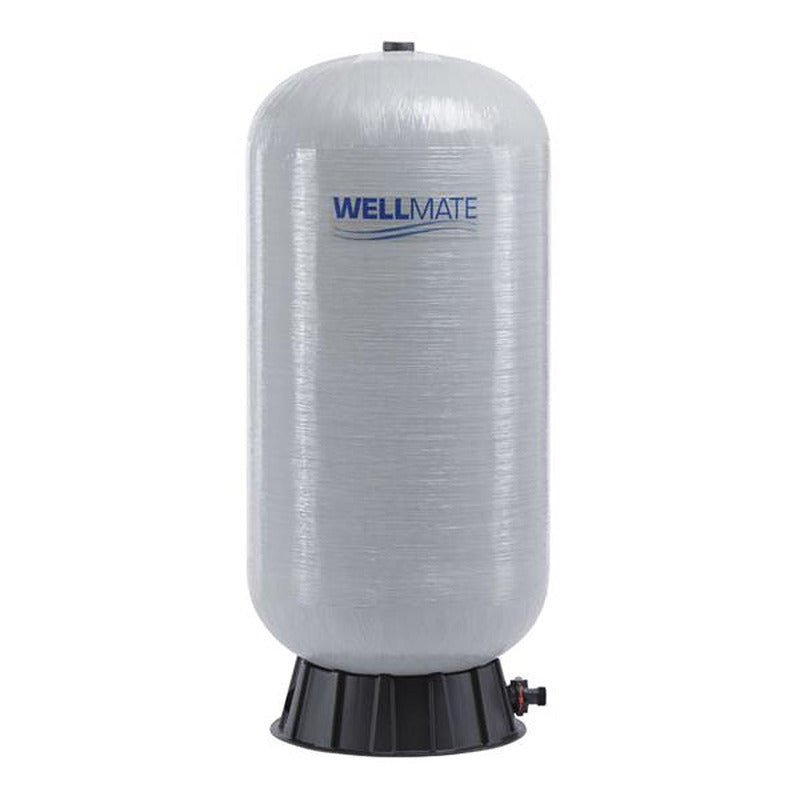

| WellMate WM-23 | 80 gal | 1 HP+ pumps, irrigation |

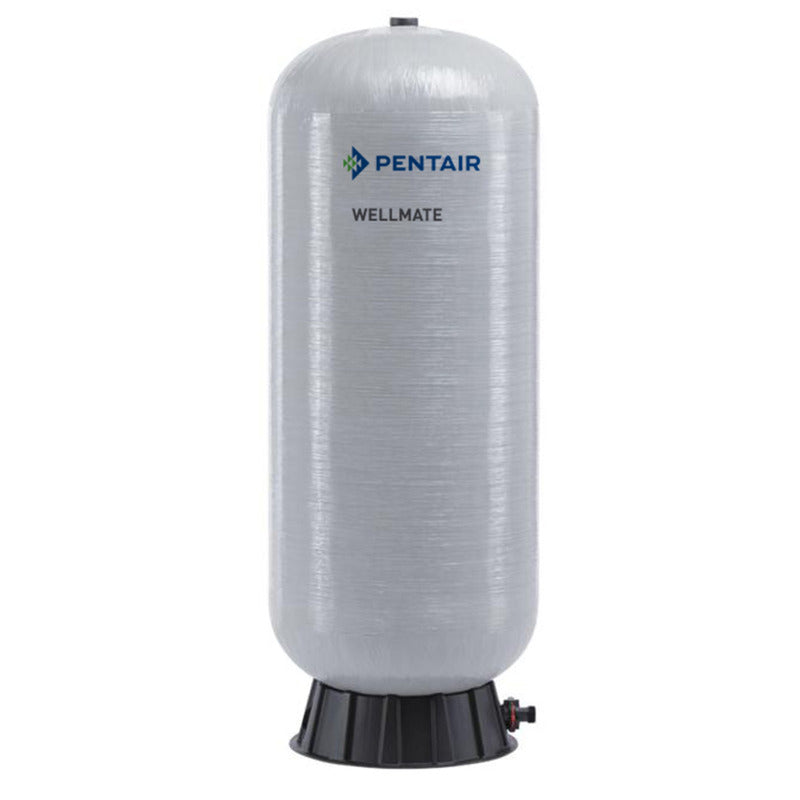

| WellMate WM-25WB | 87 gal | High-demand homes |
| WellMate WM-35WB | 120 gal | Large properties, light commercial |
Why fiberglass over steel?

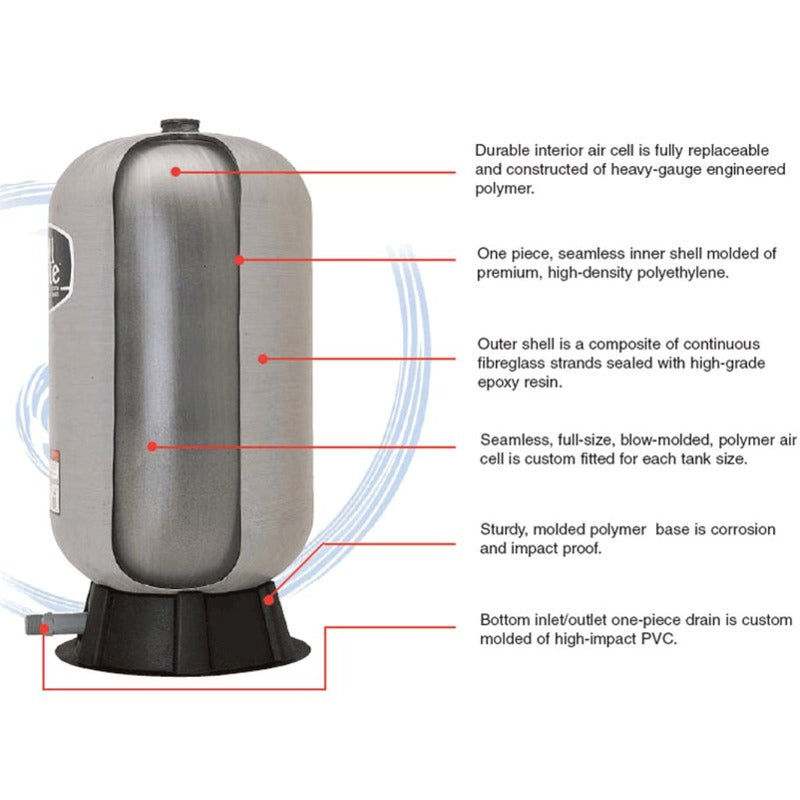

No rust, no condensation sweating, lighter to install, and WellMate's replaceable air cell means a failed bladder doesn't mean a new tank. Need a retention tank for iron or sulfur treatment instead? See our retention tanks, which are in stock and ship next day.
We sell complete WellMate tanks; for replacement air cells and parts, contact us with your model number.
