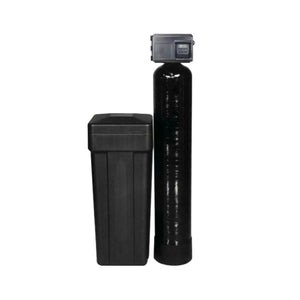

Fleck 2510 AiQ Water Softener
$1,296.90 - $2,143.90$1,167.21 - $1,929.51
- ✓ Fast Free Shipping Within the US
- ✓ 120 Day No Hassle Returns
- ✓ No Sales Tax On All Orders (Outside of MN)

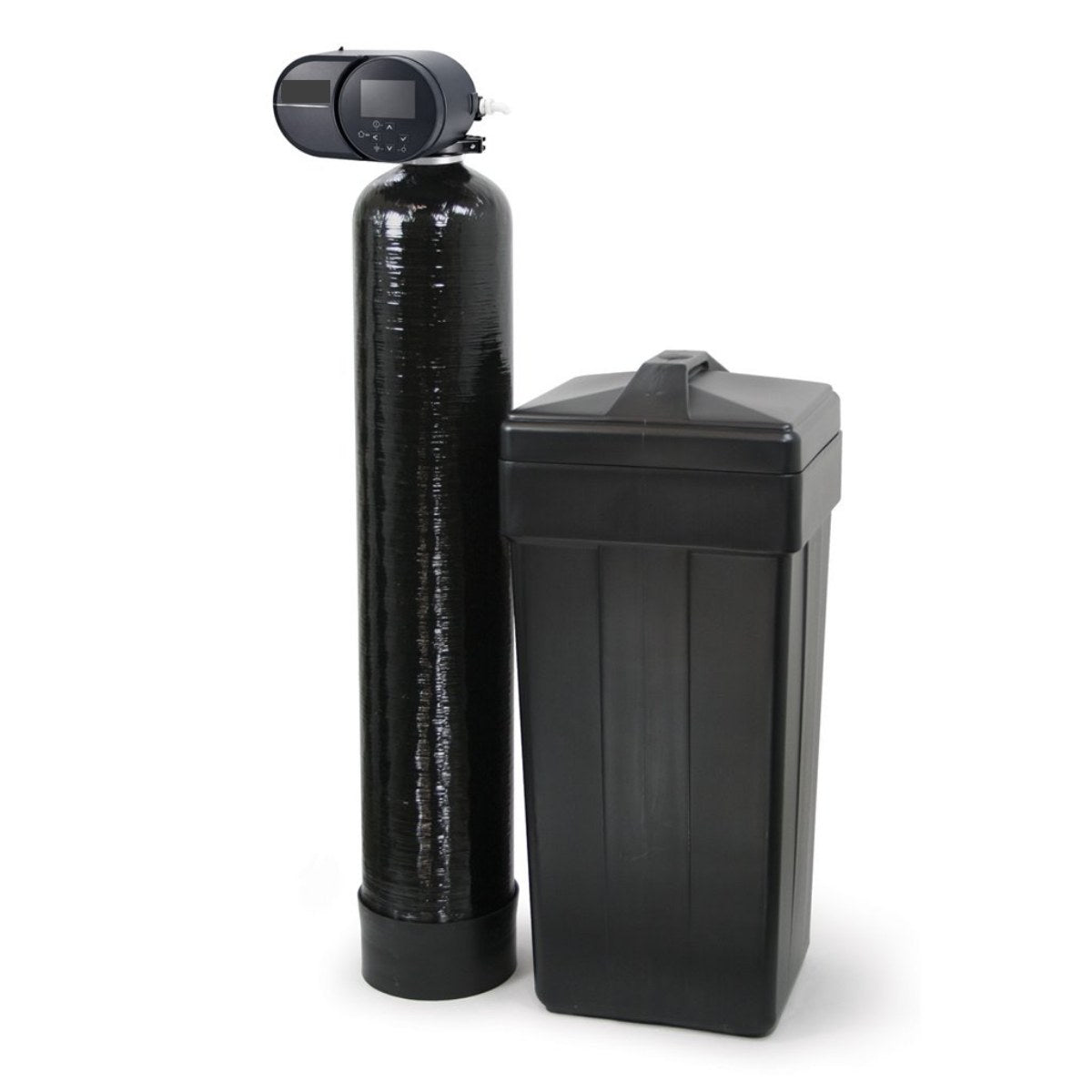

Fleck 2510 AiQ Water Softener
The Fleck 2510 AiQ is Pentair's new-generation metered water softener, built on the proven 2510 valve body with the new AiQ controller and powerhead. It replaces the discontinued Fleck 2510 SXT. It keeps the 2510's high flow (19 GPM continuous, 24 GPM peak) and adds a full-color display, USB-C programming and a modular powerhead that is faster to service.
Sized from 32,000 to 110,000 grains, the 2510 AiQ fits larger homes, well water and high-demand households where a smaller valve would cause a pressure drop.
Warranty: 5 years on the Fleck 2510 AiQ valve head and 10 years on the tanks. See the full Fleck 2510 AiQ spec sheet (PDF).
What's Included
- Fleck 2510 AiQ Metered Control Valve
- Mineral Tank with High-Capacity Softening Resin (pre-loaded on tanks less than 64,000 grains in size)
- Brine Tank with Safety Float
- Bypass Valve and Connection Yoke (3/4" or 1")
- Distributor Tube
- 5 Year Warranty on Valve Head (10 Years on Tanks)
Fleck 2510 AiQ Key Features
- High Flow Valve: 19 GPM continuous (15 psi drop) and 24 GPM peak (25 psi drop) through the valve, with a 4.8 Cv rating.
- Metered, Demand-Initiated Regeneration: The AiQ meter tracks actual water use and regenerates only when capacity is used, saving salt and water compared with a time clock. Softener capacity range: 100–1,000,000 gallons.

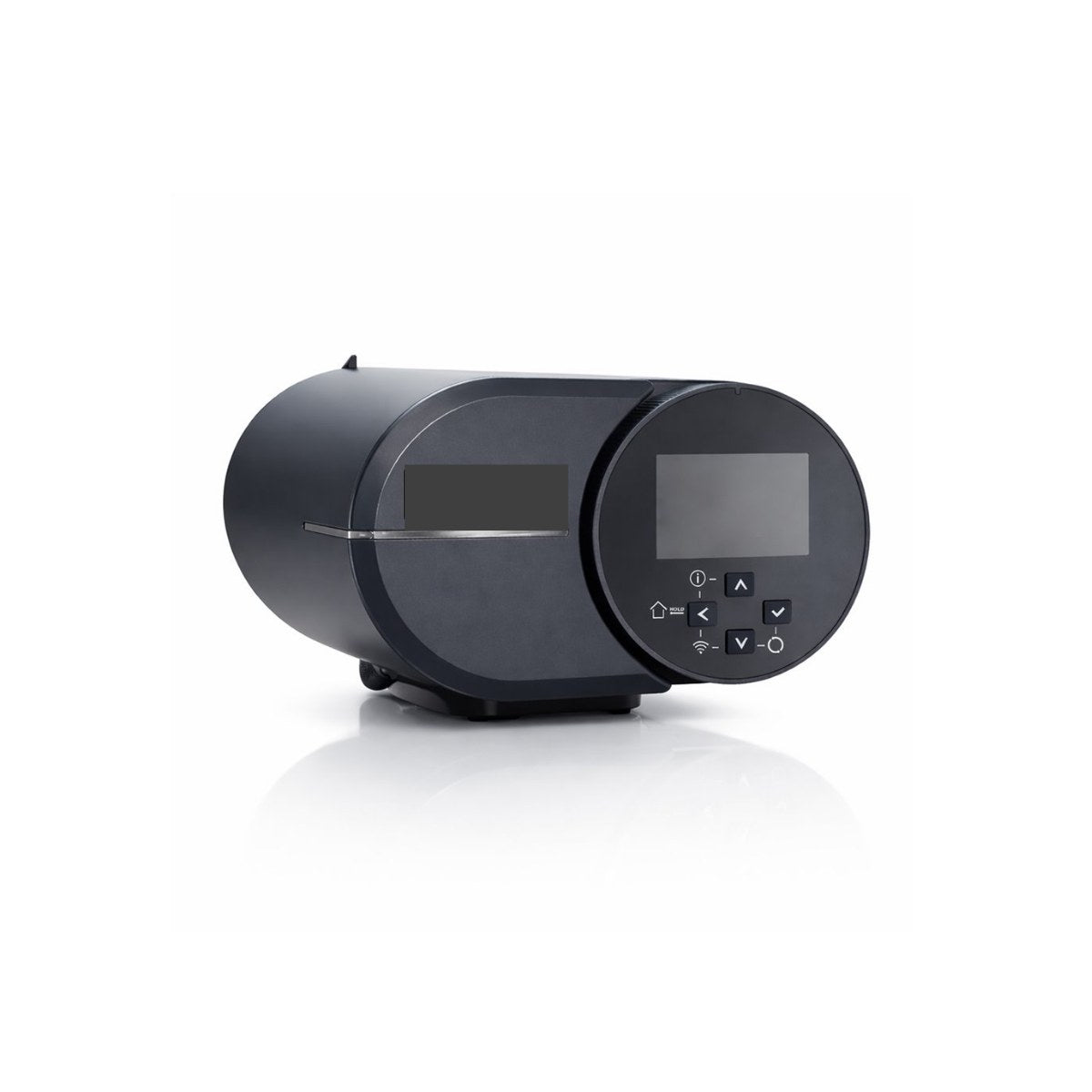

- Full-Color Display with Quick Start Menu: Easy to read, with plain-language menus and fast setup.
- Benchtop Programming: Program the controller before installation.
- USB-C Port: Programming, usage history, software updates, diagnostics and troubleshooting.
- Field-Updateable Controller: Software updates keep the valve current without replacing hardware.
- Wrap-Around Light Bar: System status visible from multiple angles.
- Modular Powerhead: 4-step teardown, easy grip handle and a backplate hook to hold the cover during service.
- NEMA 3R / IP54 Rated: Reliable in garages, basements, outdoors and wet locations.
- Adjustable Cycle Times: 0–240 minutes per cycle.
How the Fleck 2510 AiQ Water Softener Works
Hard water passes through the resin tank, where calcium and magnesium are exchanged for sodium. The AiQ meter counts every gallon. When the programmed capacity is reached, the valve runs a downflow regeneration: backwash, brine draw and slow rinse, rapid rinse, and brine tank refill. Soft water is restored automatically.
Upgrading from a Fleck 2510 SXT?
The 2510 AiQ uses the same 2510 valve body, a 2.5"-8 NPSM tank thread and a 1.05" O.D. distributor, so it fits the same tank and plumbing footprint as the SXT it replaces.
Fleck 2510 AiQ Water Softener Specs
Valve values come from the Pentair Fleck 2510 AiQ spec sheet (PDF). Flow rates are for the valve alone at 50 psi inlet.
| Valve | Fleck 2510 with AiQ Controller and Powerhead |
| Capacity | 32,000; 48,000; 64,000; 80,000; 96,000 and 110,000 grains |
| Valve Material | Fiber-Reinforced Polymer |
| Inlet/Outlet | 3/4" or 1" |
| Continuous Flow | 19 GPM (15 psi drop) |
| Peak Flow | 24 GPM (25 psi drop) |
| Cv (flow at 1 psi drop) | 4.8 |
| Max Backwash | 17 GPM (25 psi drop) |
| Regeneration | Downflow, Metered, Demand-Initiated |
| Cycle Times | Adjustable, 0–240 min per cycle |
| Meter Accuracy | 0.25–15 GPM ±5% (3/4" paddle/turbine) |
| Softener Meter Capacity | 100–1,000,000 gal |
| Brine Valve / Injector | 1600 brine valve (3/8"); 1600 or 1650 injector |
| Mounting Base | 2.5"-8 NPSM |
| Distributor Pilot | 1.05" O.D. |
| Height Above Tank | 7.5" |
| Working Pressure | 20–125 psi |
| Hydrostatic Pressure | 300 psi |
| Water Temperature | 34–110°F |
| Electrical | 110V, 50/60 Hz (24/220V available) |
| Enclosure Rating | NEMA 3R / IP54 |
| Programming | On-Board or USB-C |
| Warranty | 5 Years on Valve Head, 10 Years on Tanks |
Fleck 2510 AiQ FAQ
Is the Fleck 2510 SXT discontinued?
Yes. Pentair has discontinued the Fleck 2510 SXT. The Fleck 2510 AiQ is its direct replacement, using the same 2510 valve body with the new AiQ controller and powerhead.
What's the difference between the Fleck 2510 AiQ and the 2510 SXT?
Both use the 2510 valve body and have the same flow ratings. The AiQ adds a full-color display, USB-C programming and software updates, benchtop programming, a status light bar, a modular powerhead and a NEMA 3R/IP54 rating. Cycle times also run longer: up to 240 minutes, versus 199 on the SXT.
Fleck 2510 vs 5600: which do I need?
The 2510 is the higher-flow valve, at 19 GPM continuous versus 12 GPM on the 5600. Choose the 2510 for larger homes, 3+ bathrooms, 1" plumbing, well water or any system at 64,000 grains or more.
What size Fleck 2510 AiQ water softener do I need?
Multiply the number of people by 75 gallons per day, then by your hardness in grains per gallon. Add 5 gpg for every 1 ppm of iron. Choose a size that covers about 7–10 days between regenerations. Our team can size it for you from a water test.
Is the 2510 AiQ metered?
Yes. It regenerates on demand, based on the gallons actually used, not on a fixed timer.
Can I install it outdoors?
The AiQ powerhead carries a NEMA 3R/IP54 rating for wet and outdoor conditions. The valve is rated for 34–110°F water, so protect it from freezing.
What's the warranty on the Fleck 2510 AiQ?
5 years on the valve head and 10 years on the mineral and brine tanks.
Where is the Fleck 2510 AiQ spec sheet?
Download the Fleck 2510 AiQ spec sheet (PDF) for valve specs, flow rates and dimensions.
