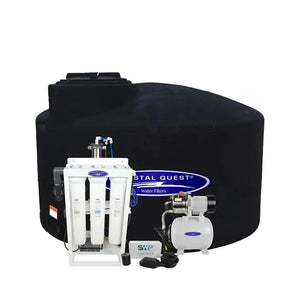

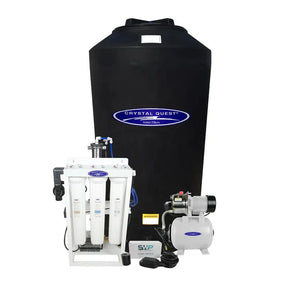

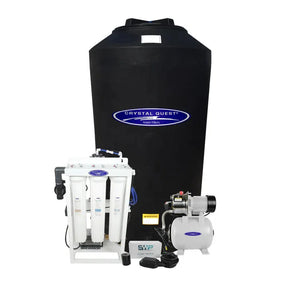

    • Whole House Reverse Osmosis Water Filter System by Crystal Quest


      crystal quest whole house reverse osmosis system

      Designed to Meet the Diverse Needs of Any Household and Water Source


      When you purchase a Crystal Quest Whole House Reverse Osmosis Water System, you are investing in a superior filtration system ready to tackle contaminants in both well and municipal water sources.

      This system eliminates up to 99% of all pollutants, including challenging contaminants such as iron, manganese, fluoride, and arsenic, which are frequently found in well water.

      But Crystal Quest doesn't stop there; this system goes one step further with its net zero water waste.

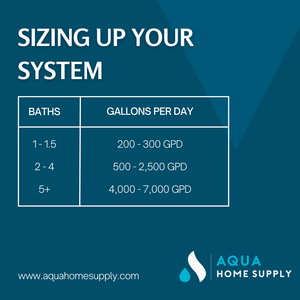

      whole house reverse osmosis water filtration system sizing chart


      What Sets Crystal Quest's Home RO Systems Apart?

      • Removes up to 99% of contaminants, ensuring extremely pure water.
      • Compact, Space Saving
      • Easily Accessible Components
      • Expandable and Lightweight Design
      • Fully Equipped and Customizable
      • Low Operational Costs
      • Low Cost of Maintenance
      • Easy Maintenance and servicing
      • Factory Tested and Preserved
      • CE Compliant
      • Made in the USA
      • Scientific World Products ISO Certified Components


      Crystal Quest RO ISO Certified

      Factory Tested with Guaranteed Satisfaction


      Each whole house reverse osmosis water system is assembled and tested in-house before shipping, guaranteeing immediate operational use upon arrival.

      The installation process requires minimal plumbing, making it easy to install and maintain. With regular maintenance, including changing pre-filters and membranes, this system can last for 15-20 years, creating a long-lasting investment for your family and home.

      Save Time, Money, & Space


      Worry Free Maintenance: With an efficient prefiltration system, the life of your membranes is extended, reducing the need for frequent replacements.

        Cost Savings: Say goodbye to monthly filter replacements and wasteful system flushes. Crystal Quest's RO system is designed to save you money in the long run, without compromising on performance.

          Perfect for Tight Quarters: This system's revolutionary modular design is not only highly economical, but it also requires little operational maintenance.




            What Does the Standalone Whole House Reverse Osmosis Water Filtration System Come With?

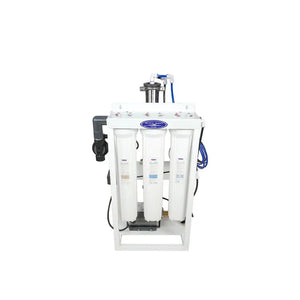

            RO System: A commercial-grade RO System ranging from 200 to 7,000 GPD.

            Pre-Filter: Every system is equipped with prefiltration to extend the life of the membranes.

            RO Membranes: Used to separate water molecules from other substances, such as dissolved minerals, contaminants, and impurities.

            System Literature: Installation manual, product manual, and schematics.

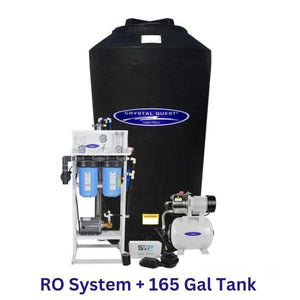

                crystal quest ro system

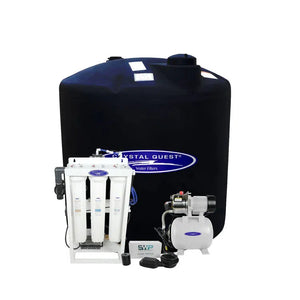

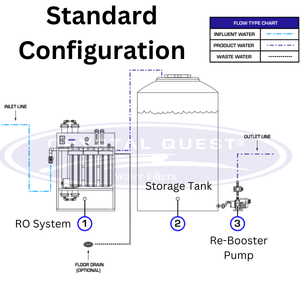

                What Is Included With the Whole House Reverse Osmosis Water System Kit?



                The RO System - A commercial-grade RO System ranging from 200 to 7,000 GPD. Every system is equipped with prefiltration to extend the life of the membranes.

                Storage Tank - Water is stored in an atmospheric water storage tank (165, 220, or 550 gallons) that is sized depending on your system, needs, and space.

                Re-Boosting Pump - As water is used within your home, it will be pumped from the tank as needed.

                Float Switches - Used within your water tank, this regulates when your RO System needs to cut on and off depending on the water level in your tank.

                Pre-filtration cartridge & RO membranes

                Installationmanual, product manual, and schematics.

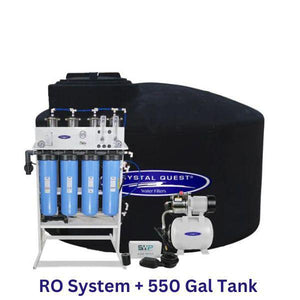

                  crystal quest reverse osmosis storage tank components

                  Storage Tank Sizes:

                  System Tank Size
                  200-300 GPD 165 Gallons (31"D x 56" H)
                  500-2,500 GPD 220 Gallons (42"D x 44" H)
                  4,000-7,000 GPD 550 Gallons (67"D x 44" H)



                  Is the Remineralizer Add-On Filter Necessary?


                  Reverse osmosis systems, including the Crystal Quest Whole House RO System, are highly effective in removing a wide range of contaminants from water, including minerals.

                  While this filtration process improves the overall purity of the water, it also removes essential minerals that are beneficial for our health.

                  By incorporating a remineralizing filter into the system, the water passing through the RO system can be enriched with minerals such as calcium, magnesium, and potassium. These minerals are important for various bodily functions and essential for maintaining good health.

                  Remineralizer Sizing

                  300 - 2500 GPD Single Big Blue Alkalizer/Remineralizer
                  4000 - 5000 GPD Remineralizer System (1.5 cubic feet)
                  7000 GPD Remineralizer System (2.0 cubic feet)


                  Deciding on GPD

                  Flow Rate Bathrooms
                  200-300 GPD 1 - 1.5
                  500-2,500 GPD 1 - 4
                  4,000-7,000 GPD 5+



                  What Happens After I Purchase my Whole Home RO System?


                  Our team will get to work right away on getting your system shipped directly to your home or business. Larger systems with storage tanks require freight shipping and we will coordinate your delivery directly with you.


                  At no point will you be responsible for any shipping, delivery, or handling costs - we've got you covered!


                  What Do Our Customers Think?


                  ⭐⭐⭐⭐⭐


                  We had a tough time figuring out what system would be best for our home situated on a well. The team at Aqua Home Supply provided an impeccable service, tailoring the system to our exact needs and giving us a great deal on the price. The difference in water purity is incredible. I highly recommend their service and expertise!



                  Henry, W. - Baldwin, MI


                  ⭐⭐⭐⭐⭐


                  I'm blown away by the quality of our new house-wide RO purification system. Working with Aqua Home Supply was a breeze; they customized the setup to address our specific water issues, and the flexible pricing options were a godsend. The improvement in our water quality is like night and day. Heartfelt thanks to the team for their exceptional support and expertise!



                  David K. - South Lake Tahoe, CA


                  ⭐⭐⭐⭐⭐


                  I'm amazed by our new full-house osmosis system. Aqua Supply really listened to what we needed and offered a customized system that fits our lifestyle perfectly. They were flexible with the pricing, making it an affordable luxury. Our water quality is now outstanding. Big thanks to Aqua Home Supply for their dedication and excellent service!



                  Linda F. - Lakeport, FL








                  Specs & Manuals

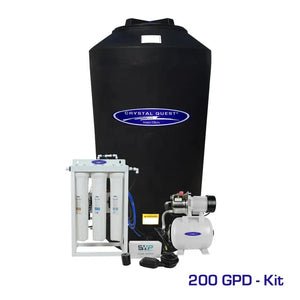

                  200 GPD Specifications

                  Standalone Pump Kit
                  Dimensions 7" x 22" x 31" 7" x 22" x 31"
                  Voltage 120/220 V 120/220 V
                  Hertz 60 60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 3/8" 3/8"
                  Product Connection 3/8" 3/8"
                  Waste Connection 1/4" 1/4"
                  Recovery 33% - 50% 33% - 50%
                  Storage Tank Size N/A 165 Gallons (31"D x 56" H)

                  300-400 GPD Specifications

                  Standalone Pump Kit
                  Dimensions 7" x 28" x 33" 7" x 28" x 33"
                  Voltage 120/220 V 120/220 V
                  Hertz 60 60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 3/8" 3/8"
                  Product Connection 3/8" 3/8"
                  Waste Connection 1/4" 1/4"
                  Recovery 33% - 50% 33% - 50%
                  Storage Tank Size N/A 165 Gallons (31"D x 56" H)

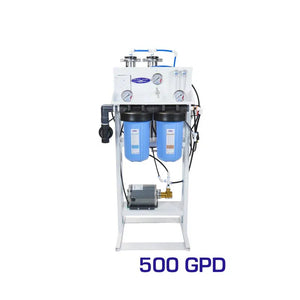

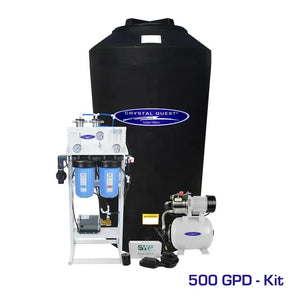

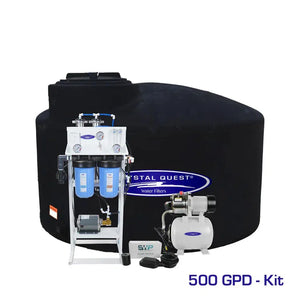

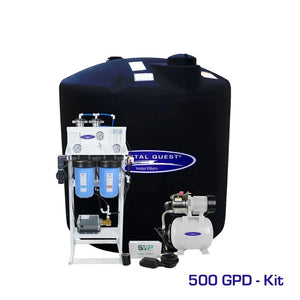

                  500 GPD Specifications

                  Standalone Pump Kit
                  Dimensions 14" x 20" x 27" 14" x 20" x 27"
                  Voltage 120/220 V 120/220 V
                  Hertz 50/60 50/60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 3/4" 3/4"
                  Product Connection 3/8" 3/8"
                  Waste Connection 3/8" 3/8"
                  Recovery 33% - 50% 33% - 50%
                  Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                  Maximum Feed (gpm) 3 gpm 3 gpm
                  Storage Tank Size N/A 220 Gallons (42"D x 44" H)

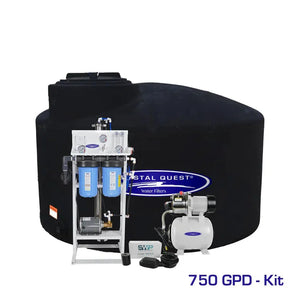

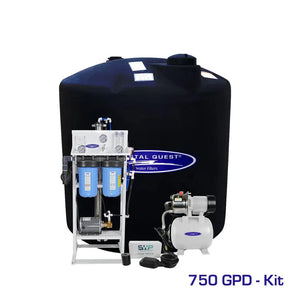

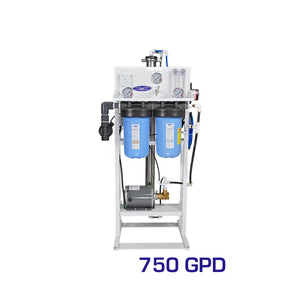

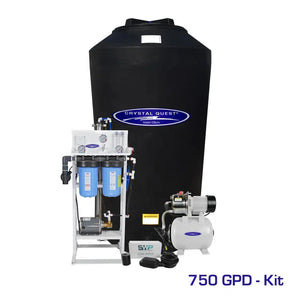

                  750 GPD Specifications

                  Standalone Pump Kit
                  Dimensions 14" x 20" x 27" 14" x 20" x 27"
                  Voltage 120/220 V 120/220 V
                  Hertz 50/60 50/60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 3/4" 3/4"
                  Product Connection 3/8" 3/8"
                  Waste Connection 3/8" 3/8"
                  Recovery 33% - 50% 33% - 50%
                  Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                  Maximum Feed (gpm) 3 gpm 3 gpm
                  Storage Tank Size N/A 220 Gallons (42"D x 44" H)

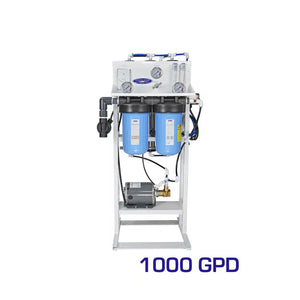

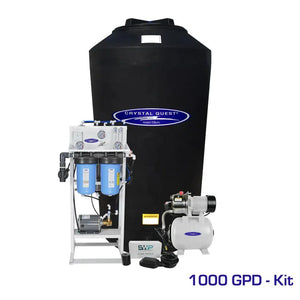

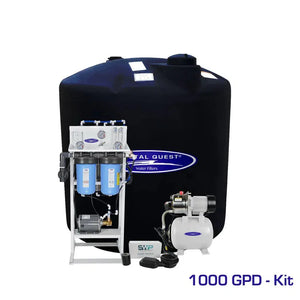

                  1,000 GPM Specifications


                  Standalone Pump Kit
                  Dimensions 14" x 20" x 27" 14" x 20" x 27"
                  Voltage 120/220 V 120/220 V
                  Hertz 50/60 50/60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 1" 1"
                  Product Connection 3/8" 3/8"
                  Waste Connection 3/8" 3/8"
                  Recovery 33% - 50% 33% - 50%
                  Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                  Maximum Feed (gpm) 3 gpm 3 gpm
                  Storage Tank Size N/A 220 Gallons (42"D x 44" H)

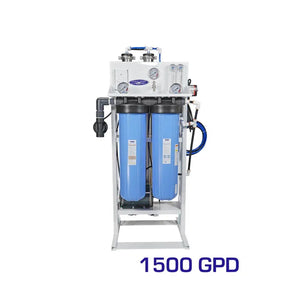

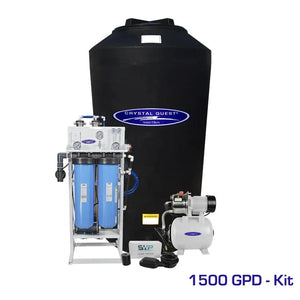

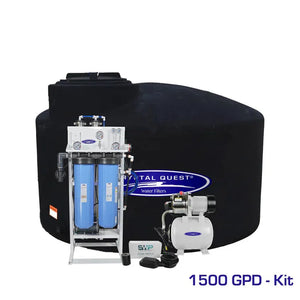

                  1,500 GPD Specifications

                  Standalone Pump Kit
                  Dimensions 14" x 20" x 46" 14" x 20" x 46"
                  Voltage 120/220 V 120/220 V
                  Hertz 50/60 50/60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 1" 1"
                  Product Connection 3/8" 3/8"
                  Waste Connection 3/8"" 3/8"
                  Recovery 33% - 50% 33% - 50%
                  Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                  Maximum Feed (gpm) 5 gpm 5 gpm
                  Storage Tank Size N/A 220 Gallons (42"D x 44" H)

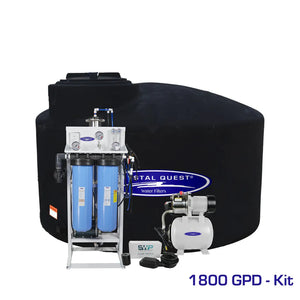

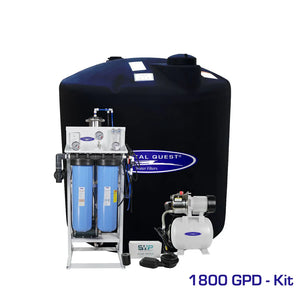

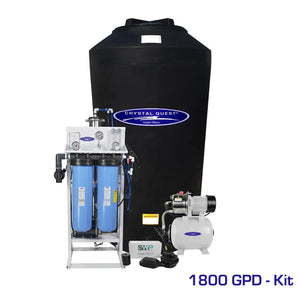

                  1,800 GPD Specifications


                  Standalone Pump Kit
                  Dimensions 14" x 20" x 46" 14" x 20" x 46"
                  Voltage 120/220 V 120/220 V
                  Hertz 50/60 50/60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 1" 1"
                  Product Connection 3/8" 3/8"
                  Waste Connection 3/8" 3/8"
                  Recovery 33% - 50% 33% - 50%
                  Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                  Maximum Feed (gpm) 5 gpm 5 gpm
                  Storage Tank Size N/A 220 Gallons (42"D x 44" H)

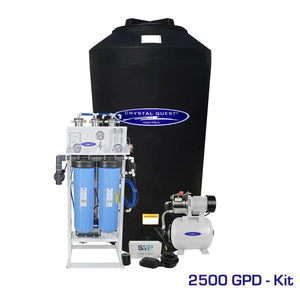

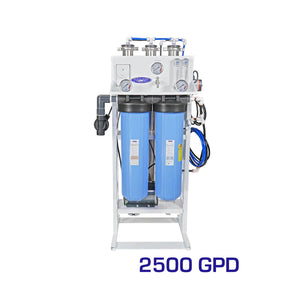

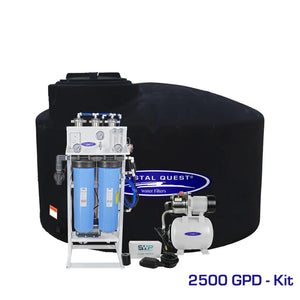

                  2,500 GPD Specifications

                  Standalone Pump Kit
                  Dimensions 14" x 20" x 46" 14" x 20" x 46"
                  Voltage 120/220 V 120/220 V
                  Hertz 50/60 50/60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 1" 1"
                  Product Connection 3/8" 3/8"
                  Waste Connection 3/8" 3/8"
                  Recovery 33% - 50% 33% - 50%
                  Minimum Feed (gpm) 4 gpm 4 gpm
                  Maximum Feed (gpm) 10 gpm 10 gpm
                  Storage Tank Size N/A 220 Gallons (42"D x 44" H)

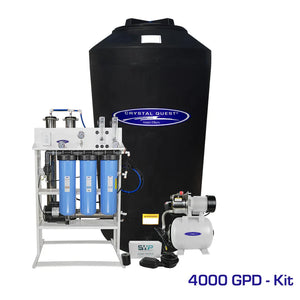

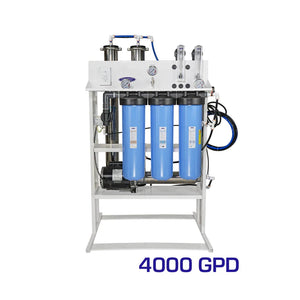

                  4,000 GPD Specifications


                  Standalone Pump Kit
                  Dimensions 30" x 38" x 47" 30" x 38" x 47"
                  Voltage 120/220 V 120/220 V
                  Hertz 60 60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 1" 1"
                  Product Connection 1/2" 1/2"
                  Waste Connection 1/2" 1/2"
                  Recovery 33% - 50% 33% - 50%
                  Minimum Feed (gpm) 6 gpm 6 gpm
                  Storage Tank Size N/A 550 Gallons (67"D x 44" H)

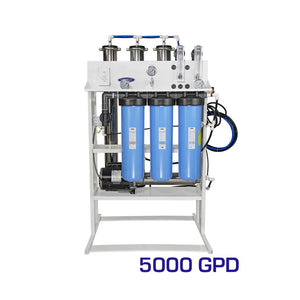

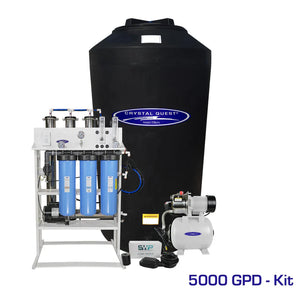

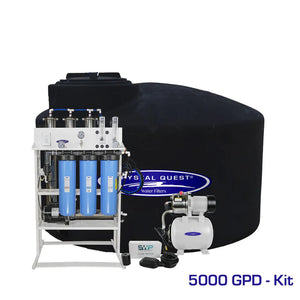

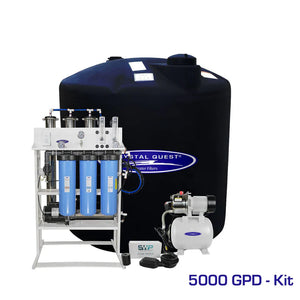

                  5,000 GPD Specifications


                  Standalone Pump Kit
                  Dimensions 30" x 38" x 47" 30" x 38" x 47"
                  Voltage 120/220 V 120/220 V
                  Hertz 60 60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 1" 1"
                  Product Connection 1/2" 1/2"
                  Waste Connection 1/2" 1/2"
                  Recovery 33% - 50% 33% - 50%
                  Minimum Feed (gpm) 7 gpm 7 gpm
                  Storage Tank Size N/A 550 Gallons (67"D x 44" H)

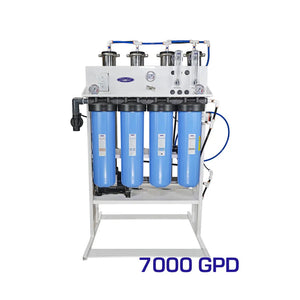

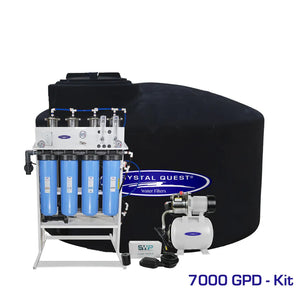

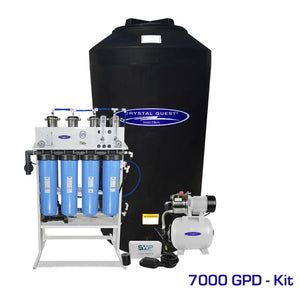

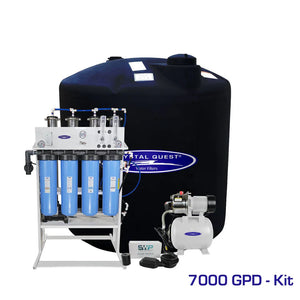

                  7,000 GPD Specifications


                  Standalone Pump Kit
                  Dimensions 30" x 38" x 47" 30" x 38" x 47"
                  Voltage 120/220 V 120/220 V
                  Hertz 60 60
                  Pressure 150 PSI 150 PSI
                  Pump HP N/A 1.5 HP
                  Feed Connection 1" 1"
                  Product Connection 1/2" 1/2"
                  Waste Connection 1/2" 1/2"
                  Recovery 33% - 50% 33% - 50%
                  Minimum Feed (gpm) 10 gpm 10 gpm
                  Storage Tank Size N/A 550 Gallons (67"D x 44" H)



                  Crystal Quest Whole House Reverse Osmosis System Manuals

                   Manuals

                  200-300 GPD Reverse Osmosis Manual

                  500-2500 GPD Reverse Osmosis Manual

                  4000-7000 GPD Reverse Osmosis Manual

                  200 GPD Reverse Osmosis Schematic

                  500 GPD Reverse Osmosis Schematic

                  1500 GPD Reverse Osmosis Schematic

                  2500 GPD Reverse Osmosis Schematic

                  4000 GPD Reverse Osmosis Schematic

                  5000 GPD Reverse Osmosis Schematic

                  7000 GPD Reverse Osmosis Schematic

                  2500 GPD Softener RO Schematic

                  1500 GPD RO Iron UV Softener Schematic

                  500 GPD RO Tank UV Softener Schematic

                  4000 GPD RO Tank Schematic

                  5000 GPD RO Softener CN Schematic

                  7000 GPD RO Softener Schematic













                • Proud to Offer Fast Free Shipping:

                  • Average Delivery Window is 2 - 5 Days From Purchase
                  • Tracking Information is Provided to Email on File Within 48 Hours of Purchase
                  • Larger Whole Home Filtration Systems & Water Coolers Require Freight Shipping & Have Longer Processing/Delivery Windows

                  Full Shipping Policy

                • Five Year Industry-Leading Warranty Coverage

                  Aqua Home Supply ("we," "our," or "us") warrants to the original purchaser ("you" or "your") of the product ("Product") that the Product is free from defects in material and workmanship under normal use and service for a period of five (5) years from the date of purchase. This warranty is non-transferable and extends only to the original purchaser.

                  What is Covered

                  This five-year limited warranty covers manufacturing defects in materials and workmanship. Aqua Home Supply will, at its discretion, either repair or replace any Product found to be defective under normal use during the warranty period. The repaired or replacement Product will be covered for the remaining duration of the original warranty.

                  What is Not Covered

                  This warranty does not cover:

                  1. Damage resulting from misuse, abuse, negligence, accidents, or improper handling or installation.
                  2. Damage caused by unauthorized repairs or modifications.
                  3. Normal wear and tear, including cosmetic damage, scratches, dents, or blemishes.
                  4. Consumable parts, such as batteries or accessories, unless otherwise stated.
                  5. Products with removed or altered serial numbers.
                  6. Products purchased from unauthorized sellers.

                  Obtaining Warranty Service

                  If you believe that your Product is covered by this warranty, please contact our customer support team at info@aquahomesupply.com or visit our website at www.aquahomesupply.com for instructions on how to obtain warranty service. You may be required to provide proof of purchase, such as a dated sales receipt.

                  Limitation of Liability

                  TO THE EXTENT PERMITTED BY APPLICABLE LAW, AQUA HOME SUPPLY SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, OR SPECIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, LOSS OF DATA, LOSS OF USE OF THE PRODUCT, OR ANY ASSOCIATED EQUIPMENT OR PROPERTY, COST OF CAPITAL, COST OF SUBSTITUTE OR REPLACEMENT EQUIPMENT, FACILITIES, DOWNTIME, CLAIMS OF THIRD PARTIES, AND INJURY TO PROPERTY. TO THE EXTENT PERMITTED BY APPLICABLE LAW, AQUA HOME SUPPLY'S LIABILITY SHALL BE LIMITED TO THE PURCHASE PRICE PAID FOR THE PRODUCT.

                  Important Notice

                  Please retain your proof of purchase, such as a sales receipt or invoice, for warranty claims.

                  This five-year limited warranty statement constitutes the entire warranty for the Product and supersedes all other warranties and representations, whether oral or written. No other warranties, whether expressed or implied, including but not limited to any implied warranties of merchantability or fitness for a particular purpose, apply to this Product.

                  Aqua Home Supply

                • Spec SheetUser Manual

                  15000 GPM

                  20000 GPM

                  30000 GPM

                  40000 GPM

                  50000 GPM

                  Parts and Components:

                  Crystal Quest C-150 Microprocessor Controller

                  Crystal Quest C-200 Microprocessor Controller


                Whole House Reverse Osmosis Water Filter System by Crystal Quest


                crystal quest whole house reverse osmosis system

                Designed to Meet the Diverse Needs of Any Household and Water Source


                When you purchase a Crystal Quest Whole House Reverse Osmosis Water System, you are investing in a superior filtration system ready to tackle contaminants in both well and municipal water sources.

                This system eliminates up to 99% of all pollutants, including challenging contaminants such as iron, manganese, fluoride, and arsenic, which are frequently found in well water.

                But Crystal Quest doesn't stop there; this system goes one step further with its net zero water waste.

                whole house reverse osmosis water filtration system sizing chart


                What Sets Crystal Quest's Home RO Systems Apart?

                • Removes up to 99% of contaminants, ensuring extremely pure water.
                • Compact, Space Saving
                • Easily Accessible Components
                • Expandable and Lightweight Design
                • Fully Equipped and Customizable
                • Low Operational Costs
                • Low Cost of Maintenance
                • Easy Maintenance and servicing
                • Factory Tested and Preserved
                • CE Compliant
                • Made in the USA
                • Scientific World Products ISO Certified Components


                Crystal Quest RO ISO Certified

                Factory Tested with Guaranteed Satisfaction


                Each whole house reverse osmosis water system is assembled and tested in-house before shipping, guaranteeing immediate operational use upon arrival.

                The installation process requires minimal plumbing, making it easy to install and maintain. With regular maintenance, including changing pre-filters and membranes, this system can last for 15-20 years, creating a long-lasting investment for your family and home.

                Save Time, Money, & Space


                Worry Free Maintenance: With an efficient prefiltration system, the life of your membranes is extended, reducing the need for frequent replacements.

                  Cost Savings: Say goodbye to monthly filter replacements and wasteful system flushes. Crystal Quest's RO system is designed to save you money in the long run, without compromising on performance.

                    Perfect for Tight Quarters: This system's revolutionary modular design is not only highly economical, but it also requires little operational maintenance.




                      What Does the Standalone Whole House Reverse Osmosis Water Filtration System Come With?



                      RO System: A commercial-grade RO System ranging from 200 to 7,000 GPD.

                      Pre-Filter: Every system is equipped with prefiltration to extend the life of the membranes.

                      RO Membranes: Used to separate water molecules from other substances, such as dissolved minerals, contaminants, and impurities.

                      System Literature: Installation manual, product manual, and schematics.



                          crystal quest ro system


                          What Is Included With the Whole House Reverse Osmosis Water System Kit?



                          The RO System - A commercial-grade RO System ranging from 200 to 7,000 GPD. Every system is equipped with prefiltration to extend the life of the membranes.

                          Storage Tank - Water is stored in an atmospheric water storage tank (165, 220, or 550 gallons) that is sized depending on your system, needs, and space.

                          Re-Boosting Pump - As water is used within your home, it will be pumped from the tank as needed.

                          Float Switches - Used within your water tank, this regulates when your RO System needs to cut on and off depending on the water level in your tank.

                          Pre-filtration cartridge & RO membranes

                          Installationmanual, product manual, and schematics.

                            crystal quest reverse osmosis storage tank components

                            Storage Tank Sizes:

                            System Tank Size
                            200-300 GPD 165 Gallons (31"D x 56" H)
                            500-2,500 GPD 220 Gallons (42"D x 44" H)
                            4,000-7,000 GPD 550 Gallons (67"D x 44" H)



                            Is the Remineralizer Add-On Filter Necessary?


                            Reverse osmosis systems, including the Crystal Quest Whole House RO System, are highly effective in removing a wide range of contaminants from water, including minerals.

                            While this filtration process improves the overall purity of the water, it also removes essential minerals that are beneficial for our health.

                            By incorporating a remineralizing filter into the system, the water passing through the RO system can be enriched with minerals such as calcium, magnesium, and potassium. These minerals are important for various bodily functions and essential for maintaining good health.

                            Remineralizer Sizing

                            300 - 2500 GPD Single Big Blue Alkalizer/Remineralizer
                            4000 - 5000 GPD Remineralizer System (1.5 cubic feet)
                            7000 GPD Remineralizer System (2.0 cubic feet)


                            Deciding on GPD

                            Flow Rate Bathrooms
                            200-300 GPD 1 - 1.5
                            500-2,500 GPD 1 - 4
                            4,000-7,000 GPD 5+



                            What Happens After I Purchase my Whole Home RO System?


                            Our team will get to work right away on getting your system shipped directly to your home or business. Larger systems with storage tanks require freight shipping and we will coordinate your delivery directly with you.


                            At no point will you be responsible for any shipping, delivery, or handling costs - we've got you covered!


                            What Do Our Customers Think?


                            ⭐⭐⭐⭐⭐


                            We had a tough time figuring out what system would be best for our home situated on a well. The team at Aqua Home Supply provided an impeccable service, tailoring the system to our exact needs and giving us a great deal on the price. The difference in water purity is incredible. I highly recommend their service and expertise!



                            Henry, W. - Baldwin, MI


                            ⭐⭐⭐⭐⭐


                            I'm blown away by the quality of our new house-wide RO purification system. Working with Aqua Home Supply was a breeze; they customized the setup to address our specific water issues, and the flexible pricing options were a godsend. The improvement in our water quality is like night and day. Heartfelt thanks to the team for their exceptional support and expertise!



                            David K. - South Lake Tahoe, CA


                            ⭐⭐⭐⭐⭐


                            I'm amazed by our new full-house osmosis system. Aqua Supply really listened to what we needed and offered a customized system that fits our lifestyle perfectly. They were flexible with the pricing, making it an affordable luxury. Our water quality is now outstanding. Big thanks to Aqua Home Supply for their dedication and excellent service!



                            Linda F. - Lakeport, FL








                            200 GPD Specifications

                            Standalone Pump Kit
                            Dimensions 7" x 22" x 31" 7" x 22" x 31"
                            Voltage 120/220 V 120/220 V
                            Hertz 60 60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 3/8" 3/8"
                            Product Connection 3/8" 3/8"
                            Waste Connection 1/4" 1/4"
                            Recovery 33% - 50% 33% - 50%
                            Storage Tank Size N/A 165 Gallons (31"D x 56" H)

                            300-400 GPD Specifications

                            Standalone Pump Kit
                            Dimensions 7" x 28" x 33" 7" x 28" x 33"
                            Voltage 120/220 V 120/220 V
                            Hertz 60 60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 3/8" 3/8"
                            Product Connection 3/8" 3/8"
                            Waste Connection 1/4" 1/4"
                            Recovery 33% - 50% 33% - 50%
                            Storage Tank Size N/A 165 Gallons (31"D x 56" H)


                            500 GPD Specifications

                            Standalone Pump Kit
                            Dimensions 14" x 20" x 27" 14" x 20" x 27"
                            Voltage 120/220 V 120/220 V
                            Hertz 50/60 50/60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 3/4" 3/4"
                            Product Connection 3/8" 3/8"
                            Waste Connection 3/8" 3/8"
                            Recovery 33% - 50% 33% - 50%
                            Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                            Maximum Feed (gpm) 3 gpm 3 gpm
                            Storage Tank Size N/A 220 Gallons (42"D x 44" H)


                            750 GPD Specifications

                            Standalone Pump Kit
                            Dimensions 14" x 20" x 27" 14" x 20" x 27"
                            Voltage 120/220 V 120/220 V
                            Hertz 50/60 50/60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 3/4" 3/4"
                            Product Connection 3/8" 3/8"
                            Waste Connection 3/8" 3/8"
                            Recovery 33% - 50% 33% - 50%
                            Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                            Maximum Feed (gpm) 3 gpm 3 gpm
                            Storage Tank Size N/A 220 Gallons (42"D x 44" H)


                            1,000 GPM Specifications


                            Standalone Pump Kit
                            Dimensions 14" x 20" x 27" 14" x 20" x 27"
                            Voltage 120/220 V 120/220 V
                            Hertz 50/60 50/60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 1" 1"
                            Product Connection 3/8" 3/8"
                            Waste Connection 3/8" 3/8"
                            Recovery 33% - 50% 33% - 50%
                            Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                            Maximum Feed (gpm) 3 gpm 3 gpm
                            Storage Tank Size N/A 220 Gallons (42"D x 44" H)


                            1,500 GPD Specifications

                            Standalone Pump Kit
                            Dimensions 14" x 20" x 46" 14" x 20" x 46"
                            Voltage 120/220 V 120/220 V
                            Hertz 50/60 50/60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 1" 1"
                            Product Connection 3/8" 3/8"
                            Waste Connection 3/8"" 3/8"
                            Recovery 33% - 50% 33% - 50%
                            Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                            Maximum Feed (gpm) 5 gpm 5 gpm
                            Storage Tank Size N/A 220 Gallons (42"D x 44" H)


                            1,800 GPD Specifications


                            Standalone Pump Kit
                            Dimensions 14" x 20" x 46" 14" x 20" x 46"
                            Voltage 120/220 V 120/220 V
                            Hertz 50/60 50/60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 1" 1"
                            Product Connection 3/8" 3/8"
                            Waste Connection 3/8" 3/8"
                            Recovery 33% - 50% 33% - 50%
                            Minimum Feed (gpm) 1.5 gpm 1.5 gpm
                            Maximum Feed (gpm) 5 gpm 5 gpm
                            Storage Tank Size N/A 220 Gallons (42"D x 44" H)


                            2,500 GPD Specifications

                            Standalone Pump Kit
                            Dimensions 14" x 20" x 46" 14" x 20" x 46"
                            Voltage 120/220 V 120/220 V
                            Hertz 50/60 50/60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 1" 1"
                            Product Connection 3/8" 3/8"
                            Waste Connection 3/8" 3/8"
                            Recovery 33% - 50% 33% - 50%
                            Minimum Feed (gpm) 4 gpm 4 gpm
                            Maximum Feed (gpm) 10 gpm 10 gpm
                            Storage Tank Size N/A 220 Gallons (42"D x 44" H)



                            4,000 GPD Specifications


                            Standalone Pump Kit
                            Dimensions 30" x 38" x 47" 30" x 38" x 47"
                            Voltage 120/220 V 120/220 V
                            Hertz 60 60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 1" 1"
                            Product Connection 1/2" 1/2"
                            Waste Connection 1/2" 1/2"
                            Recovery 33% - 50% 33% - 50%
                            Minimum Feed (gpm) 6 gpm 6 gpm
                            Storage Tank Size N/A 550 Gallons (67"D x 44" H)


                            5,000 GPD Specifications


                            Standalone Pump Kit
                            Dimensions 30" x 38" x 47" 30" x 38" x 47"
                            Voltage 120/220 V 120/220 V
                            Hertz 60 60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 1" 1"
                            Product Connection 1/2" 1/2"
                            Waste Connection 1/2" 1/2"
                            Recovery 33% - 50% 33% - 50%
                            Minimum Feed (gpm) 7 gpm 7 gpm
                            Storage Tank Size N/A 550 Gallons (67"D x 44" H)


                            7,000 GPD Specifications


                            Standalone Pump Kit
                            Dimensions 30" x 38" x 47" 30" x 38" x 47"
                            Voltage 120/220 V 120/220 V
                            Hertz 60 60
                            Pressure 150 PSI 150 PSI
                            Pump HP N/A 1.5 HP
                            Feed Connection 1" 1"
                            Product Connection 1/2" 1/2"
                            Waste Connection 1/2" 1/2"
                            Recovery 33% - 50% 33% - 50%
                            Minimum Feed (gpm) 10 gpm 10 gpm
                            Storage Tank Size N/A 550 Gallons (67"D x 44" H)



                            Crystal Quest Whole House Reverse Osmosis System Manuals

                             Manuals

                            200-300 GPD Reverse Osmosis Manual

                            500-2500 GPD Reverse Osmosis Manual

                            4000-7000 GPD Reverse Osmosis Manual

                            200 GPD Reverse Osmosis Schematic

                            500 GPD Reverse Osmosis Schematic

                            1500 GPD Reverse Osmosis Schematic

                            2500 GPD Reverse Osmosis Schematic

                            4000 GPD Reverse Osmosis Schematic

                            5000 GPD Reverse Osmosis Schematic

                            7000 GPD Reverse Osmosis Schematic

                            2500 GPD Softener RO Schematic

                            1500 GPD RO Iron UV Softener Schematic

                            500 GPD RO Tank UV Softener Schematic

                            4000 GPD RO Tank Schematic

                            5000 GPD RO Softener CN Schematic

                            7000 GPD RO Softener Schematic













                            Aquahome Supply Promises
