Commercial Twin Tank Water Softener
$18,389.29
- ✓ Fast Free Shipping Within the US
- ✓ 120 Day No Hassle Returns
- ✓ No Sales Tax On All Orders (Outside of MN)

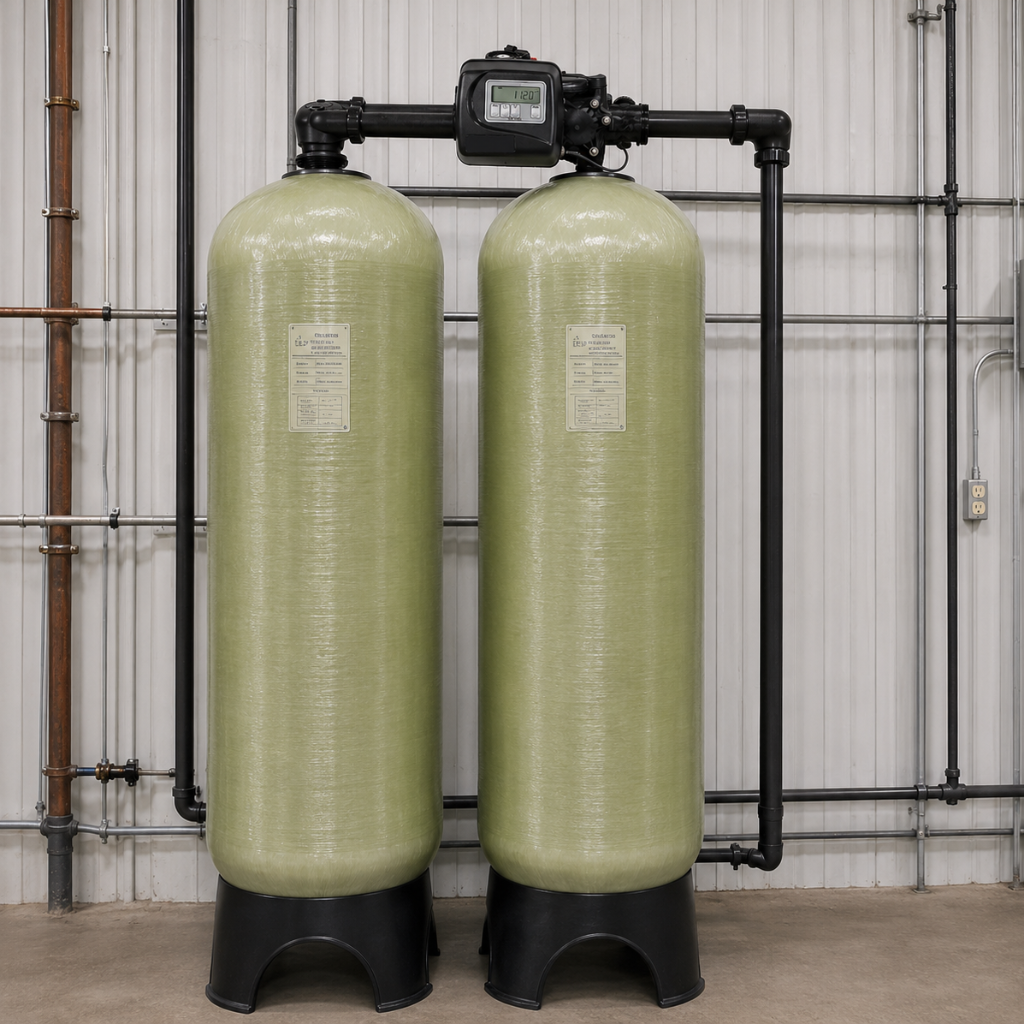

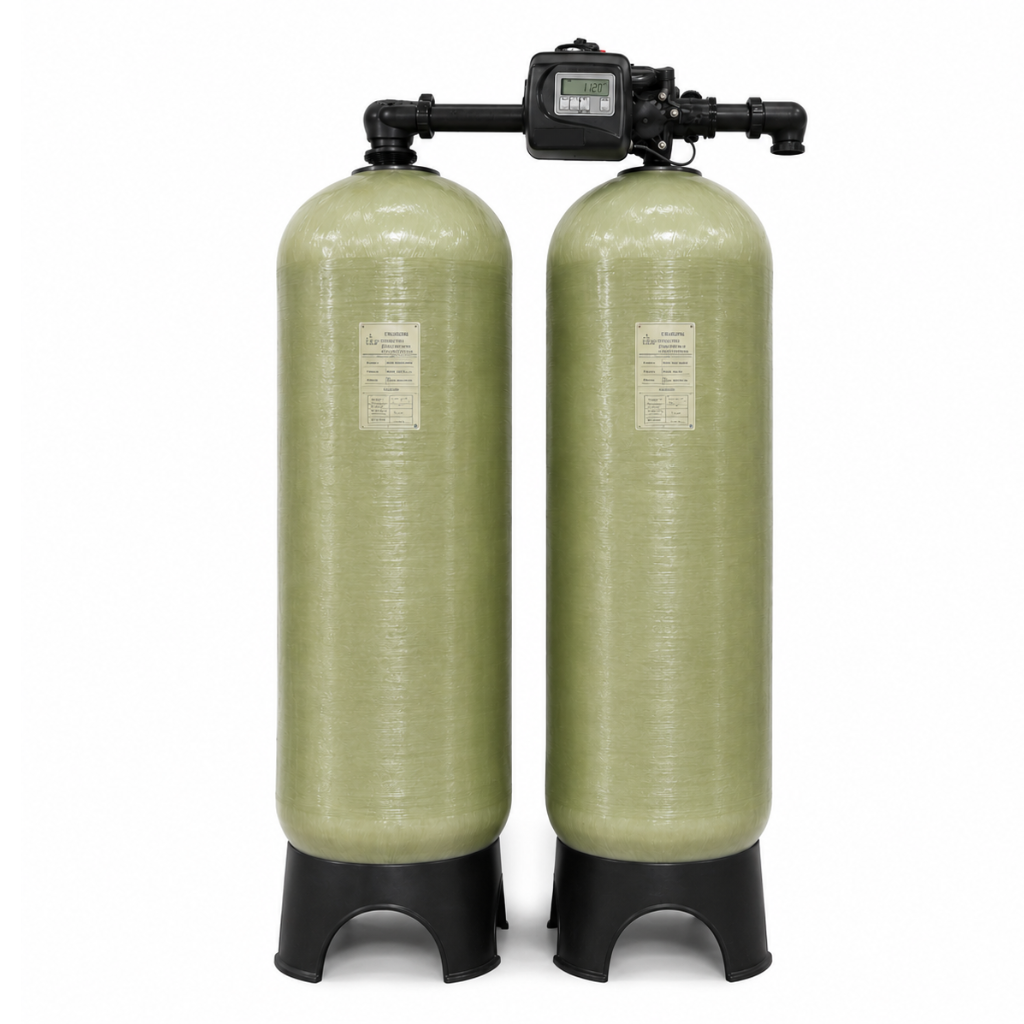

Commercial Twin Tank Water Softener
Engineered for Continuous Soft Water Supply
Our Commercial Twin Tank Water Softener is designed for businesses that demand an uninterrupted supply of softened water. Featuring a true twin alternating design, one tank remains in service while the other regenerates, ensuring soft water is always available—even during regeneration cycles.
Built around industry-leading Clack control technology, these systems are available with:
- Clack WS 1.5" EE Twin Alternating Valve
- Clack WS 2" EE Twin Alternating Valve
- Clack WS 3" EE Twin Alternating Valve
Each system is custom-engineered based on your water quality, peak flow requirements, and daily water consumption to ensure optimal performance and efficiency.
Ideal Applications
- Restaurants
- Hotels
- Apartment Buildings
- Manufacturing Facilities
- Car Washes
- Healthcare Facilities
- Breweries & Beverage Production
- Commercial Laundries
- Schools & Universities
- Office Buildings
Key Features
- Continuous Soft Water Supply – Twin alternating design eliminates downtime during regeneration.
- Custom Sized for Your Application – Systems are engineered specifically for your facility's water demand.
- Commercial-Grade Construction – Heavy-duty fiberglass mineral tanks with industrial tank bases.
- High-Capacity Resin Systems – Designed for demanding commercial and light industrial applications.
- Advanced Clack Control Valves – Reliable, easy-to-program electronic controls with proven performance.
- Reduced Salt & Water Consumption – Efficient regeneration cycles help minimize operating costs.
- Scalable Design – Available in multiple tank sizes and valve configurations to accommodate a wide range of flow rates and capacities.
Why Choose a Twin Alternating System?
Unlike single-tank softeners that take the system offline during regeneration, a twin alternating system automatically switches to the standby tank when regeneration is required. This provides:
- Continuous soft water 24/7
- Improved operational efficiency
- Greater resin utilization
- Reduced risk of hard water breakthrough
- Ideal performance for facilities with variable or around-the-clock water usage
3" System Specifications
Full specifications, installation data and component drawings for our 3" commercial softener systems are in the spec sheet below.
Download the 3" Spec Sheet (PDF)
3" Control Valve
| Service flow rate | 250 gpm @ 15 psi drop |
| Backwash flow rate | 220 gpm @ 25 psi drop |
| Inlet / outlet / drain | 3" female NPT (BSPT available) |
| Tank connection | 6" flange or side mount |
| Operating pressure | 20–125 psi |
| Water temperature | 40–110 °F |
| Power | 120 V AC, 60 Hz |
| Flow meter | External 3" meter, 3.5–350 gpm, ±5% |
Model Specifications (per resin tank)
| Model | Resin Tank (in) | Brine Tank (in) | Capacity @ 9 lb/ft³ | Capacity @ 15 lb/ft³ | Resin (cu ft) | Service Flow (gpm) | Backwash (gpm) | Salt / Regen (lbs, 9 / 15) |
|---|---|---|---|---|---|---|---|---|
| WS3M-150 | 18 × 65 | 24 × 41 | 120,000 | 150,000 | 5 | 40 | 10 | 45 / 75 |
| WS3M-210 | 21 × 62 | 24 × 50 | 168,000 | 210,000 | 7 | 45 | 13 | 63 / 105 |
| WS3M-300 | 24 × 72 | 30 × 50 | 240,000 | 300,000 | 10 | 70 | 15 | 90 / 150 |
| WS3M-450 | 30 × 72 | 39 × 48 | 360,000 | 450,000 | 15 | 105 | 25 | 135 / 225 |
| WS3M-600 | 36 × 72 | 50 × 60 | 480,000 | 600,000 | 20 | 140 | 35 | 180 / 300 |
| WS3M-900 | 42 × 72 | 50 × 60 | 720,000 | 900,000 | 30 | 200 | 45 | 270 / 450 |
| WS3M-1200 | 48 × 72 | 50 × 60 | 960,000 | 1,200,000 | 40 | 250 | 65 | 360 / 600 |
Capacity in grains per resin tank. Tank sizes are diameter × height. Salt shown per regeneration at 9 and 15 lbs per cubic foot.
Twin Alternating Installation Data
| Model | Space Required L × W × H (in) | Shipping Weight (lbs) |
|---|---|---|
| WS3-TA-300 | 86 × 30 × 90 | 2,045 |
| WS3-TA-450 | 107 × 39 × 97 | 2,995 |
| WS3-TA-600 | 130 × 50 × 99 | 3,935 |
| WS3-TA-900 | 142 × 50 × 110 | 6,075 |
| WS3-TA-1200 | 152 × 50 × 107 | 7,675 |
Each twin alternating model uses two resin tanks of the matching size above with a shared brine tank. Allow additional clearance for service access.
Request a Custom Quote
Every commercial application is different. To ensure proper sizing and performance, this product is available by quote only.
Our water treatment specialists will review:
- Water hardness
- Iron and manganese levels
- Daily water consumption
- Peak flow requirements
- Operating schedule
- Installation requirements
Based on this information, we'll design a system tailored specifically to your facility.
Request a Quote Today and our team will provide a custom recommendation along with pricing, specifications, and expected lead times. See all commercial water softeners.
Commercial Twin Tank Water Softener Reviews
