Fleck 2510 AiQ air injection iron filter with Greensand Plus media tank

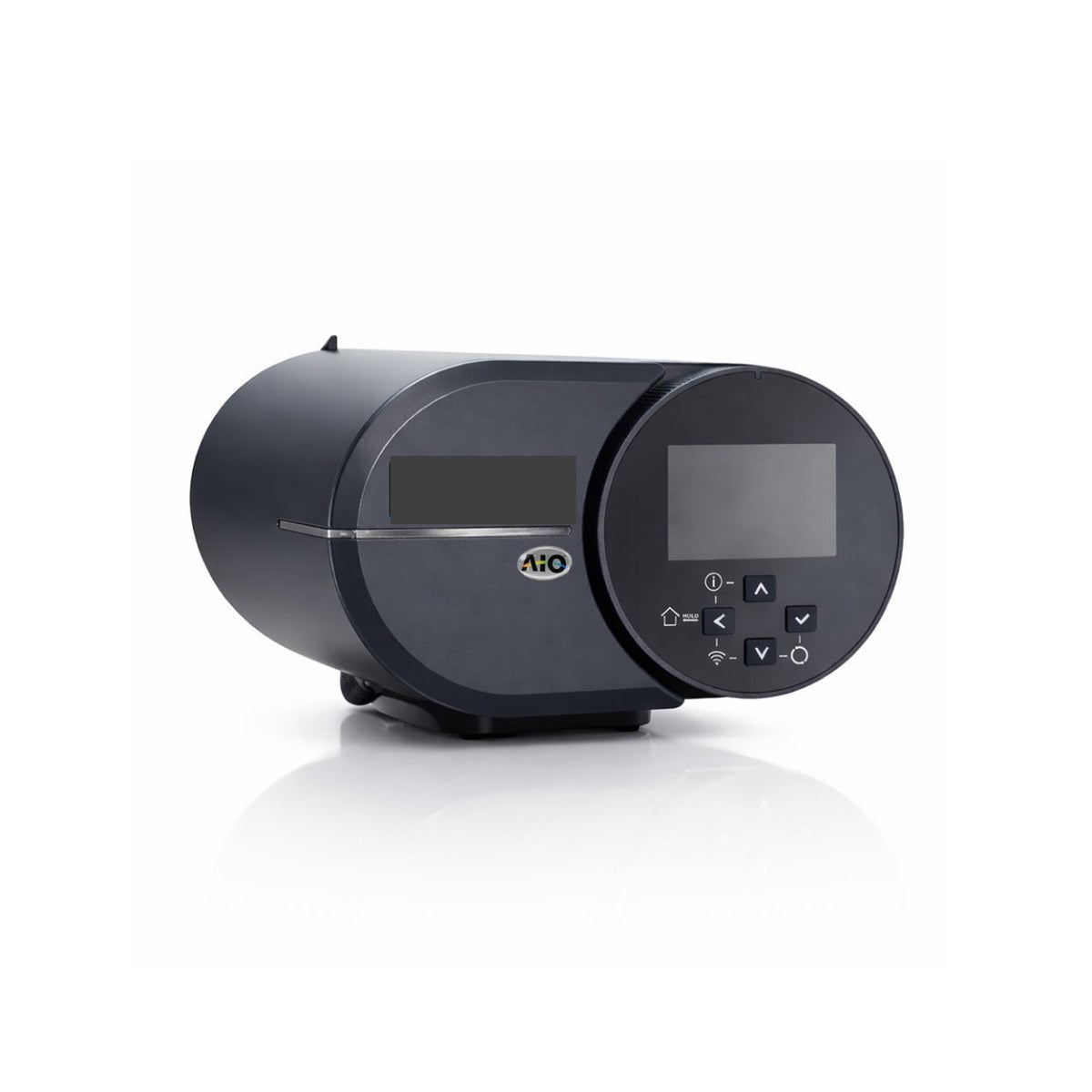

Fleck 2510 AiQ AIO controller for Greensand Plus iron filter

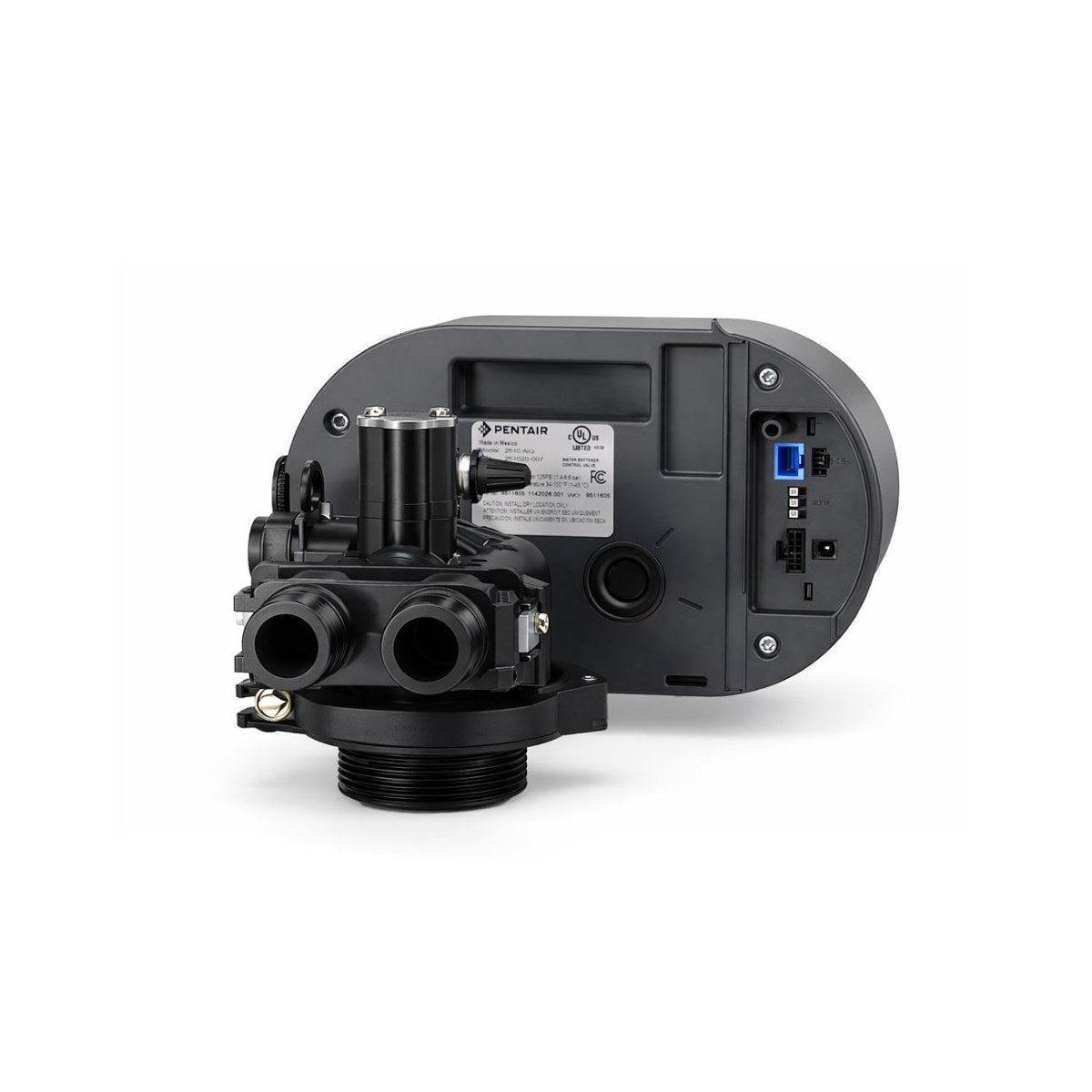

Pentair Fleck 2510 AiQ AIO control valve for Greensand Plus iron filter

Fleck stainless steel bypass valve (3/4 or 1 inch) for 2510 AiQ Greensand Plus iron filter

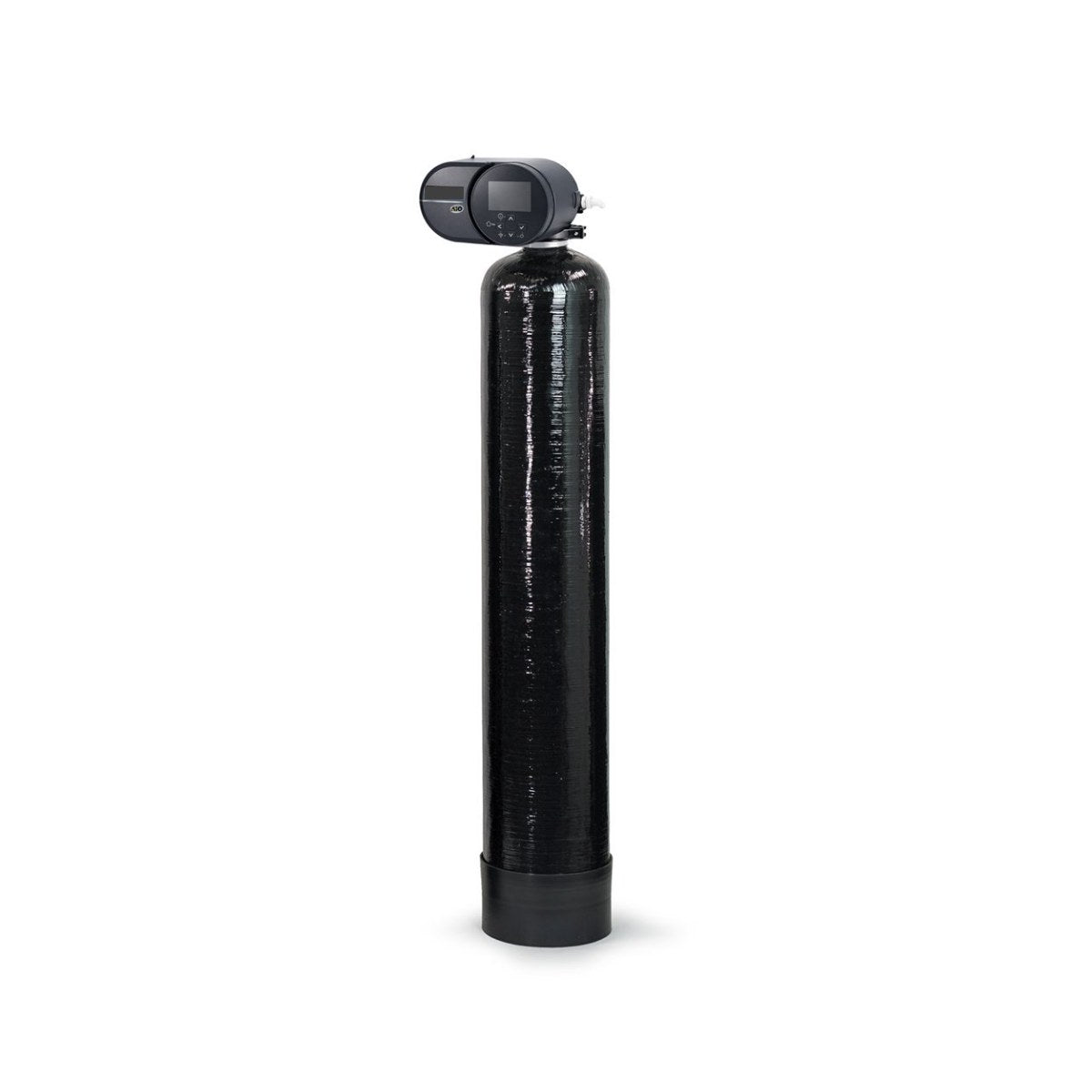

Fleck 2510 AiQ Air Injection Greensand Plus Iron Filter

$1,538.90 - $1,868.90$1,385.01 - $1,682.01

✓ Fast Free Shipping Within the US
✓ 120 Day No Hassle Returns
✓ No Sales Tax On All Orders (Outside of MN)

Fleck 2510 AiQ Air Injection Greensand Plus Iron Filter

The Fleck 2510 AiQ Air Injection Greensand Plus Iron Filter removes up to 7 ppm iron and up to 5 ppm hydrogen sulfide ("rotten egg" odor) from well water, along with manganese. It pairs the Pentair Fleck 2510 AIO valve and new AiQ controller with Greensand Plus media, and it replaces the discontinued 2510 SXT greensand filter.

Air injection does the oxidizing, so there's no chlorine or potassium permanganate to feed. An air pocket at the top of the tank converts dissolved iron and sulfur into particles, and the Greensand Plus bed catches them. A daily backwash flushes the captured iron to drain and draws in fresh air.

Warranty: 5 years on the Fleck 2510 AiQ valve head and 10 years on the tank. See the full Fleck 2510 AiQ spec sheet (PDF).

What's Included

Fleck 2510 AiQ AIO (Air Injection) Control Valve
Structural Mineral Tank
Greensand Plus Iron & Manganese Media (ships separately, loaded on site)
Support Bed

Stainless Steel Bypass Valve (3/4" or 1", your choice)
Connection Fittings of Your Choosing
5 Year Warranty on Valve Head (10 Years on Tank)

Fleck 2510 AiQ Greensand Plus Iron Filter Key Features

Chemical-Free Air Injection: Oxidizes iron and sulfur inside one tank, with no air compressor, chlorine or potassium permanganate.
Greensand Plus Media: A manganese dioxide coated media that catalytically oxidizes and filters iron, manganese and hydrogen sulfide. It also reduces arsenic and radium.
High Iron-Loading Capacity: Holds 700–1,200 grains of oxidized iron and manganese per square foot of bed between backwashes.
Certified Media: Greensand Plus carries WQA Gold Seal certification to NSF/ANSI 61.
4-Cycle AIO Regeneration: Up-flow backwash, air draw, rapid rinse and down-flow service. Each backwash cleans the bed and restores the air pocket.
Full-Color AiQ Display with Quick Start Menu: Plain-language menus and fast setup.
USB-C Port and Benchtop Programming: Program before installation, update software, and pull usage history and diagnostics.
Wrap-Around Light Bar: System status visible from multiple angles.
Modular Powerhead: 4-step teardown, easy grip handle and a backplate hook for service.
NEMA 3R / IP54 Rated: Built for garages, basements, well houses and wet locations.

How the Fleck 2510 AiQ Greensand Plus Iron Filter Works

Oxidize: Water passes through an air pocket held at the top of the tank. Dissolved iron, manganese and hydrogen sulfide oxidize into solid particles.
Filter: The Greensand Plus bed catalyzes any remaining oxidation and traps the particles.
Backwash: Once a day, the AiQ valve reverses flow to flush captured iron to drain, draws in fresh air, rinses and returns to service.

For hard water, install a water softener after the iron filter.

Fleck 2510 AiQ Greensand Plus Iron Filter Specs

Valve	Fleck 2510 AIO with AiQ Controller and Powerhead
Removal Capacity	Up to 7 ppm iron, up to 5 ppm hydrogen sulfide
Valve Material	Fiber-Reinforced Polymer
Inlet/Outlet	3/4" or 1"
Regeneration Cycles	4: Up-Flow Backwash, Air Draw, Rapid Rinse, Down-Flow Service
Regeneration Trigger	Time Clock (Daily Backwash)
Valve Service Flow	2 GPM Continuous, 7.5 GPM Peak
Max Backwash	17 GPM (25 psi drop)
Backwash Capacity	Tanks up to 14" Diameter
Working Pressure	20–75 psi
Water Temperature	34–110°F
Electrical	24V, 50/60 Hz (Transformer Included)
Enclosure Rating	NEMA 3R / IP54
Programming	On-Board or USB-C
Media	Greensand Plus (Ships Separately)
Media pH Range	6.2–8.5
Media Service Flow	2–12 gpm/ft²
Media Backwash Rate	Minimum 12 gpm/ft² at 55°F
Bed Expansion	40% During Backwash
Iron/Manganese Loading	700–1,200 Grains per ft² of Bed
Media Certification	WQA Gold Seal to NSF/ANSI 61
Warranty	5 Years on Valve Head, 10 Years on Tank

Flow Rates by Tank Size

Tank	Max Service Flow	Backwash Needed
10" x 44"	6.5 GPM	6.5 GPM
10" x 54"	6.5 GPM	6.5 GPM
12" x 52"	7.5 GPM	9.4 GPM
13" x 54"	7.5 GPM	11.1 GPM

Fleck 2510 AiQ Greensand Plus Iron Filter FAQ

What does a greensand filter remove?

This air injection greensand filter removes up to 7 ppm iron and up to 5 ppm hydrogen sulfide, the cause of the "rotten egg" smell. It also reduces manganese, arsenic and radium.

Does it need chlorine or potassium permanganate?

No. Air injection handles the oxidation, so there's no chemical feed pump or regenerant to buy.

Greensand Plus vs Katalox Light: which should I choose?

Greensand Plus works from pH 6.2 to 8.5 and holds a lot of iron between backwashes. Katalox Light covers a wider pH range (5.8–10.5), filters to under 3 microns and needs a lower backwash rate. If your water is below pH 6.2, choose Katalox Light.

Is the Fleck 2510 SXT greensand filter discontinued?

Yes. Pentair has discontinued the 2510 SXT. The 2510 AiQ AIO valve replaces it, with a full-color display, USB-C programming and a modular powerhead.

What size do I need?

Use the bathroom count in the size options as a starting point. Then check that your well pump can deliver the backwash rate: about 6.5 GPM for the 10" tanks, 9.4 GPM for the 12x52 and 11.1 GPM for the 13x54.
