Fleck 9500 Twin Alternating Water Softener

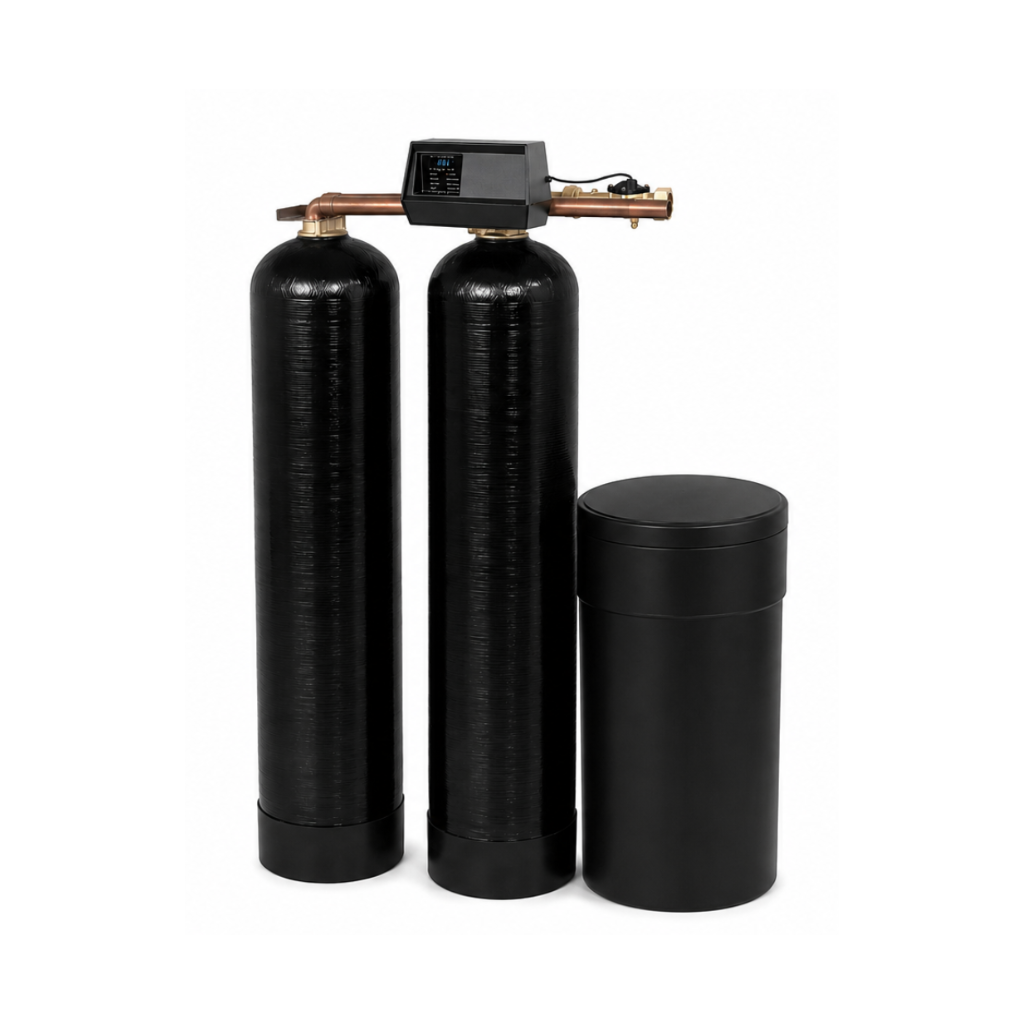

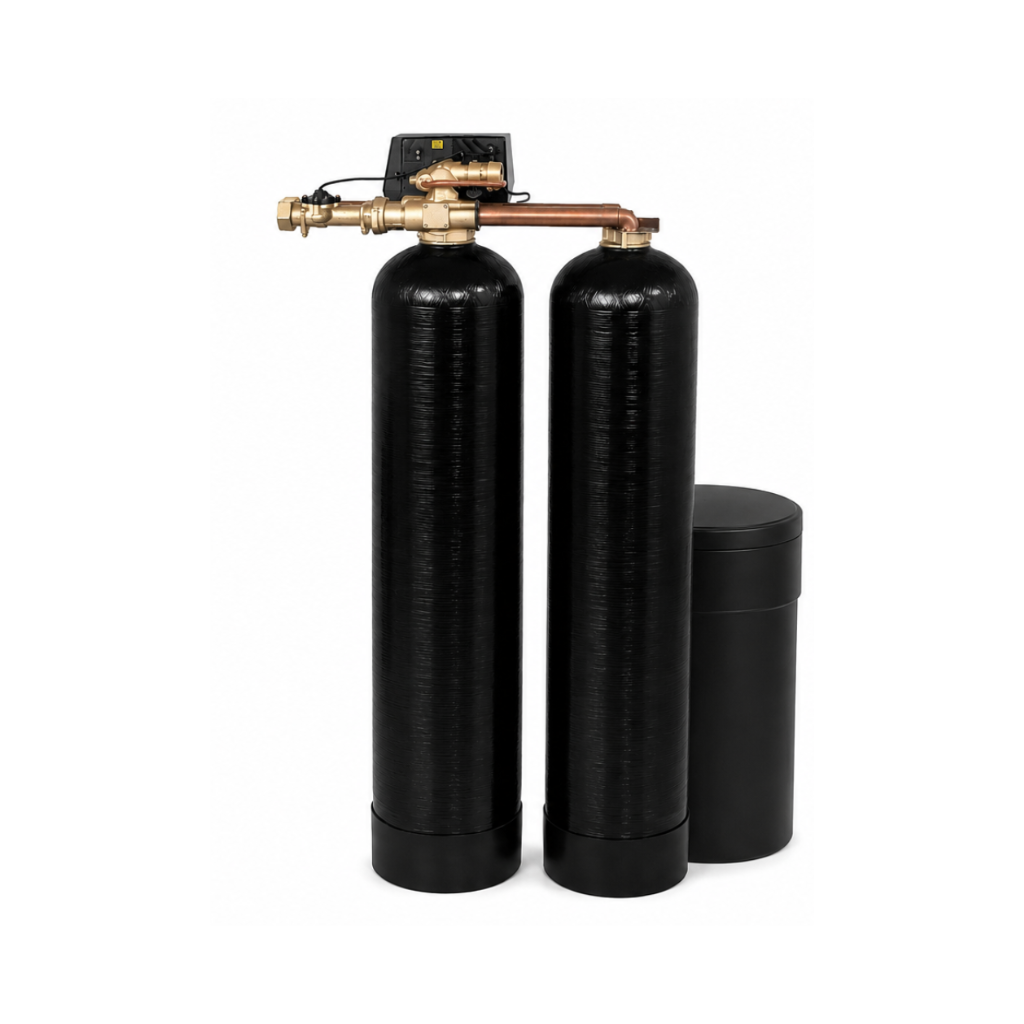

Fleck 9500 1.5" Commercial Twin Tank Water Softener

Stop paying for service contracts and overpriced repairs. The Fleck 9500/1700 twin alternating softener arrives fully assembled and ready to connect — everything you need is in the box, nothing to source separately.

While one tank is regenerating, the other stays in service, delivering a continuous supply of soft water around the clock with zero downtime. For a business owner or maintenance leader who wants a commercial-grade solution installed on their schedule and at their cost, this is the system.

And when something eventually needs replacing, it's covered — every system we sell includes ourFree Replacement Parts for Life program, meaning you'll never pay for a repair part again.

What's included

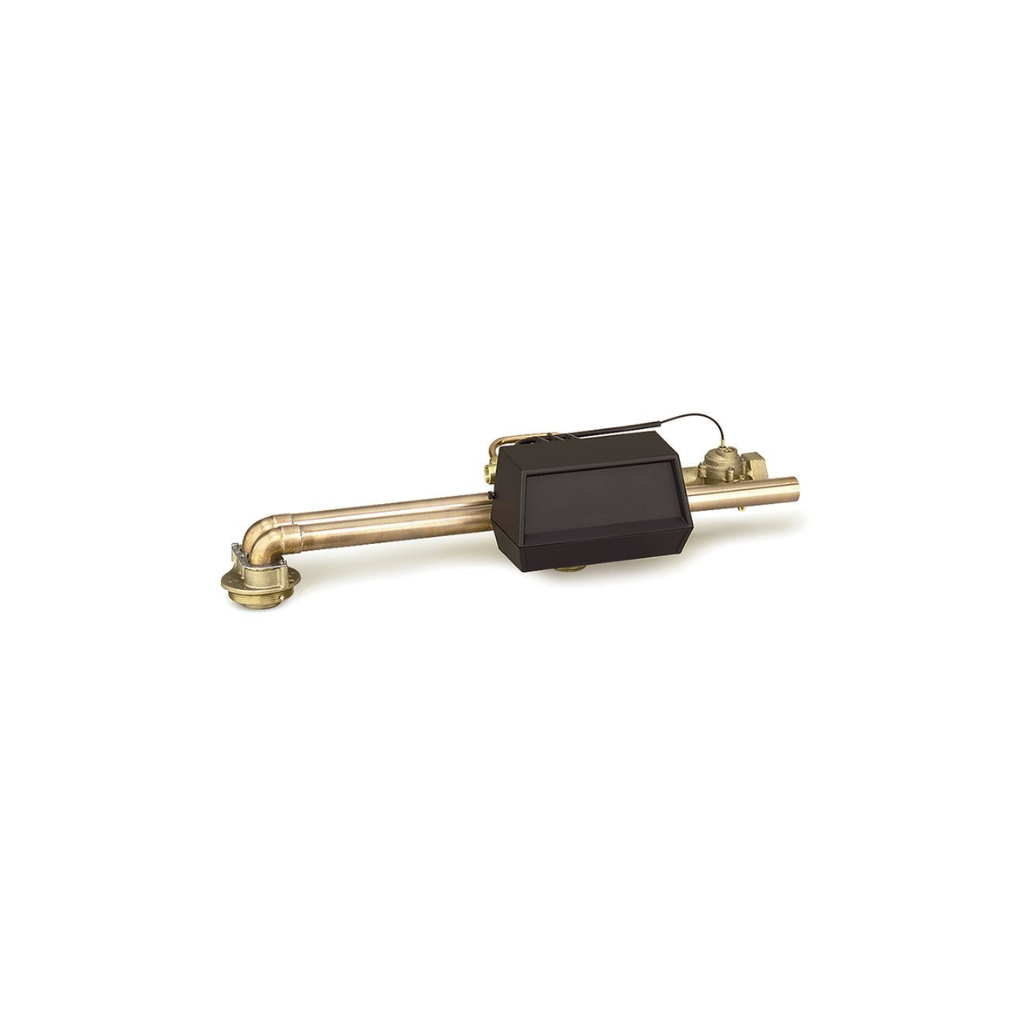

• Fleck 9500/1700 1-1/2" mechanical control valve with 1700 time brining
• Two composite pressure vessels
• Commercial distributors
• Gravel support bed
• High-capacity resin
• Commercial brine tank
• Clack 484 Commercial Safety Valve
• Air check
• Overflow elbow
• 5" brine well and cap
• Tank yoke and meter


Fleck 9500 Key Features:

• Lead-free brass valve body for superior strength and durability
• Continuous service flow of 38 GPM with 16 GPM backwash
• Accommodates softener tanks up to 24" diameter
• Fully adjustable 5-cycle control for efficient water treatment
• Regenerates immediately when needed — continuous soft water, no interruption
• Regenerates with soft water to keep system clean for minimum maintenance
• Salt and water savings by using 100% tank capacity before switching to second tank
• Time-tested hydraulically balanced piston for reliable regeneration
• Rugged electromechanical timer with heavy-duty 3/8" wide plastic gears


Specifications

*Capacities based on resin manufacturer data. Units set at efficient salt settings. All flow rates in GPM. All dimensions in inches. 1-1/2" meter range: std. 10,625 gal — ext. 53,125 gal.
