Elevate your water quality with NuvoH2O Manor Trio System Iron + Sediment Replacement Cartridges. Designed to enhance your water without stripping away essential minerals, these cartridges deliver unparalleled results.
The NuvoH2O Manor Trio System is more than just a water softener. It's a comprehensive solution that tackles various water issues, from hard water scale buildup to unpleasant tastes and odors. By neutralizing pH levels and removing existing scale buildup, it ensures your water remains soft, clean, and great-tasting.

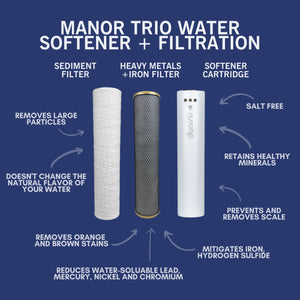

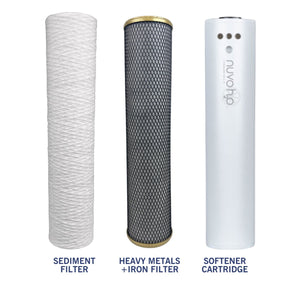

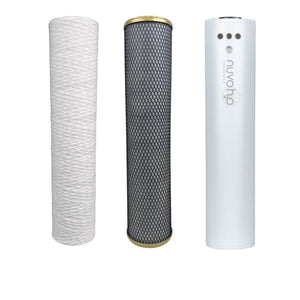

At the core of the system lies the sediment filter, a robust defense mechanism against large particles like sand, rust, and debris. This filter effectively traps and removes these contaminants, ensuring your water flows smoothly and remains crystal clear.
The Carbon and Iron option offers enhanced filtration, targeting carbon and iron particles for a more thorough cleansing process. Say goodbye to orange and brown stains caused by iron, as well as water-soluble lead and hydrogen sulfide, ensuring your water is safe and clean for consumption.
With compliance to NSF/ANSI Standard 42, you can trust in the quality and reliability of NuvoH2O Manor Trio System Iron + Sediment Replacement Cartridges.
Buy Now and say hello to softer, cleaner water without the slick feeling associated with other softeners.
✅Enhanced Water Quality: Softens water without stripping healthy minerals, neutralizes pH levels, and removes scale buildup for great-tasting water.
✅ Effective Sediment Filtration: The sediment filter captures and removes large particles like sand, rust, and debris, ensuring clean water.
✅ Carbon and Iron Option: Effectively removes carbon and iron particles, addressing various water contaminants.
✅ Scale Prevention: Prevents and removes hard water scale buildup, extending the lifespan of water heaters, plumbing fixtures, and appliances.
✅ Eco-Friendly Design: No salt, phosphates, waste water, or electricity required, reducing environmental impact.
✅ Mineral Retention: Retains healthy minerals in water, ensuring it remains beneficial for consumption.
✅ No Slick Feeling: Unlike other water softeners, this system leaves no slick feeling, providing a natural water experience.
✅ Compliance with Standards: Complies with NSF/ANSI Standard 42 for quality and reliability assurance.
✅ Stain Removal: Removes orange and brown stains caused by iron, improving water aesthetics.
✅ Lead Reduction: Reduces water-soluble lead content, enhancing water safety.
✅ Hydrogen Sulfide Mitigation: Mitigates hydrogen sulfide, ensuring water purity.
✅ Quiet Operation: No regeneration cycle, motors, or alarms, ensuring a noise-free experience.
✅ Compact Design: Allows for easy installation in various locations on the water line.
✅ Zero Energy Cost: Requires no electricity, reducing energy consumption and costs.
✅ Easy Maintenance: Cartridges and filters should be replaced every 50,000 gallons or six months, ensuring hassle-free upkeep.
✅System housing (1 head and 3 sumps)
✅Mounting bracket
✅1 Softener cartridge
✅2 Additional filters
✅1 Wrench
✅Tapcon screw pack
✅System head screw pack
✅3 O-rings
✅Lubricant
✅Installation guide
✅Warranty/Registration card
SKU | NuvoH2O® Manor Trio Replacement Cartridge & Filters |
Cartridge Size: | 4.5" wide x 19.9" |
Cartridge Weight: | 8 lbs. |
Sediment Filter Size | 4.5” wide x 19.9” |
Sediment Filter Weight | 1.5 lbs. |
Iron Filter Size | 4.5” wide x 20” |
Iron Filter Weight | 7 lbs. |
Cartridge & Filters Lifespan | approx. 50,000 gallons or 6 months |
Max PSI | 100 |
✅ Ensure that any electrical plugs in the area are covered or disconnected.
✅ Ensure that the existing plumbing is up to code.
✅Turn off the water main.
✅ Acquire and install a pressure regulator with your system.
Step 1: Ensure the water main is turned off.
Step 2: Attach the mounting bracket to the wall studs using a stud finder.
Step 3: Unpack the system and remove the filter and cartridge from the housing. Check inside for any loose foam, plastic, or packaging materials.
Step 4: Position the filter side of the head near the inlet pipe and attach the head to the mounting bracket. Make sure the system is installed vertically with the blue head at the top. Do not install the system upside down.
Step 5: If necessary, install a pressure regulator (E) before the NuvoH2O system, setting it to 45-65 PSI to protect the system from potential pressure spikes that could cause damage and leaks.
Step 6: Install a bypass according to the provided diagram.
Step 7: Wrap the connections with 3-4 layers of Teflon tape to seal them.
Step 8: Use flexible hoses to connect the inlet pipe to the inlet port on the system head and the outlet port of the system head to the outlet pipe. Not using flexible hoses could lead to water leakage.
Step 9: Lubricate the O-rings at the top of the housing sump with the included lubricant.
Step 10: Remove the protective plastic wrap from the cartridge and filters before placing them back into the housing.
Step 11: Insert and seat the cartridge and filter into the sump. Ensure the small, round holes on the side of the water-softening cartridge are at the top. Refer to the cartridge replacement instructions for further details.
Step 12: Attach each sump (with the filters and cartridge inside) to the head by rotating them counterclockwise and securing them with the provided wrench. Note: The order of the filters will vary based on your filtration choice:
✅ Sediment Filter ➡ Iron Filter ➡ Water Softener
Step 13: Loosen the pressure release valves on top of the heads using a screwdriver. Do not remove the valves, just loosen them.
Step 14: Open the first bypass valve (A) to allow the sumps to fill with water. Once water leaks from the pressure release valves at the top of the heads, tighten them to close (B). Avoid overtightening.
Step 15: Close the first bypass valve (A) and let the cartridge sit in the housing without water flow for one hour. Open the main valve (C) to allow water to flow through the household while the filter and cartridge sit idle.
Step 16: After one hour, close the top bypass valve (C) and slowly open the first and last bypass valves (A & D) to allow water to flow through the system.
Download the full installation guide for the NuvoH2O Manor Trio Water Softener + Filtration System for free by clicking the link below.
NuvoH2O Manor Trio Water Softener + Filtration System PDF Manual
