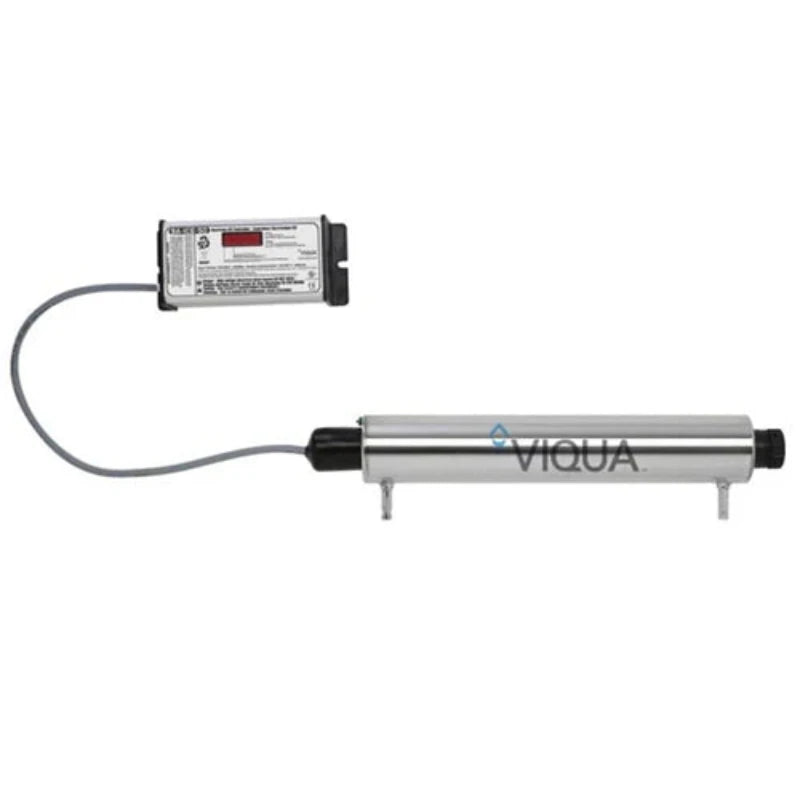

Viqua 12.5" S2Q-OZ Ozone Disinfection UV System -70 mg/hour
$476.00$404.60
- ✓ Fast Free Shipping Within the US
- ✓ 120 Day No Hassle Returns
- ✓ No Sales Tax On All Orders (Outside of MN)
Cleaner, Safer Water for Your Hot Tub or Spa with the Viqua S2Q-OZ Ozone Disinfection System
Efficient and Chemical-Free Water Purification
Enjoy a cleaner, more hygienic hot tub or spa experience with the Viqua S2Q-OZ Ozone Disinfection UV System. Designed specifically for hot tub and spa applications, this system uses UV light to create ozone, ensuring your water is disinfected with minimal chemical usage.
High-Performance Ozone Generation
- 70 mg/hour Ozone Production: Generates 70 mg of ozone per hour at 5 SCFH air flow, ideal for smaller water volumes like hot tubs.
- Effective Microorganism Inactivation: Eliminates E.Coli, Cryptosporidium, and Giardia for safer water.
Key Features and Benefits
- Air Venturi Ozone Disinfection System: Injects ozone into circulated water, reducing the need for chemicals and extending the life of your hot tub or spa.
- No Quartz Sleeve Needed: Simplifies maintenance and reduces upkeep.
- Compact and Durable Design: Stainless steel reactor chamber protects the UV lamp and ensures long-lasting performance.
- Easy Installation: Compact size for convenient setup in any hot tub or spa environment.
- Electronic "ICE" Ballasts: Features open loop current control, quick-lock molded lamp connector, audible alarm, and power-on indicator.
Why Choose the Viqua S2Q-OZ Ozone Disinfection System?
- Low Maintenance: Simple to service and maintain without interrupting water flow.
- Nature’s Way to Protect Water: Uses ozone, a natural disinfectant, to keep water clean without harmful chemicals.
- Versatile Voltage Compatibility: Operates on 100-240V, 50-60Hz, suitable for various power setups.
Additional Information
- Disinfection Flow Rates: Produces 70 mg ozone at 5 SCFH air flow for effective disinfection.
- Proprietary Lamps: Specifically designed for use with ozone systems to ensure optimal performance.
- Venturi Installation Kit Not Included: Make sure to purchase separately for complete setup.
Ensure Your Hot Tub or Spa is Clean and Safe
Experience the benefits of cleaner, healthier water with the Viqua S2Q-OZ Ozone Disinfection System. Enjoy the ease of low maintenance and the peace of mind that comes with reduced chemical usage.
Specifications
Viqua S2Q-OZ Air venturi Ozone Disinfection UV System Specifications
| Disinfection Flow Rates | |
|---|---|
| 30 mJ/cm2 | 70 mg ozone @ 5 SCFH air flow |
| Specifications | |
| Operating Parameters | |
| Max Operating Pressure | 125 psi |
| Ambient Air Temperature | 40°F - 104°F |
| Influent Water Temperature | - |
| Installation Orientation | Vertical or Horizontal |
| Electrical | |
| Voltage | 100-240 V |
| Frequency | 50-60 Hz |
| Max Current | 0.4A |
| Power Consumption | 22W |
| Dimensions | |
| Chamber | 17" x 2-1/2" |
| Controller | 7-1/4" x 3-1/4" x 2-1/2" |
| Inlet/Outlet | 3/8" Tube |
| Options | |
| Venturi Installation Kit | Not included and needs to be purchased separately (OE-001) |
| Features | |
| Chamber Material | 304SS |
| Visual "Power-On" | Yes |
| Visual Lamp Life Remaining | Yes |
| Audible Lamp Failure | Yes |
| Audible Lamp Replacement Reminder | Yes |
| Replacement Parts | |
| Lamp/Quartz Sleeve Kit | None |
| UV Lamp Only | S415ROL |
| Quartz Sleeve Only | N/A |
| Controller | BA-ICE-SO |
| Applications | |
| Hot Tubs | Spas |
Viqua S2Q-OZ Air Venturi Ozone Disinfection UV System Owner's Manual
Simplify the installation and maintenance of your Viqua S2Q-OZ Air Venturi Ozone Disinfection UV System with our comprehensive manual. Click the link below to download it now. Our step-by-step guide ensures a seamless setup, allowing you to enjoy clean, safe water effortlessly. Trust us to make your water purification experience efficient and hassle-free.
Download the Viqua S2Q-OZ Air Venturi Ozone Disinfection UV System Owner's Manual here
