All Filtration

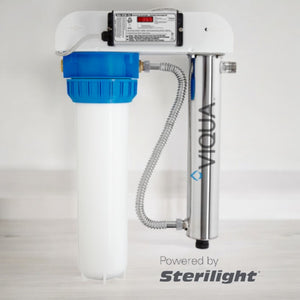

  • Viqua VH410-F20 Whole House Ultraviolet (UV) Sterilizer w/ Integrated Pre-Filter -18GPM

    • Fast Free Shipping Within the US
    • Free 120 Day No Hassle Returns
    • No Sales Tax On All Orders

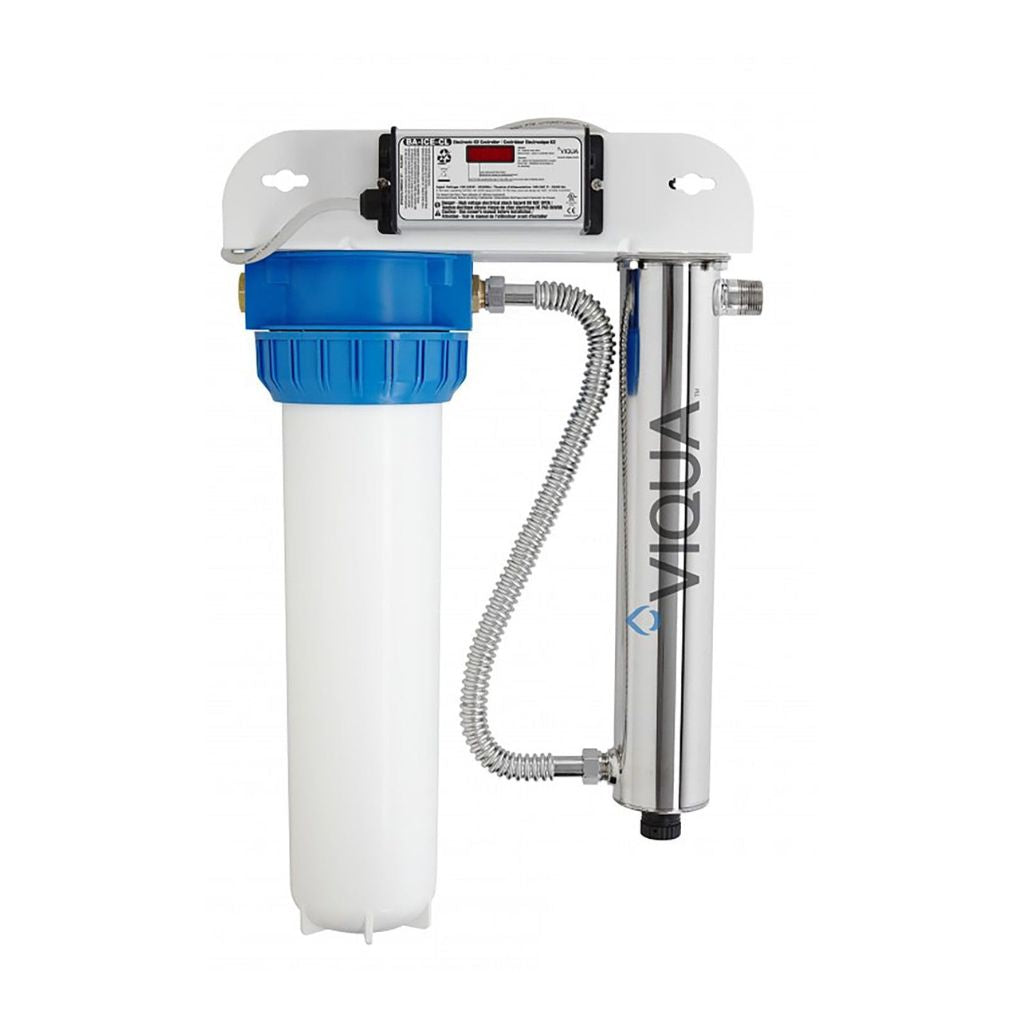

    • Protect Your Home’s Water Supply with the VIQUA VH410-F20 UV Sterilizer

      Ensure the safety and quality of your household water with the VIQUA VH410-F20 Whole House Ultraviolet (UV) Sterilizer with Integrated Pre-Filter. This advanced system combines effective UV sterilization with a high-capacity 5-micron sediment pre-filter, providing a reliable solution for homes with 3 to 5 bathrooms or light commercial applications.

      Advanced Protection and Easy Maintenance

      The VH410-F20 is designed to eliminate harmful bacteria, viruses, and other microorganisms, including E.coli, Cryptosporidium, and Giardia, treating flow rates up to 14 GPM (54 LPM). Its integrated pre-filter removes sediments, ensuring the UV lamp operates efficiently by exposing the water to optimal UV light levels.


      Features and Benefits:

      • Integrated Pre-Filtration: The 5-micron sediment pre-filter improves water clarity and UV exposure, enhancing overall system performance.
      • User-Friendly Design: Features a visual UV "lamp on" indicator, audible lamp failure alarm, and LED display for lamp life and total controller run time.
      • Robust Construction: Built with a stainless steel reactor chamber and a fire-polished domed quartz sleeve for durability and consistent performance.
      • Convenient Installation: Pre-assembled on a reversible, heavy-duty, powder-coated steel mounting bracket, simplifying installation and reducing costs.
      • High-Performance UV Lamp: The Sterilume™-HO coated low-pressure germicidal UV lamp provides consistent output over its entire lifespan, with tool-free replacement.
      • Smart Controller: The BA-ICE-CL controller automatically senses line voltage between 100 and 240 volts, ensuring stable UV output despite electrical fluctuations.

      Effective Against Microorganisms

      The VH410-F20 effectively inactivates a wide range of microorganisms, including bacteria like E.coli and viruses, ensuring your water is safe and clean for all household uses.

      Secure Your Home's Water Quality

      Invest in the VIQUA VH410-F20 UV Sterilizer for comprehensive water treatment. This system provides peace of mind, knowing your water is free from harmful contaminants. Perfect for larger homes and light commercial use, this system delivers reliable and economical water purification.



      VIQUA VH410-F20 UV Sterilizer Schematic Diagram

      VIQUA VH410-F20 UV Sterilizer Schematic Diagram

      Specifications

      Viqua VH410-F20 Specifications

      Category Details
      Disinfection Flow Rate - 30 mJ/cm2: 18 GPM (70 lpm)
      Operating Parameters - Max. Operating Pressure: 125 psi
      - Ambient Air Temp: 32°F - 104°F
      - Influent Water Temp: 36°F - 104°F
      - Installation Orientation: Vertical or Horizontal
      Electrical - Voltage: 100-240 VAC
      - Frequency: 50-60 Hz
      - Max Current: 1.0 A
      - Power Consumption: 60W
      Dimensions - Chamber: 17" x 10.5" x 28"
      - Controller: 7.25" x 3-1/4" x 2-1/2"
      - Inlet/Outlet: 1" MNPT Inlet/ 3/4"-1" MNPT Combo Outlet
      - Shipping Weight: 32 lbs
      Options - Dynamic Flow Restrictor: Can be included
      - Temperature Management Valve: Can be included
      - Solenoid Valve: No
      Features - Chamber Material: 304SS
      - UV Sensor: No
      - Visual "Power On": Yes
      - Visual Lamp Life Remaining: Yes
      - Audible Lamp Failure: Yes
      - Audible Lamp Replacement Reminder: Yes
      Replacement Parts - Lamp/Quartz Sleeve Kit: QL-410
      - UV Lamp Only: S410RL-HO
      - Quartz Sleeve Only: QS0-410
      - Controller: BA-ICE-CL
      - Sediment Cartridge: CMB-520-HF (Can use Pentek DGD-5005-20)



      VIQUA VH410-F20 Whole Home Integrated Pre-Filtration UV System Product Resources

      Effortlessly install the Viqua VH410-F20 Whole House Ultraviolet (UV) Sterilizerr using our detailed step-by-step guide and comprehensive specification sheets. Download your free copy below and simplify your installation process today.

      Download Viqua VH410-F20 Whole House Ultraviolet (UV) Sterilizer Specification
      Download Viqua VH410-F20 Whole House Ultraviolet (UV) Sterilizer Owner's Manual
