Connected Series Water Softener Carbon Filter Combo With Bluetooth Control Valve
$2,599.00$2,339.10
- ✓ Fast Free Shipping Within the US
- ✓ 120 Day No Hassle Returns
- ✓ No Sales Tax On All Orders (Outside of MN)
Connected Series Water Softener Carbon Filter Combo With Bluetooth Control Valve

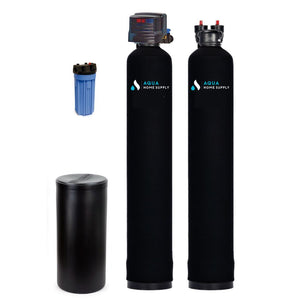

The Connected Series Water Softener Carbon Filter Combo is a two-tank whole-house system for municipal water: a 64,000-grain softener with 10% crosslink resin removes hardness, and an upflow carbon filter loaded with Jacobi granular activated carbon removes chlorine, taste and odor. Both tanks run on Connected Series Bluetooth control valves, so you set up, monitor and adjust the system from your phone instead of the valve faceplate. A Big Blue 5-micron sediment pre-filter, brine tank, bypasses and fittings are all in the box.
What's included
| Component | Specification |
|---|---|
| Control valves | Connected Series Bluetooth control valve on softener and carbon filter |
| Softener | 12″ × 48″ tank, 1.5 cu. ft. 10% crosslink resin, 64,000 grains |
| Carbon filter | 12″ × 48″ tank, 1.5 cu. ft. Jacobi GAC, upflow (no backwash drain required) |
| Sediment pre-filter | Big Blue 5-micron filter with mounting bracket |
| Brine tank | Brine tank with float assembly and salt grid |
| Bypass & fittings | C-Series bypass on both tanks; 1″ or ¾″ John Guest fittings |
| Extras | Weather tank sleeves |
| Service flow | 15 GPM |
| Warranty | 5 years on control valves, 10 years on tanks; free shipping |
Connected Series features

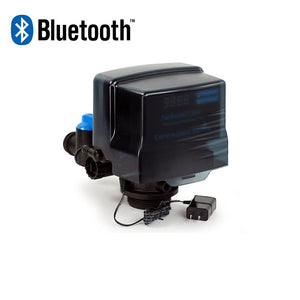

Bluetooth control valve. Pair the valve with the Connected Series app to program regeneration, check remaining capacity, see water usage and get maintenance alerts on your phone. 10% crosslink resin resists chlorine and iron attack better than standard 8% resin, so it lasts longer on treated city water. Upflow carbon filter — water flows up through the Jacobi GAC bed, which uses the whole bed for contact time and doesn't need a backwash cycle or drain line for the carbon tank. Sediment protection — the 5-micron Big Blue housing catches grit before it reaches either valve. Install order is sediment → carbon → softener → house, which also protects the resin from chlorine.
Connected Series vs. Clack and Fleck combo systems
| Feature | Connected Series (this system) | Clack | Fleck |
|---|---|---|---|
| System | Connected Series Softener + Carbon Filter Combo | Clack WS1 Softener + Carbon Filter | Fleck 5600 SXT Softener + Carbon Filter |
| Softener capacity | 64,000 grains (12×48″) | 32K–80K grains | 48K or 64K grains |
| Resin | 10% crosslink | 8% crosslink | 10% crosslink |
| Carbon filter | Upflow, Jacobi GAC | Backwashing or upflow; 7 media options | Backwashing, Jacobi GAC |
| Service flow | 15 GPM | 10–20 GPM by size | Up to 20 GPM |
| Connections | 1″ or ¾″ | ¾″ to 1½″ | 1″ or ¾″ |
| App control | Bluetooth | EZsalt salt-level sensor | — |
| Price | $2,599 | From $2,199 | From $2,299 |
Manuals
Connected Series softener literature (PDF) · Connected Series install & operation manual (PDF)
Questions about sizing for your home or water report? Call 800-374-2143 or request a quote. See all water softener and whole house filter combo systems.
