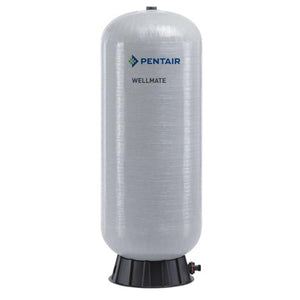

WellMate WM-25WB 87 Gallons Fiberglass Water Pressure Tank

  • ✓ Fast Free Shipping Within the US
  • ✓ 120 Day No Hassle Returns
  • ✓ No Sales Tax On All Orders (Outside of MN)

Notify me when this product is available:

WellMate Fiberglass Water Pressure Tank Features

The Ultimate Well Water Pressure Solution: WellMate WM-25WB 87-Gallon Fiberglass Tank

Step into a world where water storage is no longer a concern. Introducing the WellMate WM-23, an 80-gallon water pressure tank designed with you in mind.

Crafted with corrosion-proof composite, this tank promises durability and longevity. Its lightweight design simplifies installation, saving you both time and money. Unlike traditional steel tanks, the WellMate WM-23 offers unique features that set it apart.

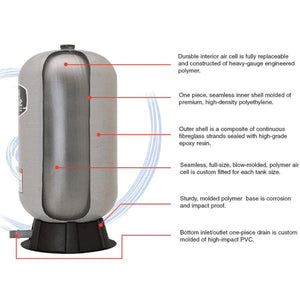

Seamless Construction for Lasting Durability The WellMate WM-23 boasts a blow-molded, fiberglass-wrapped, seamless construction. This means no rust, no dents, and no seams to come apart. It’s a tank built to last.

Quick Connector for Secure Connection This tank features a quick connector that snaps securely into place, retained by an H-clip. This ensures a stable and secure connection, giving you peace of mind.




WM-25WB 87 Gallons Fiberglass Pressure Tank Key Features

Why choose the WellMate WM-25WB 87? Because your home deserves the best.

  • Corrosion-proof: Made with a composite of fiberglass strands sealed with high-grade epoxy resin, eliminating rust, dents, and seam failures.
  • Lightweight: Easier and less expensive to install compared to heavy steel tanks.
  • Seamless Design: Blow-molded and fiberglass-wrapped construction enhances durability and eliminates leakage concerns.
  • Rugged Base: Provides additional stability and support.
  • Water on Demand: With an 87-gallon capacity, enjoy consistent water pressure
  • Pre-pressurized at 38 PSI: Ready for immediate use after installation with proper adjustment.
  • Quick Connector: Simplifies connection to your water system and allows for easy tank replacement.
  • Improved Chlorine Resistance: Suitable for a wider range of water applications.
  • Rotatable Design: Allows access to product specifications even after installation.
  • Safety and Peace of Mind: NSF and FDA listed materials ensure your water stays clean and pure.

So why wait? Order now and experience the difference with the WellMate WM-23 80 Gallons Fiberglass Water Pressure Tank. Your water storage solution is just a click away.



Note: All tanks are pre-pressurized at 38 PSI, and should always be set at 2 PSI below the cut-in of your pressure switch. It is recommended to check tank pressure before installation. Pressure switch settings should not exceed a 20 PSI differential between cut-in and cut-out.



Specifications

WellMate WM-25WB 87 Gallons Fiberglass Water Pressure Tank Specifications



Specifications Detail
Capacity 87 gallons
Maximum Operating Pressure 125 psi
Drawdown in 26.8 / 101.5
Diameter inch cm 24 / 61
Overall height inch cm 55 1/4 / 140
Height inlet outlet to floor 2 1/4 / 5.7
Connections 1" male NPT
Assembly weight  77.2 / 35.0


WellMate WM-25WB 87 Gallons Fiberglass Water Pressure Tank Owner's Manual



Unlock the full potential of your WellMate  WM-23 80 -gallon fibreglass Water Pressure Tank with our complimentary owner's manual.

Discover expert tips, troubleshooting advice, and maintenance insights to ensure optimal performance and longevity for your investment. Don't miss out on this valuable resource – claim your free copy today!
