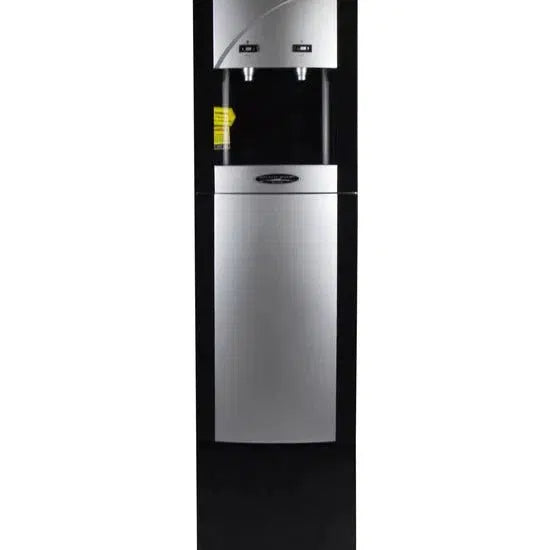

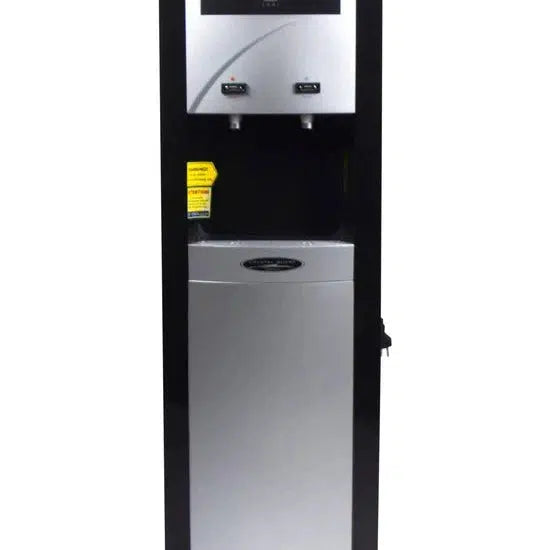

Crystal Quest TURBO Ultrafiltration Bottleless Water Cooler with Reverse Osmosis System

Experience Pure Hydration with the Crystal Quest TURBO Ultrafiltration Bottleless Water Cooler with Reverse Osmosis System

Are you seeking a sustainable and efficient solution for your hydration needs? Our reverse osmosis water cooler is here to revolutionize your experience.

The Crystal Quest TURBO Ultrafiltration Bottleless Water Cooler with Reverse Osmosis System is not just a water cooler, it’s a complete hydration solution. With its built-in ultrafiltration and reverse osmosis system, it delivers pure, crisp water on demand, eliminating the need for bottled water. It’s a water cooler with an RO system that ensures every drop you drink is free from contaminants.

How Does it Work

Ultrafiltration (UF) Technology: The TURBO cooler incorporates ultrafiltration, utilizing a .02 micron membrane that significantly reduces micro-organisms and lowers Total Suspended Solids (TSS) without producing wastewater. This initial stage is crucial for lessening the burden on the subsequent RO system, ensuring longer lifespan and greater efficiency.

Reverse Osmosis (RO) Enhancement: Following UF, the water undergoes reverse osmosis, a robust purification process that employs a semipermeable membrane to remove larger particles and a wide range of contaminants. The RO system complements the UF by targeting elements that are too large for the ultrafiltration membrane, with waste products conveniently flushed away via a drain line connected to your kitchen drainage system.

Ideal for anyone looking for a reverse osmosis water cooler, RO water dispenser, or a water cooler with RO system, the Crystal Quest TURBO Ultrafiltration Bottleless Water Cooler ensures you have access to the freshest and cleanest water anytime. Upgrade to a smarter, more sustainable water solution today.

Why choose the Crystal Quest TURBO Ultrafiltration Bottleless Water Dispenser with RO System?

• Built-in Filtration System: Combines UF and RO technologies for unparalleled water purity.
• Ease of Use: Features separate hot and cold power switches and simple controls for temperature management.
• Automatic Temperature Control: Maintains precise hot and cold temperatures, with an auto shut-off function for safety.
• Efficient Cooling System: Equipped with a high-efficiency sealed compressor for consistent cooling.
• Durable Construction: Boasts Type 304 stainless steel tanks for both hot and cold water, ensuring longevity and hygiene.

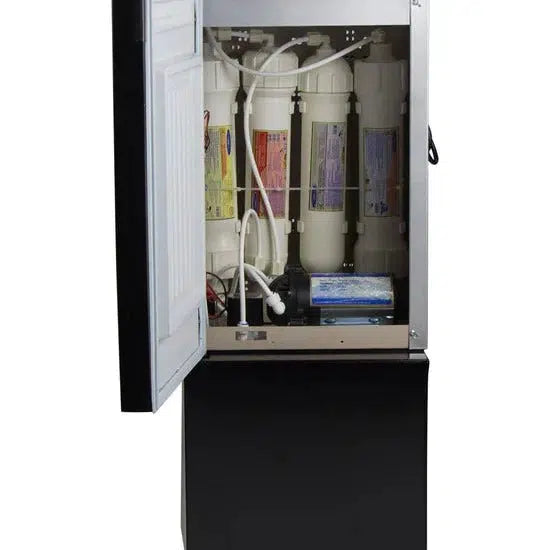

• Maintenance Simplicity: The front panel allows easy access for quick service and filter replacement.


	TURBO UF	TURBO UF/RO	SHARP UF	SHARP UF/RO	Hybrid UF	Hybrid UF/RO
No Plastic Jugs
Cold Water
Hot Water
Child Safety for Hot Water
UltraFiltration (UF)
Reverse Osmosis (RO)
Waste Water
Stainless Steel Holding Tank
Polypropylene Holding Tank

This reverse osmosis water cooler is not just a RO water dispenser but a comprehensive water system that ensures your water is both safe and delicious. Ideal for both homes and offices, the Crystal Quest Turbo ensures that you have access to clean, temperature-controlled water at all times.

Crystal Quest TURBO Ultrafiltration Bottleless Water Cooler's FAQs

Q: What pressure range does my Water Cooler run in?
A: Each of our Water Cooler units is designed to run between 30 - 60 psi.

Q: Can I sit my cup or bottle on the Drip Tray when filling it?
A: Do not use the Drip Tray to support any type of container when filling from the unit.

Q: How can I remove the tubing from a Compression Fitting?
A: Compression Fittings are the style of fitting found on all of our Filter Cartridges, each one marked by a distinctive hexagon-shaped plastic cap. To remove the tubing: Unscrew the plastic cap by turning it counterclockwise, then remove both the cap and the tubing from the fitting. Be cautious not to over-tighten the cap when reinstalling the tubing to the fitting.

Q: How can I remove the tubing from a Quick Connect Fitting?
A: Quick Connect Fittings are the style of fitting found on most of the internal components of your unit, each one marked by a distinctive blue clasp directly below the lip of the fitting inlet. To remove the tubing: Locate the small blue clasp and remove it. Next, you will press down on the lip of the fitting with one hand while gently pulling the tubing out with the other. To replace the fitting: Press down on lip of the fitting, push the tubing firmly in, release the fitting lip, then reinstall the blue clasp.
ter filter tubing

Q: My Reverse Osmosis Membrane looks different from the other filters, how to I replace it?
A: The Reverse Osmosis Membrane is the only filter on the machine that needs to be removed from its housing when being replaced. Unscrew the Membrane cap from the housing, turning counterclockwise to loosen. Once the cap is off, remove the previous RO Membrane by lifting it from the housing with a pair of pliers by its exposed nozzle. Next install the new Membrane, making sure to insert it into the housing by the nozzle which has the two small o-rings, pictured below:

Q: Why doesn't my water cooler produce hot/cold water?
A: COOLING: The first thing you are going to want to do is check the back of the water cooler to see if both cooling element switch is turned to the "on" position. If it is, you will need to locate the thermostat screw at the top of the water cooler. It would be behind the yellow sticker at the top of the system labeled "Thermostat". Turn that screw counterclockwise (to the left) to lower the thermostat and allow the compressor to kick on. You may not hear the compressor kick on at first, but give the system at least 15 minutes before testing the cold-water spout. This should take care of the issue but if not, call us directly to speak to Technical Support.

HEATING: What you are going to want to do is make sure the heating element switch is turned to the "on" position in the back of the water cooler. If the switch is turned to the "on" position, locate the heating tank (towards the middle of the tank). There will be two sets of wires connected to the back of the tank. Look at the second set of wires (the bottom set). There will be a small black button between the set of wires which would be the heating tank reset switch. Press and hold that reset switch for 5 seconds and allow the tank 15 minutes to start the heating process before testing the hot water spout. This should take care of the issue but if not, call us directly to speak to Technical Support.

Q: I am experiencing a leak with my water cooler, why?

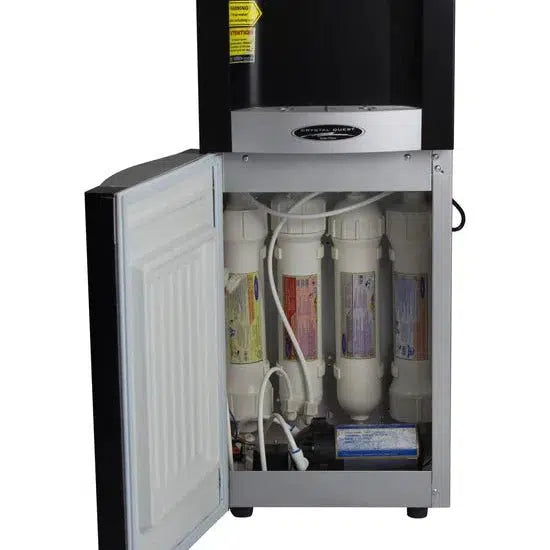

A: When experiencing a leak within your system, you want to figure out exactly where the leak is coming from. If this is a floor standing water cooler, open the front panel of the system to reveal the cartridges.

 Check each connection between the filters to make sure they are secure. If the connections or the cartridges are the problem, call us directly to speak to a technician. If your connections and cartridges are not the cause for the leak, remove the hat (top) of the water cooler to expose the reservoir tank. You can access the top of the reservoir tank by removing the screws at the back of the water cooler towards the top.

After you have taken off the hat of the water cooler, remove the transparent plastic lid on top of the reservoir tank. If the tank is full and you still hear the pump trying to produce water, call in directly to speak to a technician to help solve the issue for you. These are the primary areas that would cause the system to leak, however, if you have checked both areas and cannot identify where the leak is originating from, call us to speak to a technician.

Q: Why aren't the element lights on?
A: If your water cooler element (Heating/Cooling) lights are not on, check the back of the water cooler to make sure the element switches are turned to the "on" position. If they are turned to the "on" position and still not allowing the element lights to come on, check the power source to make sure the water cooler is plugged in. IF the water cooler is plugged in and still not lighting up, call us directly to speak to a technician as you may need to replace the fuse.

Specifications

Specifications

Replacement Cartridges

Installation Instructions:

Ensure the safety and effectiveness of your Crystal Quest TURBO Ultrafiltration Bottleless Water Cooler by getting your hands on the essential installation manual and safety reminders today. Don’t miss out on maximizing your device’s efficiency—download your free copy now and step into a world of pure, clean water at your convenience.
