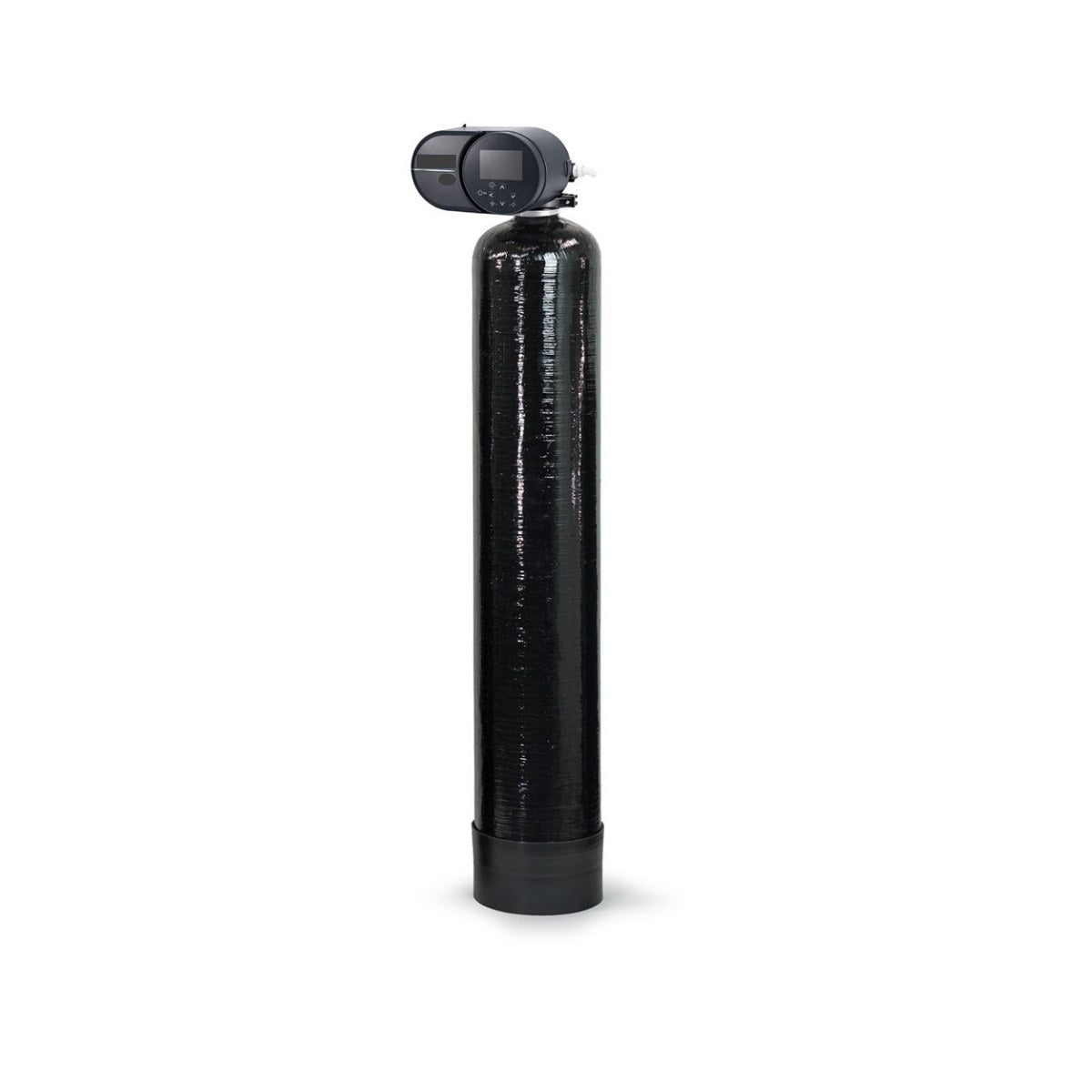

Fleck 2510 AiQ Backwashing Carbon Filter
$1,199.00 - $1,599.00$1,079.10 - $1,439.10
- ✓ Fast Free Shipping Within the US
- ✓ 120 Day No Hassle Returns
- ✓ No Sales Tax On All Orders (Outside of MN)
Fleck 2510 AiQ Backwashing Carbon Filter
The Fleck 2510 AiQ Backwashing Carbon Filter pairs the Pentair Fleck 2510 valve and new AiQ controller with your choice of five premium catalytic or coconut shell carbons. Choose coconut shell carbon for chlorine, taste and odor, or catalytic carbon for chloramine and hydrogen sulfide. It replaces the discontinued Fleck 2510 SXT carbon filter.
Unlike cartridge filters, it cleans itself. The AiQ valve lifts and rinses the carbon bed on schedule, which keeps flow high and gets the full life out of the media.
Warranty: 5 years on the Fleck 2510 AiQ valve head and 10 years on the tank. See the full Fleck 2510 AiQ spec sheet (PDF).
Choose Your Carbon
| Carbon | Type | Base | Best For | Buy Media Only |
| Calgon OLC 12x30 | Standard | Coconut Shell | Chlorine, taste, odor, general organics | Calgon Coconut Shell Carbon |
| Jacobi AquaSorb CS 12x40 | Standard | Coconut Shell | Chlorine, THMs, low molecular weight organics | Jacobi Coconut Shell Carbon |
| Calgon Centaur-C 12x40 | Catalytic | Coconut Shell | Chloramine, hydrogen sulfide | Centaur Coconut Shell Carbon |
| Calgon Centaur 12x40 | Catalytic | Bituminous Coal | Chloramine, hydrogen sulfide | Centaur Catalytic Carbon |
| Jacobi AquaSorb CX-MCA 12x40 | Catalytic | Coconut Shell | Chloramine, hydrogen sulfide, THMs | Jacobi Catalytic Carbon |
Rule of thumb: on city water treated with chlorine, a standard coconut shell carbon is enough. If your city uses chloramine, or your well has a sulfur smell, choose a catalytic carbon.
What's Included

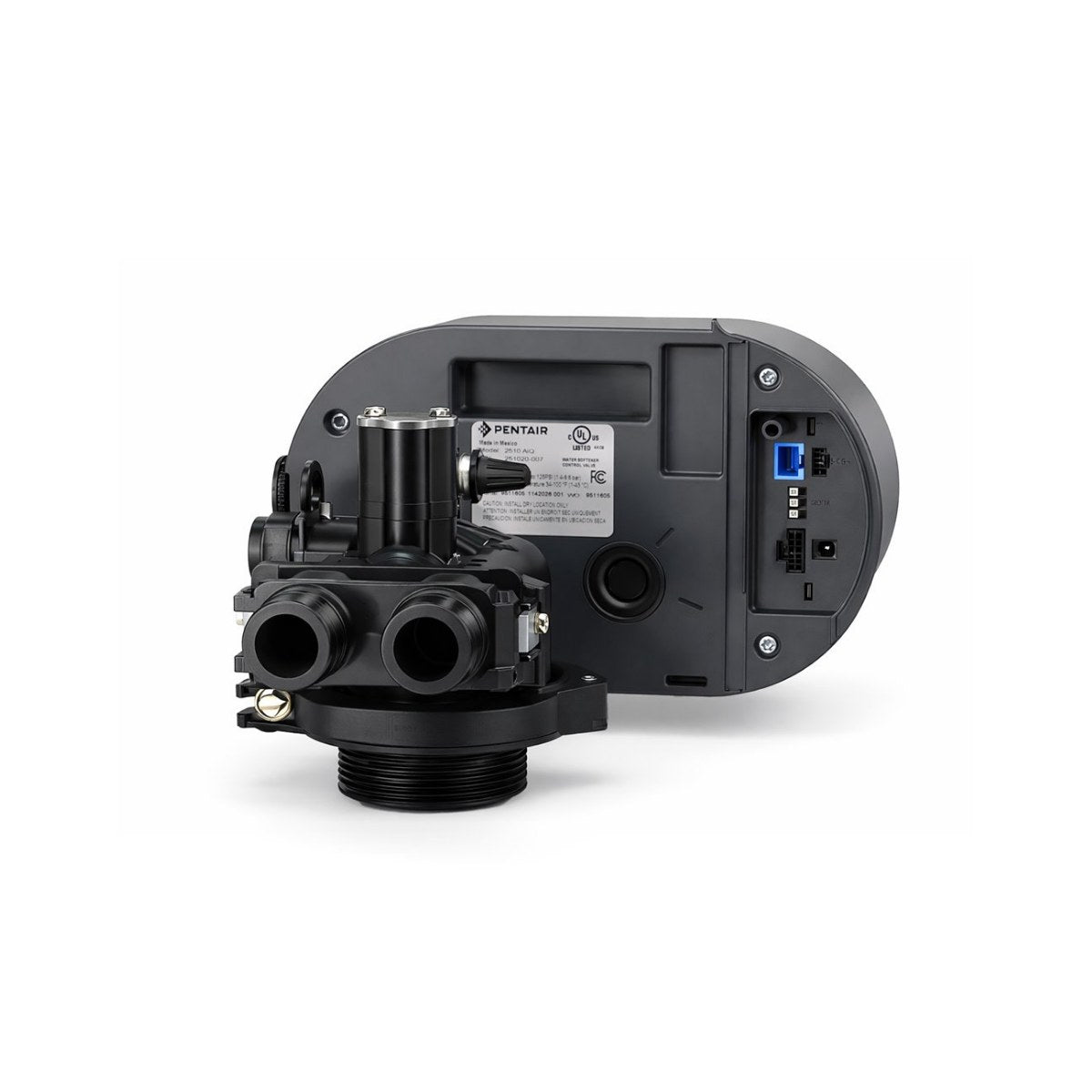

- Fleck 2510 AiQ Backwash Control Valve
- Pentair Mineral Tank with Gravel Underbed
- Carbon Media of Your Choice (ships separately, loaded on site)
- 3/4" Stainless Steel Bypass Valve
- 50' Clear Poly Drain Line
- Media Funnel
- Free Replacement Parts for Life
- 5 Year Warranty on Valve Head (10 Years on Tank)
Fleck 2510 AiQ Carbon Filter Key Features
- Treats Every Tap: Filters water for every faucet, shower and appliance, not just the kitchen sink.
- Five Carbon Options: Coconut shell carbon for chlorine, or catalytic carbon for chloramine and hydrogen sulfide.
- Self-Cleaning Backwash: The AiQ valve backwashes and rinses the carbon bed automatically, with no cartridges to change.

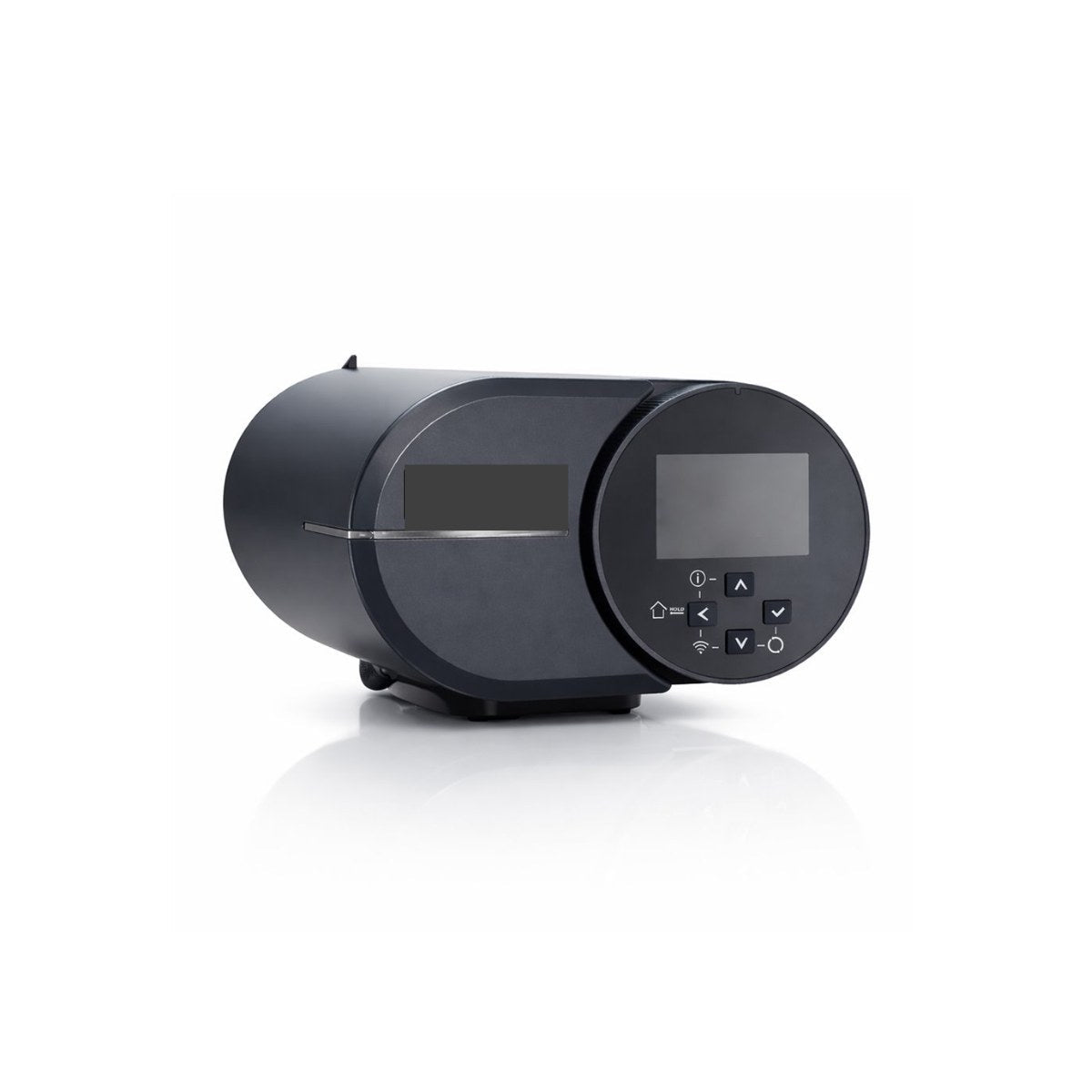

- Full-Color AiQ Display with Quick Start Menu: Plain-language menus and fast setup.
- USB-C Port and Benchtop Programming: Program before installation, update software, and pull usage history and diagnostics.
- Field-Updateable Controller: Software updates keep the valve current without new hardware.
- Wrap-Around Light Bar: System status visible from multiple angles.
- Modular Powerhead: 4-step teardown, easy grip handle and a backplate hook for service.
- NEMA 3R / IP54 Rated: Built for garages, basements and wet locations.
How the Fleck 2510 AiQ Carbon Filter Works
- Filter: Water flows down through the carbon bed, where chlorine, chloramine, organics and odors are adsorbed or catalytically broken down.
- Backwash: On a set schedule, the AiQ valve reverses flow to lift the bed, release trapped particles and prevent channeling.
- Rinse: A fast rinse resettles the bed, then the filter returns to service.
Pair it with a Fleck 2510 AiQ Water Softener for soft, dechlorinated water throughout the house. Prefer a Clack valve? See our backwashing carbon filter for whole house.
Fleck 2510 AiQ Carbon Filter Specs
| Valve | Fleck 2510 with AiQ Controller and Powerhead |
| Valve Material | Fiber-Reinforced Polymer |
| Inlet/Outlet | 3/4" Stainless Steel Bypass |
| Regeneration | Downflow Service, Backwash and Rinse |
| Regeneration Trigger | Time Clock |
| Cycle Times | Adjustable, 0–240 min per cycle |
| Max Valve Backwash | 17 GPM (25 psi drop) |
| Drain Line | 1/2" OD Clear Poly Tube |
| Working Pressure | 20–125 psi |
| Water Temperature | 34–110°F |
| Electrical | 110V, 50/60 Hz (24/220V available) |
| Enclosure Rating | NEMA 3R / IP54 |
| Programming | On-Board or USB-C |
| Warranty | 5 Years on Valve Head, 10 Years on Tank |
Flow Rates by Tank Size
| Tank | Media | Service Flow | Backwash |
| 10" x 44" | 1 cu. ft. | 2 GPM | 5 GPM |
| 10" x 54" | 1.5 cu. ft. | 2 GPM | 5 GPM |
| 12" x 48" | 2 cu. ft. | 3 GPM | 7 GPM |
| 13" x 54" | 2.5 cu. ft. | 3.5 GPM | 10 GPM |
Carbon Media Specs
| Carbon | Mesh | Iodine Number (min) | Certification |
| Calgon OLC | 12x30 | 900 mg/g | NSF/ANSI 61 |
| Jacobi AquaSorb CS | 12x40 | 1,000 mg/g | NSF 61, AWWA B604 |
| Calgon Centaur-C | 12x40 | 900 mg/g | AWWA B604, FCC |
| Calgon Centaur | 12x40 | 825 mg/g | AWWA B604, FCC |
| Jacobi AquaSorb CX-MCA | 12x40 | 1,000 mg/g | NSF 61 & 42, AWWA B604 |
Fleck 2510 AiQ Carbon Filter FAQ
What does the Fleck 2510 AiQ carbon filter remove?
With coconut shell carbon it removes chlorine, taste, odor, color and organic chemicals such as THMs. With catalytic carbon it also removes chloramine and hydrogen sulfide.
What is catalytic carbon, and do I need it?
Catalytic carbon is activated carbon with an enhanced surface that breaks down chloramine and hydrogen sulfide, which standard carbon handles poorly. Choose it if your city uses chloramine, or if your water has a rotten egg smell.
Coconut shell or coal-based carbon?
Coconut shell carbon is harder and has a higher iodine number (900–1,000 mg/g), so it adsorbs well and holds up to backwashing. Centaur's coal-based catalytic carbon is the original chloramine carbon and a proven choice for chloramine and sulfur.
Why a backwashing filter instead of cartridges?
A backwashing filter cleans its own bed, keeps full household flow and only needs new carbon every few years. There are no cartridges to buy or swap.
How often should I replace the carbon?
It depends on water use and chlorine levels. Most homes rebed every 3–5 years. Each carbon is also sold on its own for rebedding.
Do I also need a water softener?
Carbon doesn't remove hardness. For hard water, pair it with a Fleck 2510 AiQ Water Softener.
Is the Fleck 2510 SXT carbon filter discontinued?
Yes. Pentair has discontinued the 2510 SXT. The 2510 AiQ replaces it, with a full-color display, USB-C programming and a modular powerhead.
What's the warranty?
5 years on the Fleck 2510 AiQ valve head and 10 years on the tank.
How We Handle Shipping
At Aqua Home Supply, we take pride in delivering your water treatment systems safely and efficiently.
- Freight Shipping with Liftgate Service: Whole home and commercial systems are shipped via LTL freight on a pallet to ensure secure handling and protection during transit.
- Professionally Boxed & Labeled: Each unit is boxed in reinforced packaging designed for its size, with clear system illustrations and handling indicators to ensure accurate delivery and minimal risk of damage.
- Curbside Delivery: Orders are delivered curbside to your business or residence. If liftgate service is needed, we include it at no extra charge—no forklift required.
- Tracking & Coordination: Once your system ships, you'll receive full tracking details and freight contact info to coordinate delivery directly with the carrier.
- Ready to Install: Systems arrive pre-assembled or partially pre-loaded depending on the model. All necessary components are included for a smooth install.
Fast, secure, and worry-free—your new water system arrives job-ready.
Fleck 2510 AiQ Carbon Filter Documents
