Fleck 2510 AiQ Sediment Filter for Well Water
$1,198.80 - $1,834.80$1,078.92 - $1,651.32
- ✓ Fast Free Shipping Within the US
- ✓ 120 Day No Hassle Returns
- ✓ No Sales Tax On All Orders (Outside of MN)

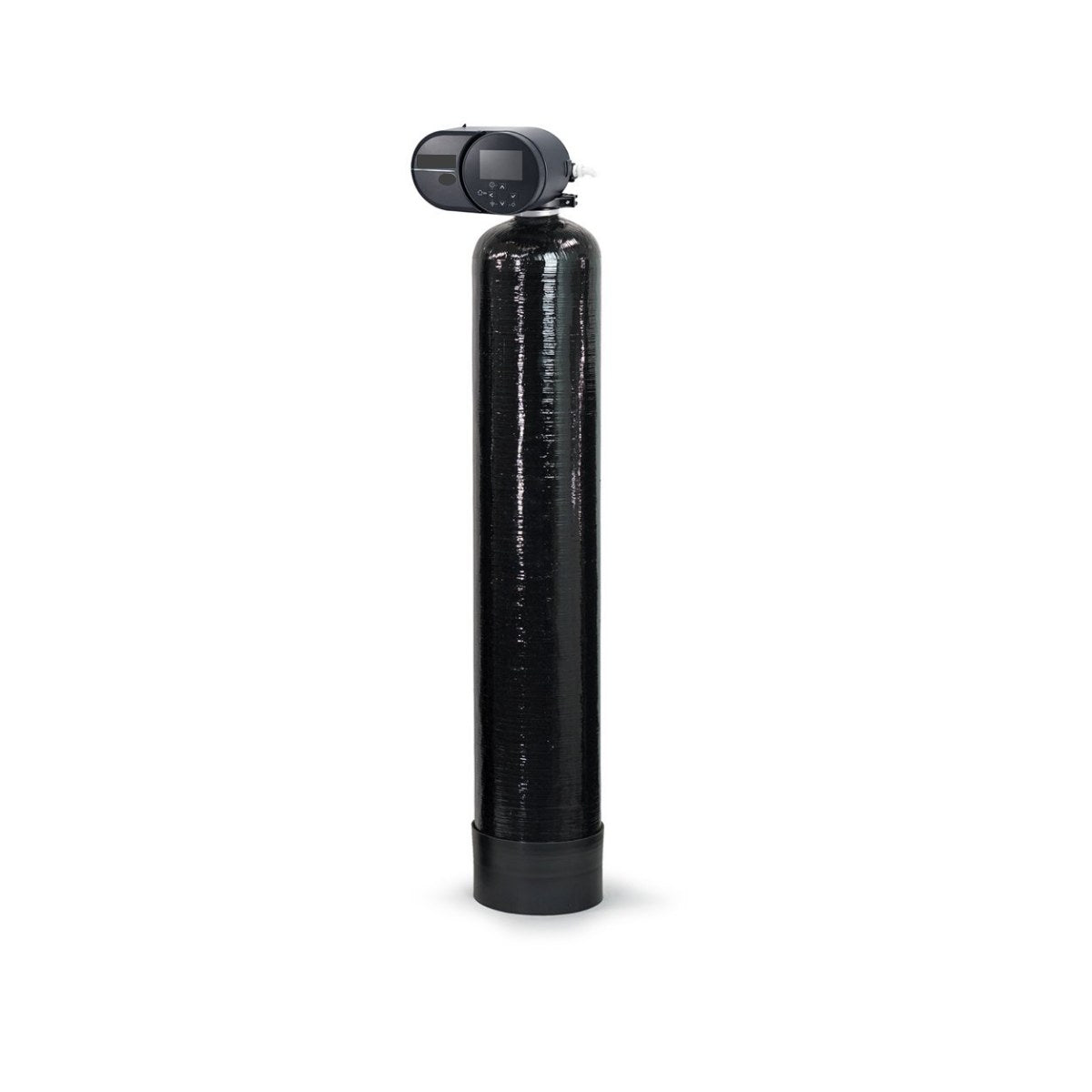

Fleck 2510 AiQ Sediment Filter for Well Water
The Fleck 2510 AiQ Sediment Filter is a well water sediment filter that removes sand, silt, rust particles and cloudiness. It pairs the Pentair Fleck 2510 valve and new AiQ controller with your choice of Turbidex or Clack Filter Ag Plus, two lightweight, high-capacity filter media that filter far finer than a sand bed.
The AiQ valve flushes the captured sediment to drain on schedule, with no cartridges to replace.
Warranty: 5 years on the Fleck 2510 AiQ valve head and 10 years on the tank. See the full Fleck 2510 AiQ spec sheet (PDF).
Choose Your Media
| Turbidex | Clack Filter Ag Plus | |
| Filtration | 3–5 microns; turbidity below 0.1 NTU | 5 microns or less |
| Media Type | Natural zeolite | Lightweight granular filter media |
| Best For | Cloudy or muddy wells, heavy sediment and very fine silt | Moderate sediment loads and general particle removal |
| Sediment Capacity | Up to 1.5x multimedia and 2.8x sand | Deep-bed filtration |
| Buy Media Only | Turbidex | Contact us |
What's Included

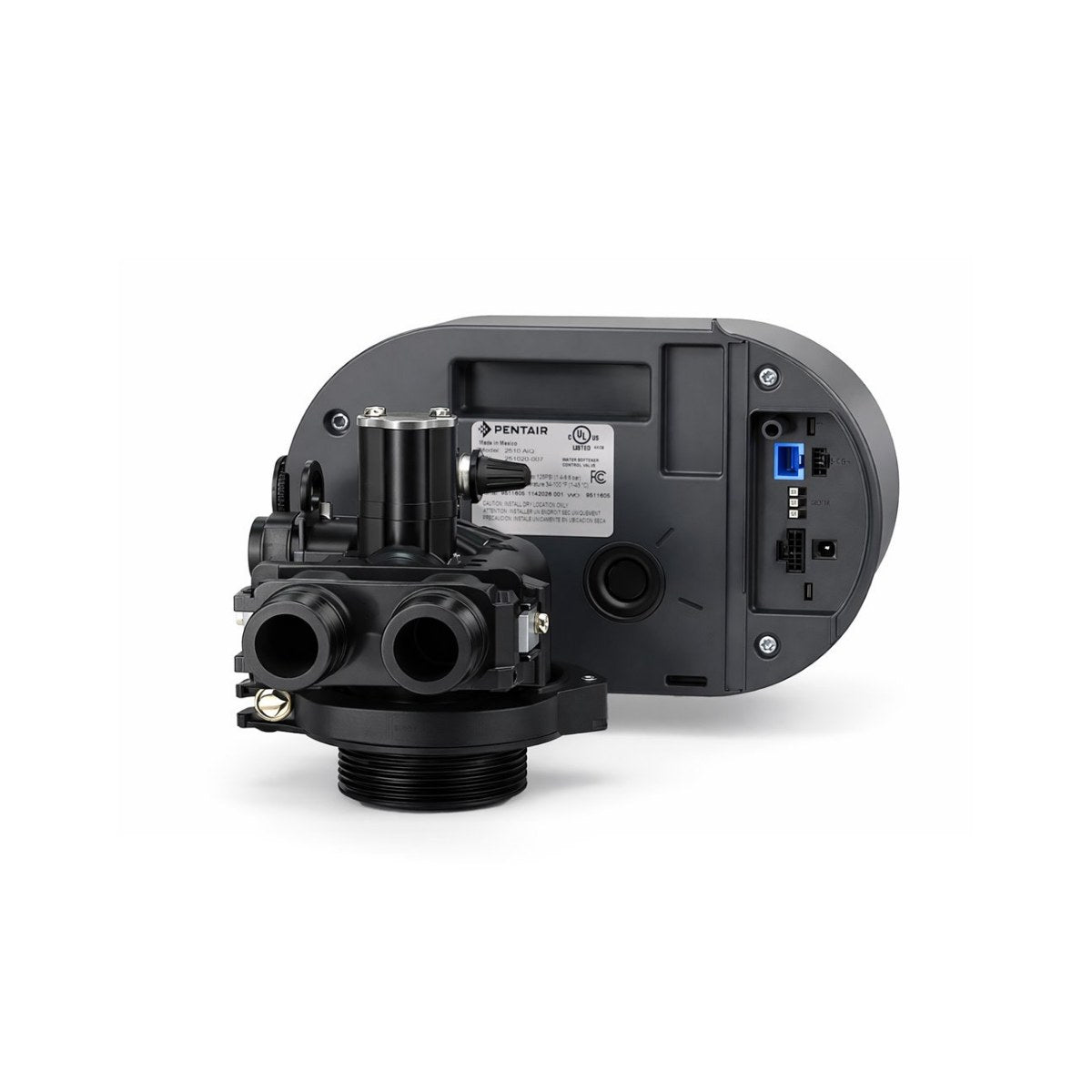

- Fleck 2510 AiQ Backwash Control Valve
- Pentair Mineral Tank with Gravel Underbed
- Turbidex or Filter Ag Plus Media (ships separately, loaded on site)

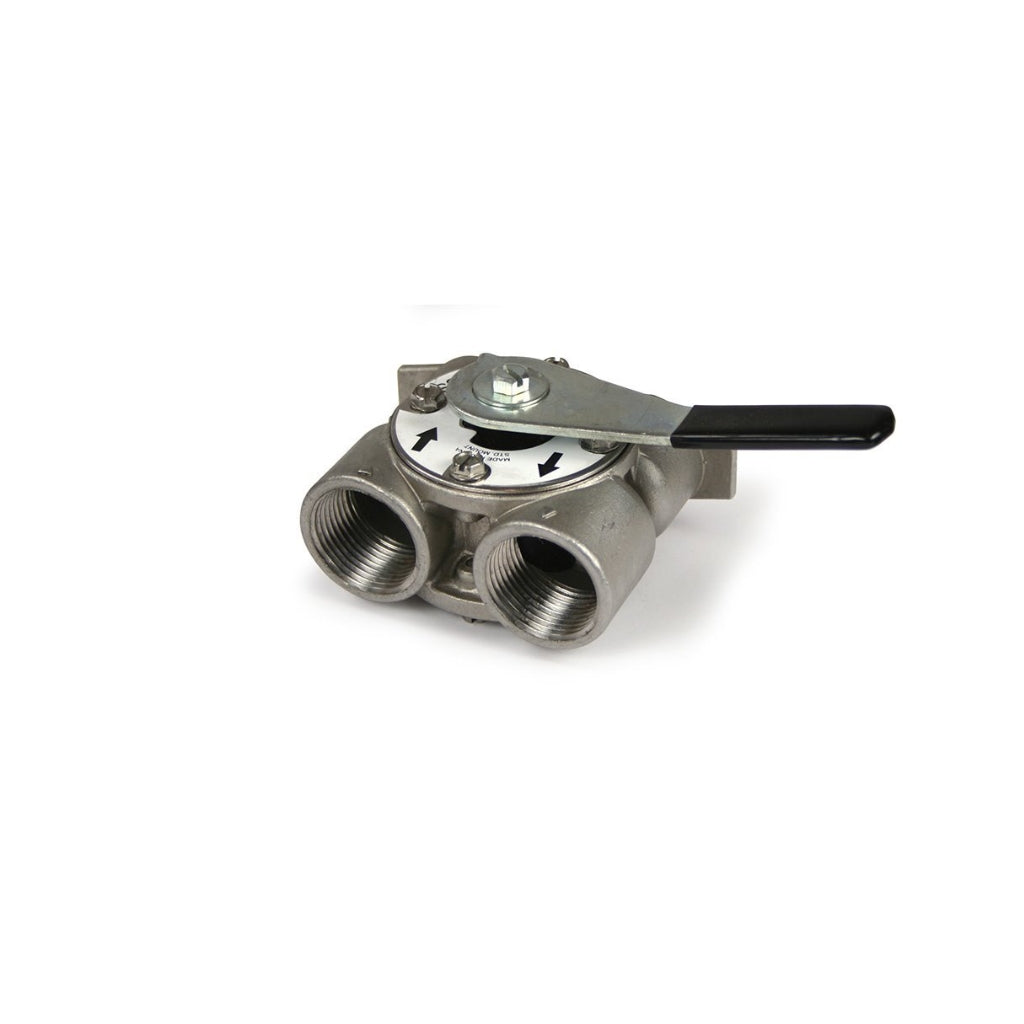

- 3/4" Stainless Steel Bypass Valve

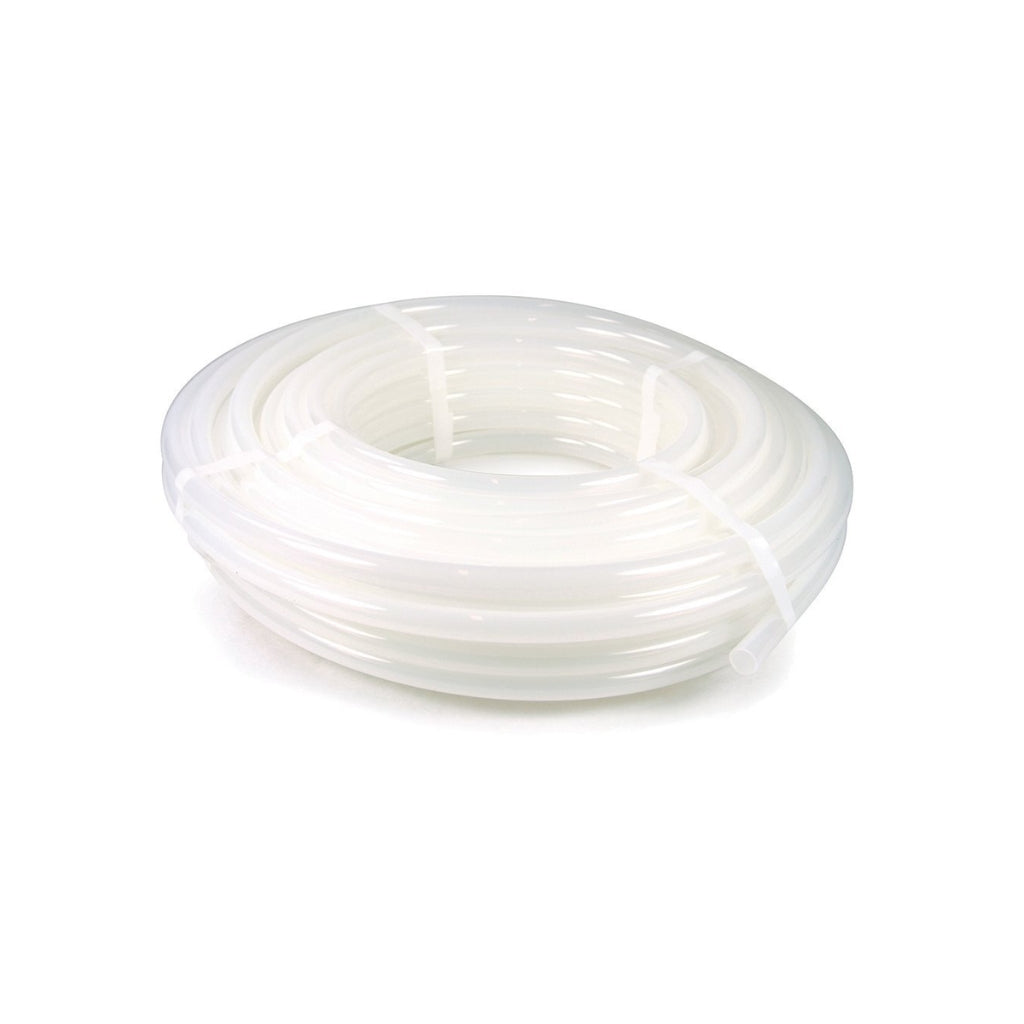

- 50' Clear Poly Drain Line

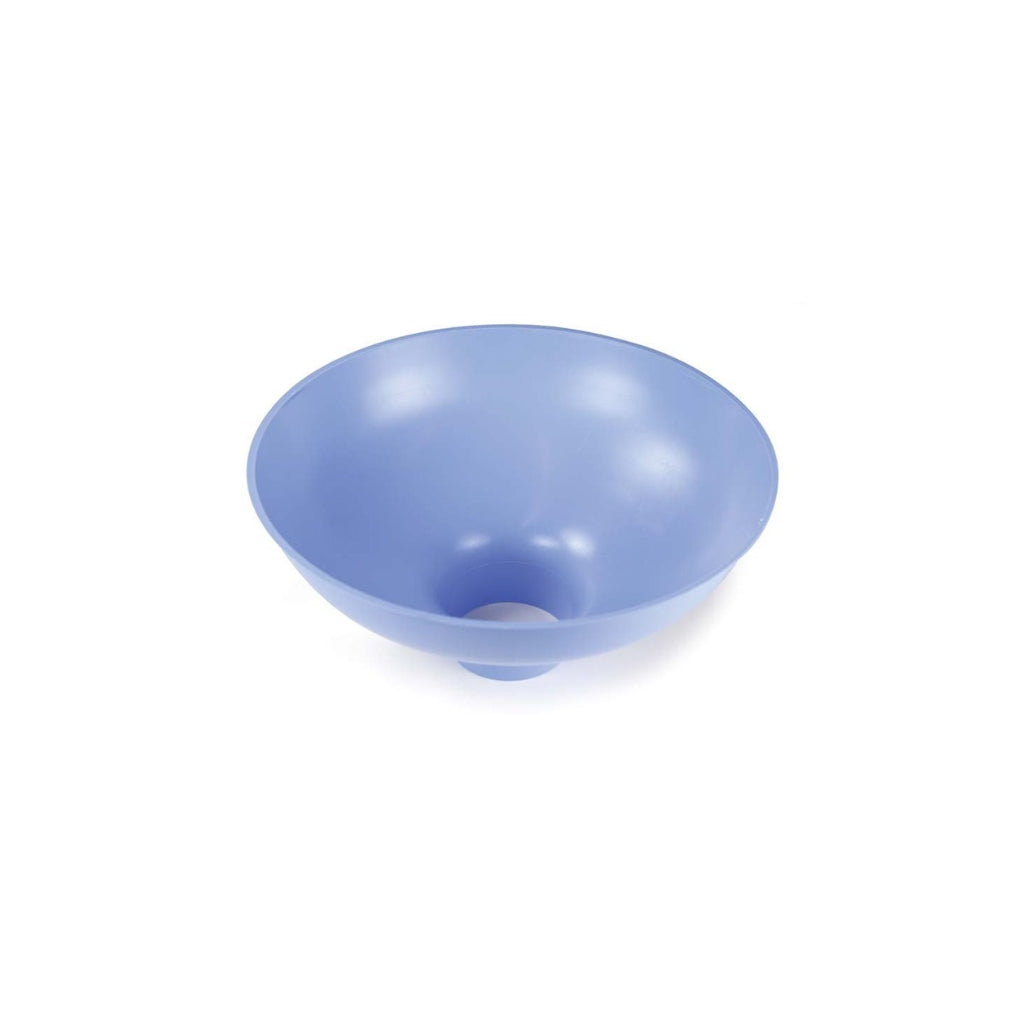

- Media Funnel
- Free Replacement Parts for Life
- 5 Year Warranty on Valve Head (10 Years on Tank)
Fleck 2510 AiQ Sediment Filter Key Features
- Two Media Options: Turbidex for very fine silt and turbidity down to 3–5 microns, or Filter Ag Plus for general sediment down to 5 microns.
- Clearer Well Water: Removes the sand, silt and cloudiness that stain fixtures and clog aerators.
- Protects Downstream Equipment: Keeps sediment out of softeners, UV systems, RO membranes and fixtures.
- Self-Cleaning Backwash: The AiQ valve flushes trapped sediment to drain on schedule, with no cartridges to change.

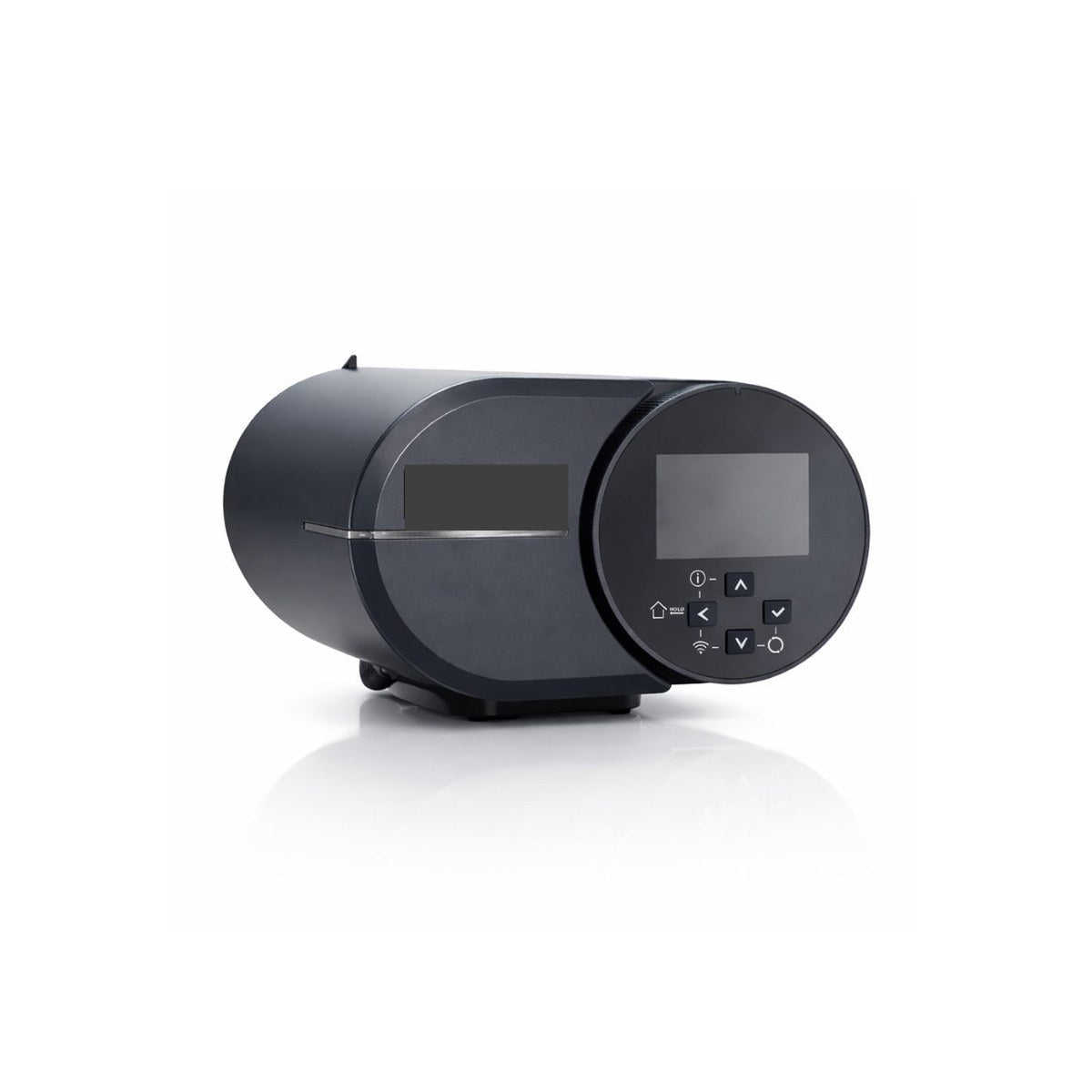

- Full-Color AiQ Display with Quick Start Menu: Plain-language menus and fast setup.
- USB-C Port and Benchtop Programming: Program before installation, update software, and pull usage history and diagnostics.
- NEMA 3R / IP54 Rated: Built for garages, basements, well houses and wet locations.
How the Fleck 2510 AiQ Sediment Filter Works
- Filter: Well water flows down through the media bed, which traps sand, silt and fine particles.
- Backwash: On a set schedule, the AiQ valve reverses flow to lift the bed and flush the captured sediment to drain.
- Rinse: A fast rinse resettles the bed, then the filter returns to service.
Install it first in line to protect a Fleck 2510 AiQ Water Softener or other treatment downstream. Prefer a Clack valve? See our backwash sediment filter.
Fleck 2510 AiQ Sediment Filter Specs
| Valve | Fleck 2510 with AiQ Controller and Powerhead |
| Valve Material | Fiber-Reinforced Polymer |
| Inlet/Outlet | 3/4" Stainless Steel Bypass |
| Regeneration | Downflow Service, Backwash and Rinse |
| Regeneration Trigger | Time Clock |
| Cycle Times | Adjustable, 0–240 min per cycle |
| Max Valve Backwash | 17 GPM (25 psi drop) |
| Working Pressure | 20–125 psi |
| Water Temperature | 34–110°F |
| Electrical | 110V, 50/60 Hz (24/220V available) |
| Enclosure Rating | NEMA 3R / IP54 |
| Media | Turbidex or Clack Filter Ag Plus (Ships Separately) |
| Media Service Flow | Turbidex: 12–20 gpm/ft²; Filter Ag Plus: 6–15 gpm/ft² |
| Media Backwash Rate | 14–18 gpm/ft² (both media) |
| Freeboard | 50% of Bed Depth |
| Media Certification | Filter Ag Plus: NSF/ANSI/CAN 61 |
| Warranty | 5 Years on Valve Head, 10 Years on Tank |
Flow Rates by Tank Size
| Tank | Media | Service Flow: Turbidex | Service Flow: Filter Ag Plus | Backwash Needed |
| 10" x 44" | 1.25 cu. ft. | 6.5–10.9 GPM | 3.3–8.2 GPM | 7.6–9.8 GPM |
| 10" x 54" | 1.5 cu. ft. | 6.5–10.9 GPM | 3.3–8.2 GPM | 7.6–9.8 GPM |
| 12" x 48" | 2 cu. ft. | 9.4–15.7 GPM | 4.7–11.8 GPM | 11.0–14.1 GPM |
| 13" x 54" | 2.5 cu. ft. | 11.1–18.4 GPM | 5.5–13.8 GPM | 12.9–16.6 GPM |
Fleck 2510 AiQ Sediment Filter FAQ
What does a well water sediment filter remove?
Sand, silt, clay, rust flakes and other suspended particles that make well water gritty or cloudy.
Turbidex or Filter Ag Plus?
Choose Turbidex for cloudy or muddy wells with very fine silt. It filters down to 3–5 microns and holds more sediment between backwashes. Filter Ag Plus is a strong all-around choice for moderate sediment, filtering down to 5 microns.
Does my well pump need to handle the backwash?
Yes. Check the Backwash Needed column in the flow table. Your well pump must deliver at least that flow for the size you choose.
Where does it go in my system?
First in line, after the pressure tank and before any softener, iron filter, UV or RO system, so it protects everything downstream.
How often does the media need replacing?
Backwashing cleans the bed, so both media last for years. When it's time, replacement media is available.
What's the warranty?
5 years on the Fleck 2510 AiQ valve head and 10 years on the tank.
