Crystal Quest High Flow Industrial Reverse Osmosis System (10,000–50,000 GPD)
$17,965.20 - $63,809.90$16,168.68 - $57,428.91
- ✓ Fast Free Shipping Within the US
- ✓ 120 Day No Hassle Returns
- ✓ No Sales Tax On All Orders (Outside of MN)
Commercial or custom pricing available for this system.

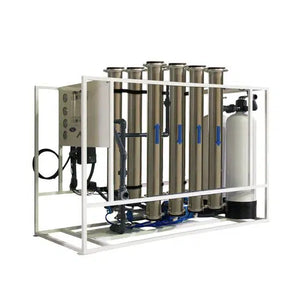

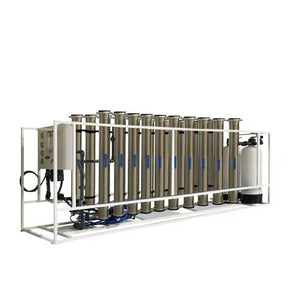

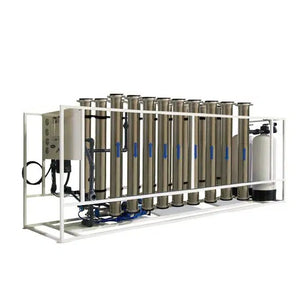

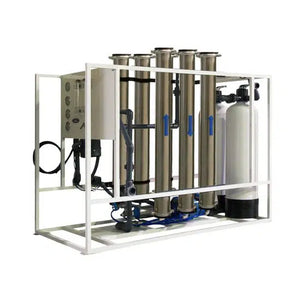

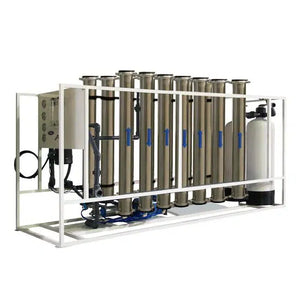

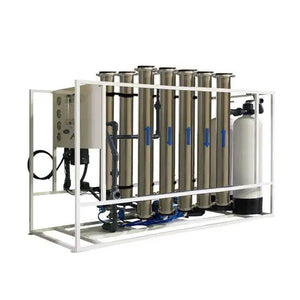

Crystal Quest High Flow Industrial Reverse Osmosis System, 10,000–50,000 GPD
An industrial reverse osmosis system for operations that need 7 to 35 gallons per minute of purified water around the clock: bottling and beverage plants, breweries, multi-site car washes, hospitals, hotels and resorts, food processing, boiler and cooling-tower feed, greenhouses and manufacturing. Six sizes from 10,000 to 50,000 gallons per day, each skid-mounted, pre-plumbed, pre-wired, factory tested and controlled by a Crystal Quest C-150 microprocessor.
Choose your size by daily demand (10,000 GPD ≈ 7 GPM of purified water; 50,000 GPD ≈ 35 GPM). All sizes include a 9″ × 48″ pre-treatment vessel with 0.5-micron zeolite and coconut shell activated carbon, TDS displays for feed and permeate, and full automatic controls.
- Thin-film composite 4040 membranes in stainless steel housings; 96–98.5% NaCl rejection
- Centrifugal high-pressure pump (1.5–5 HP by size), 110/220 V, 50/60 Hz
- C-150 microprocessor controller with pre-treatment lockout, feed flush and high-TDS alarm; Ethernet upgrade available
- Made in the USA, factory tested and preserved; freight delivery coordinated with your site
Sizing guide, full specifications, controls, manuals and schematics are below. These systems are quoted with pre-treatment for your water: call 800-374-2143 or use Request a Quote and send a recent water analysis.
Which size does your operation need?
Size by purified water used on your busiest day with 20–30% headroom, and confirm your feed supply meets the minimum flow and 45 psi minimum pressure in the specification table. Production is continuous into a storage tank; the tank and repressurization system handle peak draw.
| System size | Purified water | Typical applications |
|---|---|---|
| 10,000–15,000 GPD | 7–10 GPM | Multi-bay car washes, mid-size breweries and beverage, hotels, restaurants groups and commissaries, dialysis and medical facilities, commercial greenhouses |
| 20,000–30,000 GPD | 14–21 GPM | Bottling plants, food processing, hospitals, resorts, boiler and cooling-tower makeup, mid-size manufacturing, agriculture |
| 40,000–50,000 GPD | 28–35 GPM | Large bottling and dairy, industrial process water, power and steam generation makeup, campus and municipal-scale supply, large greenhouse and livestock operations |
Need 7,000 GPD or less? See the commercial reverse osmosis system (500–7,000 GPD).
Feed water limits. These systems are rated for feed water up to 15 grains per gallon hardness and 2,000 ppm TDS, pH 3–11, with iron, manganese, chlorine and turbidity handled ahead of the membranes. On hard feed a commercial softener or antiscalant dosing protects the membranes; on well water an iron filter; on municipal water carbon dechlorination. The included zeolite/carbon vessel handles sediment and residual chlorine; larger pre-treatment is specified from your water test.
Specifications
All sizes: 110/220 V, 50/60 Hz; 45 psi minimum feed pressure; 150 psi operating pressure; 4040 TFC HF1 membranes; 96% minimum and 98.5% maximum NaCl rejection; maximum hardness 15 gpg; maximum TDS 2,000 ppm; pH 3–11; concentrate recirculation optional.
| System | Model | Dimensions (W × D × H) | Membranes | Motor | Feed / product / waste | Minimum feed flow | Auto flush |
|---|---|---|---|---|---|---|---|
| 10,000 GPD | CQE-CO-02031 | 49″ × 33″ × 54″ | 6 | 1.5 HP | 1″ / 1″ / 1″ | 14 GPM | Optional |
| 15,000 GPD | CQE-CO-02032 | 63″ × 39″ × 54″ | 8 | 1.5 HP | 1″ / 1″ / 1″ | 21 GPM | Optional |
| 20,000 GPD | CQE-CO-02033 | 63″ × 39″ × 54″ | 10 | 3 HP | 1″ / 1″ / 1″ | 28 GPM | Optional |
| 30,000 GPD | CQE-CO-02034 | 41″ × 143″ × 80″ | 14 | 3 HP | 2″ / 1.5″ / 1″ | 42 GPM | Optional |
| 40,000 GPD | CQE-CO-02035 | 41″ × 143″ × 80″ | 16 | 5 HP | 2″ / 1.5″ / 1″ | 56 GPM | Included |
| 50,000 GPD | CQE-CO-02036 | 41″ × 143″ × 80″ | 20 | 5 HP | 2″ / 1.5″ / 1.5″ | 70 GPM | Optional |
Standard features and controls
Built in
- Heavy-duty coated aluminum skid frame
- Stainless steel membrane housings with 4040 TFC membranes
- Centrifugal high-pressure pump
- 9″ × 48″ pre-treatment vessel: 0.5-micron zeolite and coconut shell GAC
- Feed and system pressure gauges; permeate and concentrate flow meters
- Feed and permeate TDS displays
- Cleaning (CIP) ports
- Low- and high-pressure shut-off switches, auto feed shut-off, flow control
C-150 controller automation
- Motorized actuated feed valve
- Delayed high-pressure pump start
- Automatic shut-down at tank full
- Low- and high-pressure fault shut-down
- Pre-treatment lockout (holds the RO off while softener or filters regenerate)
- Feed water flush at shut-down
- High-TDS alarm and shut-down
- Upgrades: C-200 controller with Ethernet, concentrate recirculation, auto flush
What happens after you order
We confirm your size, voltage and pre-treatment from your water analysis, then the system is built and tested in the USA and ships by freight. We coordinate delivery with your site, including lift-gate or dock requirements for the 30,000–50,000 GPD skids. Storage tanks, repressurization pumps, commercial softeners and remineralization can be quoted with the system.
Manuals and schematics
Documents
Dimensional schematics
Crystal Quest industrial systems carry the manufacturer's limited warranty plus Aqua Home Supply's warranty coverage. Questions on sizing, pre-treatment or installation? Call 800-374-2143 or request a quote. See all commercial water filtration systems.
