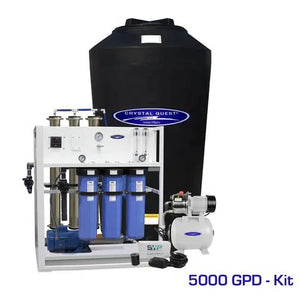

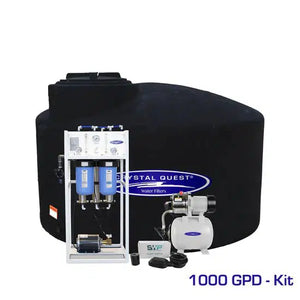

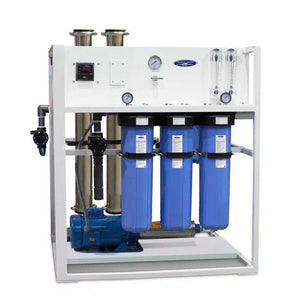

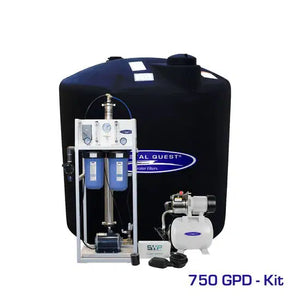

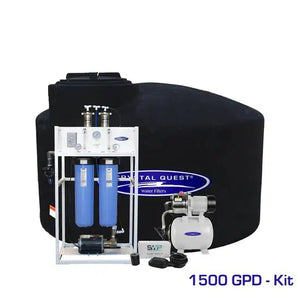

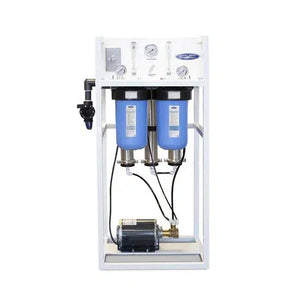

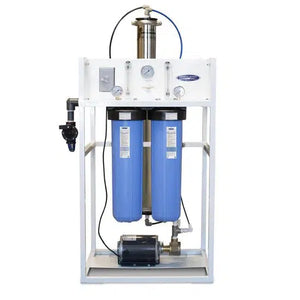

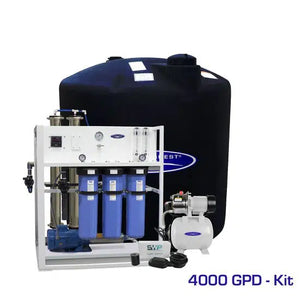

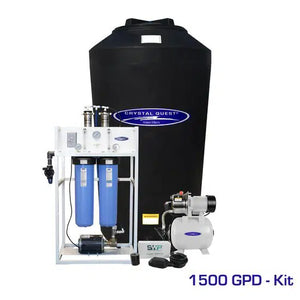

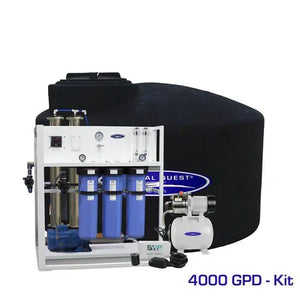

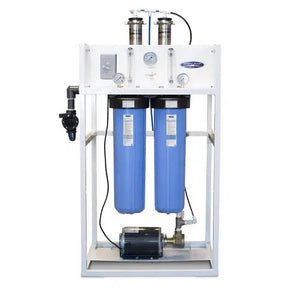

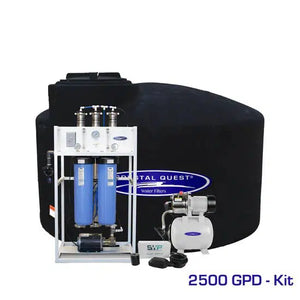

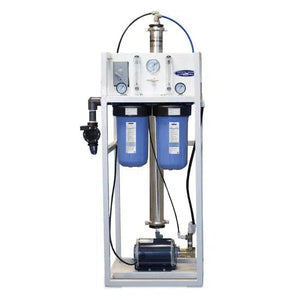

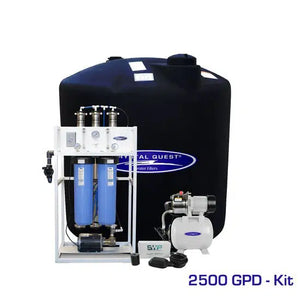

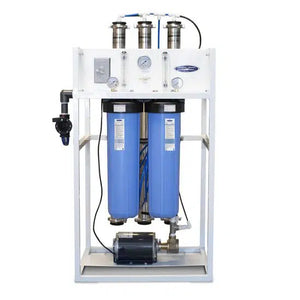

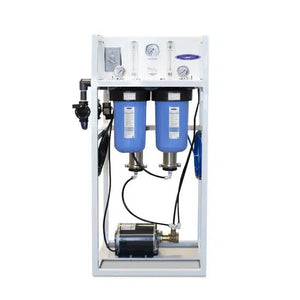

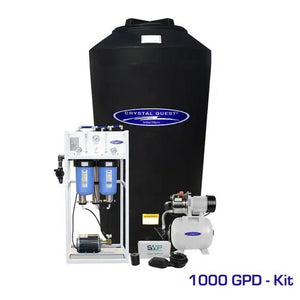

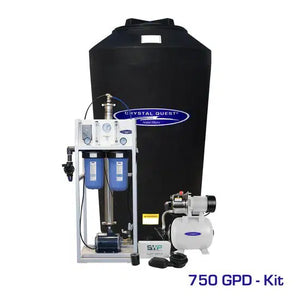

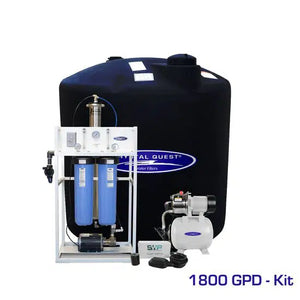

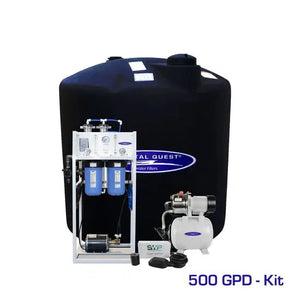

Crystal Quest Commercial Mid-Flow Reverse Osmosis System (500-7000 GPD)

Crystal Quest Commercial Mid-Flow Reverse Osmosis System – Efficient, Reliable, and Customizable



The Crystal Quest Commercial Mid-Flow Reverse Osmosis System is designed for efficient and reliable water purification. Built with high-quality materials and innovative technology, this system ensures that your water is clean and safe for use. It features a corrosion-resistant aluminum frame, lightweight construction, and a stainless steel membrane housing that maximizes impurity rejection and flow. The brass rotary vane high-pressure pump is engineered for continuous use, and it includes built-in protection against feedwater loss.

What Makes It Stand Out from the Competition?

The Crystal Quest Commercial Mid-Flow Reverse Osmosis System stands out due to its robust construction and versatile features. Its aluminum frame is both lightweight and corrosion-resistant, while the stainless steel membrane housing ensures maximum impurity rejection. The system also offers a range of upgrades, such as a stainless-steel rotary vane pump for increased resistance to high TDS feed water and corrosive materials. These enhancements make it suitable for a variety of commercial applications, ensuring long-lasting performance and reliability.

How Will This Solve Your Water Quality Problem?

This system provides a comprehensive solution for businesses and homeowners needing high-quality water purification. Whether you're running a restaurant, bar, or maintaining a household, the Crystal Quest Commercial Mid-Flow Reverse Osmosis System ensures you always have access to clean, safe water. Its automatic controls and low maintenance requirements mean you can focus on your business or home without worrying about water quality issues.

 Ready to experience top-tier water purification? Purchase the Crystal Quest Commercial Mid-Flow Reverse Osmosis System today and enjoy the benefits of clean, safe water with minimal maintenance. Don’t wait—enhance your business or home with this reliable and efficient system.

Crafted with precision, the Crystal Quest Reverse Osmosis Water System boasts a range of standard features to optimize performance:

✅ Robust Construction: Constructed from lightweight yet durable aluminum, powder-coated in white for corrosion resistance.

✅ Stainless Steel Membrane Housing: Equipped with a TFC membrane for maximum impurity rejection and high-flow efficiency.

✅ Brass Rotary Vane High-Pressure Pump: Engineered for continuous use with built-in protection against feedwater loss.

✅ High-Efficiency Carbonate Motor: Ensures reliable and energy-efficient operation.

✅ SWP 316 Stainless Steel Concentrate Valve: Allows precise control of permeate and concentrated water.

✅ SWP Flow Meter: Provides clear display of permeate and concentrated water flow.

✅ Pre-filter Pressure Gauge: Indicates when cartridge change is needed, ensuring optimal performance.

✅ Pump Pressure Gauge: Monitors pump pressure within the optimal range of 120 – 200 psi.

✅ Low-Pressure Switch: Automatically shuts off the system to prevent damage from dry running.

✅ High-Pressure Tank Switch: Turns off the system at predetermined storage tank pressure, eliminating the need for costly add-ons.

✅ Feed Solenoid Valve: Automatically controls feed water supply to the system.

✅ Push/Pull Fittings with Locking Safety Clips: Ensures secure connections and ease of maintenance.

Commercial Reverse Osmosis System Benefits:

✅ Space-Saving Design: Compact and efficiently designed to save valuable space.

✅ Easy Accessibility: Components are easily reachable for maintenance and servicing.

✅ Expandable and Lightweight: Designed for flexibility and portability, allowing for easy customization.

✅ Fully Equipped: Comes pre-plumbed, wired, and assembled for hassle-free installation.

✅ Low Operation and Maintenance Costs: Minimizes ongoing expenses while ensuring optimal performance.

✅ Factory Tested and Preserved: Guaranteed quality and reliability, backed by thorough testing.

✅ CE Compliant: Meets the highest industry standards for safety and performance.

✅ 1-Year Limited Warranty: Provides peace of mind, ensuring your investment is protected.

✅ Made in the USA: Manufactured with pride and precision in the United States.

Elevate your water purification standards with the Crystal Quest Commercial Reverse Osmosis System, the ultimate solution for pure, high-quality water, wherever you need it.

Commercial Reverse Osmosis System Upgrades:

Each Commercial Reverse Osmosis System includes a standard option with a wide range of features. Various options and upgrades are available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.

✅Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increases resistance to high TDS feed water and corrosive materials, such as dosing chemicals and antiscalants.

✅ Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery

✅ SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.

✅ SWP Digital TDS Controller: Allows for monitoring either feed TDS and Permanent TDS levels

✅ SWP Digital TDS/Conductivity Controller: Allows for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance IF Computer Controller with feed flush: Allows for pre-treatment lockout functionality, tank level input, features a convenient LED status display indicator for increase ease of use.

✅ S150 Computer Controller with Feed Flush: This allows for pre-treatment lockout functionality, and tank level input, and features a convenient LED status display and alarm function.

✅ Chemical Pump Outlet: Provide an integrated power source with the RO system for the connection of a chemical feed pump.

✅ Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.

✅ Permeate Sample Port: Allows for evaluation of individual membrane performance in an RO system and aids in system troubleshooting and maintenance.

✅ 240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.

✅ Single Wood Crate

Parts and Components:

Steps by Steps Installation Guide of Crystal Quest Commercial Mid-Flow Reverse Osmosis System (500-7000 GPD)

Thunder reverse osmosis systems must be securely mounted and placed on an even floor, so that the system will not
vibrate or move. If this occurs, place the system on a rubber mat to reduce the vibrations and movement.

Carefully inspect your system before start-up. Check that all plumbing and electrical connections are not loose or have not
come undone during shipment. A User’s Manual, Test Results, and Filter Housing Wrench will accompany your Thunder
reverse osmosis system

System Purging

NOTE: Leave the power to the system off for this procedure.

1. Redirect permeate water to the drain for this procedure.
2. Fully open the concentrate valve (Counter Clockwise).
3. Fully close the recycle valve (Clockwise) (If Applicable).
4. Fully close the bypass valve mounted on the RO pump.
5. Offset the position of the bypass white lever on the solenoid valve.
6. Turn the feed water on and let the system purge until no visible bubbles appear from concentrate flow meter

Initial Start-Up (After Purging)

1. Fully open concentrate valve (Counter Clockwise)
2. Fully close recycle valve (Clockwise)(lf Applicable)
3. Fully open bypass valve mounted on RO pump.
4. Return position of bypass white lever on the solenoid valve.
5. Turn RO system on and adjust bypass valve, concentrate (waste) valve #8 and recycle valve (If Applicable) to
 designed flow and pressure.
6. Inspect for leaks and after one hour shut down system. Re-direct permeate back to tank or POU and then turn system
 back on.
7. Record readings daily for a week and after a week record readings once a week.

Start-Up

Steps 1. Locate the 1” FNPT Solenoid Valve feed water inlet next to the filter housing.

Steps 2. Attach the inlet piping to the 2” FNPT Solenoid Valve feed water inlet. Always maintain a smooth and sufficient flow of feed water during operation.

Steps 3. Locate the 3/8” Tubing permeate outlet and attach the permeate tubing to the outlet. Make sure that the permeate
 water can flow freely and that there is no backpressure. Backpressure can cause damage to the membrane elements.

CAUTION: The plumbing in the permeate line can contaminate the high quality water produced by the system; ensure that the components are compatible with the application. The pH of the reverse osmosis permeate water will normally be 1-2 points lower than the feed water pH. A low pH can be very aggressive to some plumbing materials such as copper piping.

Steps  4. Locate the 3/8” Tubing concentrate outlet and attach the drain line to the concentrate outlet. Water must be allowed to run freely, without any restrictions or blockage in the drain line. Make sure that no backpressure exists on the concentrate  line.

Steps 5. Ensure that the electrical power requirements of the Thunder system match your electrical power supply.

Steps 6. Thunder systems are typically controlled with a liquid level switch in a storage tank. The liquid level switch turns the system on when the water level in the tank drops, and off when the tank is full. If your reverse osmosis system is  equipped with an electrical control box, the level control is connected to the level control connections in the control box, the level control connections are dry contacts and never apply power to these connections. Liquid level switches can be obtained by your local dealer or distributor. If a liquid level switch is to be used, install it at this time.

Steps 7. Follow any specified system projections supplied.

Steps 8. Locate the concentrate control valve and the concentrate pressure gauge.

Steps 9. Turn the pump bypass valve until the correct pump pressure is achieved. For example, a Thunder 2500 should be adjusted  until it produces about 2500 GPO or 1.73 GPM of permeate or product water at 77°F

 GPM = GPD/1440

 WARNING: Never exceed the maximum pressure rating of your pressure vessels
